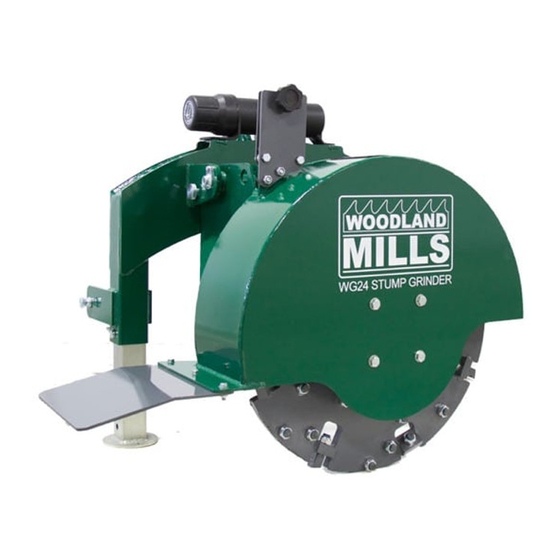

WG24 STUMP GRINDER
WG24
22-Nov-2016
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WG24 and is the answer not in the manual?

Questions and answers

Related Manuals for Woodland Mills WG24

Summary of Contents for Woodland Mills WG24

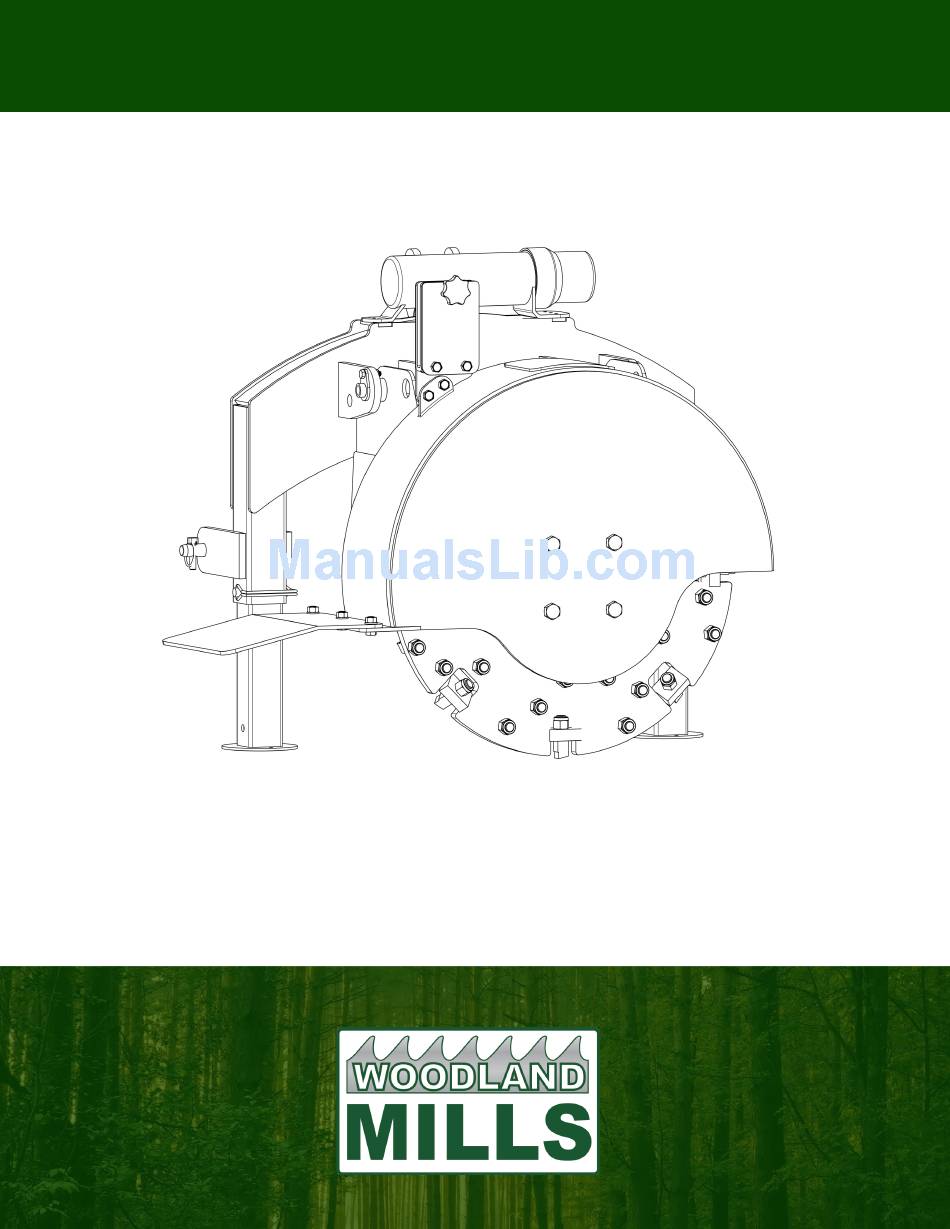

  • Page 1 WG24 STUMP GRINDER WG24 22-Nov-2016 OWNER’S MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ---------------------------------------------------------------------------------- 2 INTENDED USE ----------------------------------------------------------------------------------- 3 TECHNICAL SPECIFICATIONS -------------------------------------------------------------- 3 GENERAL SAFETY RULES ------------------------------------------------------------------- 4 PERSONAL SAFETY ---------------------------------------------------------------------------- 5 TOOL USE AND CARE -------------------------------------------------------------------------- 6 STUMP GRINDER ASSEMBLY --------------------------------------------------------------- 7 STUMP GRINDER SET-UP PROCEDURES ---------------------------------------------- 8 TRIMMING THE PTO SHAFT -------------------------------------------------------- 8 PTO SHAFT CLUTCH RUN IN ------------------------------------------------------ 9 EQUIPMENT OPERATION --------------------------------------------------------------------- 10...

  • Page 3: Introduction

    INTRODUCTION Congratulations on your purchase and welcome to Woodland Mills. This manual gives you the necessary information about your machine so you will be able to use it properly. The entire manual must be read and understood before you start using the machine. If any questions should arise that are not covered by this manual, please contact Woodland Mills.

  • Page 4: Intended Use

    INTENDED USE This stump grinder is designed for grinding stumps using a tractor PTO at 540 RPM. TECHNICAL SPECIFICATIONS Recommended HP 20 HP - 45 HP Cutting Wheel 24" (610mm) Number of Teeth Tooth Grade 8.8 Carbide Steel Bolt in Tooth Torque Specification 160 ft-lbs (215 Nm) Required PTO Speed...

  • Page 5: General Safety Rules

    GENERAL SAFETY RULES WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. WARNING! The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur.

  • Page 6: Personal Safety

    PERSONAL SAFETY Stay alert, watch what you are doing and use common sense when operating the machine. Do not use the machine while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating machines may result in serious personal injury. Dress properly.

  • Page 7: Tool Use And Care

    TOOL USE AND CARE Always be sure operator is familiar with proper safety precautions and operation techniques before using machine. Do not force the machine. Machines do a better and safer job when used in the manner for which they are designed. Storing the machine.

  • Page 8: Stump Grinder Assembly

    STUMP GRINDER ASSEMBLY Install the deflector plate using the 3 supplied nuts, bolts, and washers. 2. Install the manual tube using the 2 supplied bolts and washers.
 Page...

  • Page 9: Stump Grinder Set-Up Procedures

    STUMP GRINDER SET-UP PROCEDURES TRIMMING THE PTO SHAFT The stump grinder is shipped with a slip clutch PTO shaft that can be fitted to most tractors. The PTO shaft may need to be trimmed depending on your tractor and configuration. Follow the below steps to ensure that the PTO shaft is fitted to your tractor correctly.

  • Page 10: Pto Shaft Clutch Run In

    STUMP GRINDER SET-UP PROCEDURES PTO SHAFT CLUTCH RUN IN The stump grinder is shipped with a slip clutch PTO shaft. Follow the below steps before using your stump grinder to ensure that the PTO shaft clutch plates are set properly. Note that the slip clutch side of the PTO shaft should mount to the stump grinder.

  • Page 11: Equipment Operation

    EQUIPMENT OPERATION 1. Wear heavy-duty work gloves, ANSI-approved goggles behind a full face shield, and steel-toed work boots. 2. Securely attach the stump grinder to the tractors 3 point hitch system and install the PTO shaft. 3. Remove the stabilizer pin prior to operation. 4.

  • Page 12: Chainsaw Holder

    EQUIPMENT OPERATION 7. During use, it is important to never let the stump grinder sway beyond an angle that will allow the PTO shaft to come apart. Do not operate the stump grinder with less than 3” (75mm) of overlap between the two halves of the PTO shaft.

  • Page 13: Maintenance

    MAINTENANCE
 1. Proper and routine maintenance is critical to operator safety, achieving proper stump grinding results and in prolonging the life of the machine. 2. For cleaning and maintenance of the stump grinder, switch off the tractor PTO shaft and turn the engine off.

  • Page 14: Replacing Bearings

    REPLACING BEARINGS 1. Remove the 4 lock nuts from the bolts using an 18mm and 19mm socket or wrench on the front bearing only. 2. Slide the flywheel assembly forward and down. Page...
  • Page 15 3. Remove the lock nuts and bolts from the remaining bearing and slide the front bearing forward off the flywheel shaft. 4. Installation is the reverse of removal. Tighten the lock nuts to 65 ft-lbs (88 Nm). Page...

  • Page 16: Parts List

    PARTS LIST WG24 Stump Grinder Part List Back Frame Assembly Chainsaw Holder B Threaded Knob M10 x 45 Pan Head Bolt M5 x 20 Hex Bolt M10 x 35 Lock Washer Deflector Plate Manual Tube Hex Bolt M8 x 25...

  • Page 17: Part Diagrams

    DIAGRAM Page...

  • Page 18: Notes

    NOTES Page...
  • Page 19 NOTES Page...
