www.jbctools.com

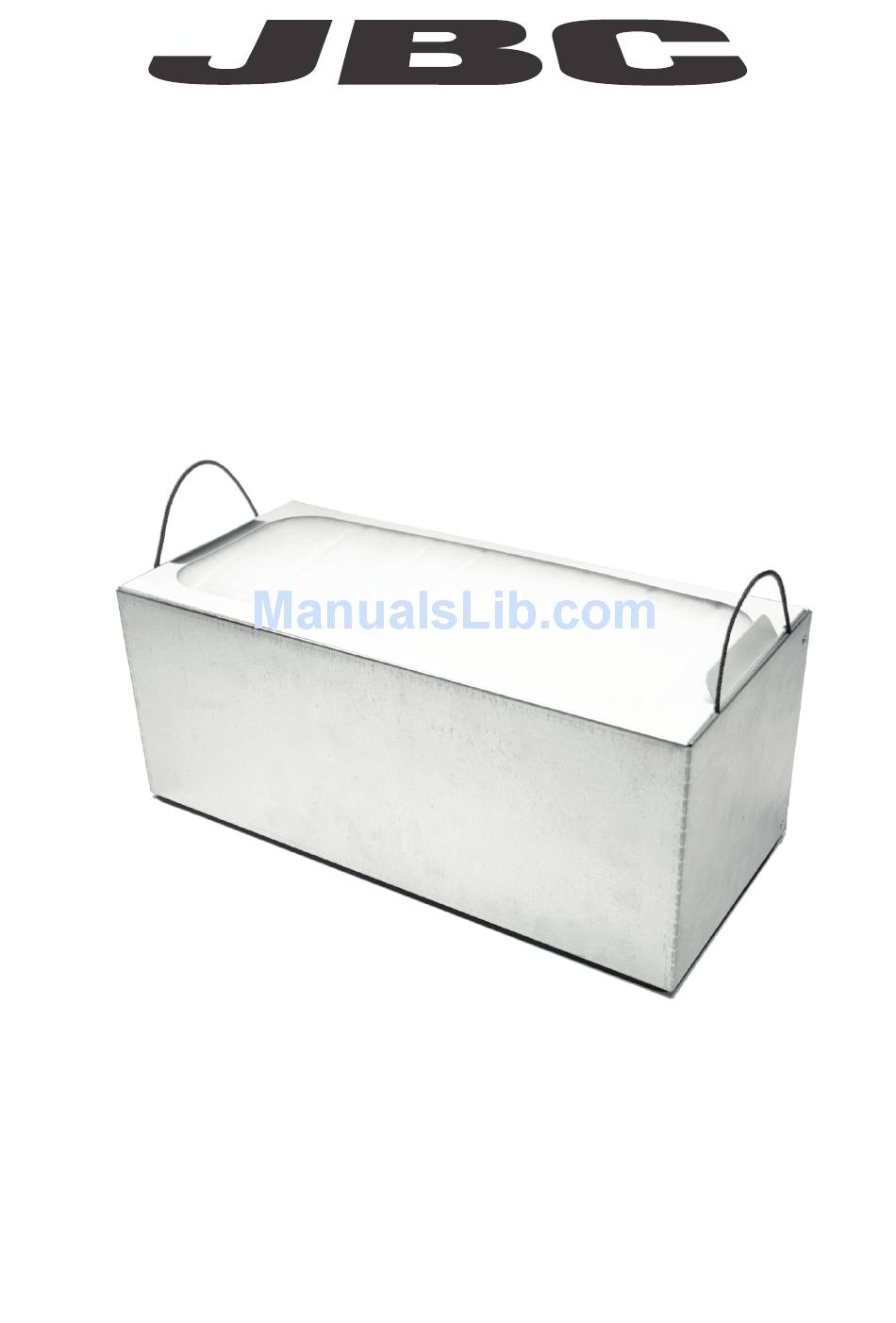

Compact Filter
Ref. FAE2-100

Advertisement

loading
Need help?

Need help?

Do you have a question about the FAE2-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc FAE2-100

Summary of Contents for jbc FAE2-100

  • Page 1 Compact Filter Ref. FAE2-100...

  • Page 2: Packing List

    Packing List The following items should be included: Manual ............1 unit Compact Filter ........... 1 unit Ref. FAE2-100 Ref. 0020107 (Includes pre filter and certificate) w w w.jbctools.com Compact Filter Ref. FAE2-100...
  • Page 3 Features Pre filter Ref. FAE2-110 Compact filter + Pre filter Ref. FAE2-100 Important: Before using, unseal the filter and remove the bottom protection of the compact filter. Fume Extractor Ref. FAE2-5A...
  • Page 4 Replacement - The unit notifies through both the display and the LED when filters need maintenance. - To replace the filters, first turn the fume extractor off. Then remove the cover by opening the side closures of the casing. - If once the pre-filter has been changed the saturation indicator is on, it means that the compact filter is already saturated and must be replaced too.

  • Page 5: Control Process

    w w w.jbctools.com Control Process Filter Menu F i l t e r Status Shows % of remaining life of M a i n m e n u 2 Reset HEPA + carbon filter set. It is also Exit displayed on the main screen. 1 Reset B a c k 2 Unit...
  • Page 6 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - The equipment is only designed to filtrate the fumes generated by soldering. - Do not use the units for the filtration of combustible, explosive or corrosive gasses. Incorrect use may cause fire.
  • Page 7 w w w.jbctools.com Notes...

  • Page 8: Specifications

    Activated carbon filter Complies with CE standards. ESD protected. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
