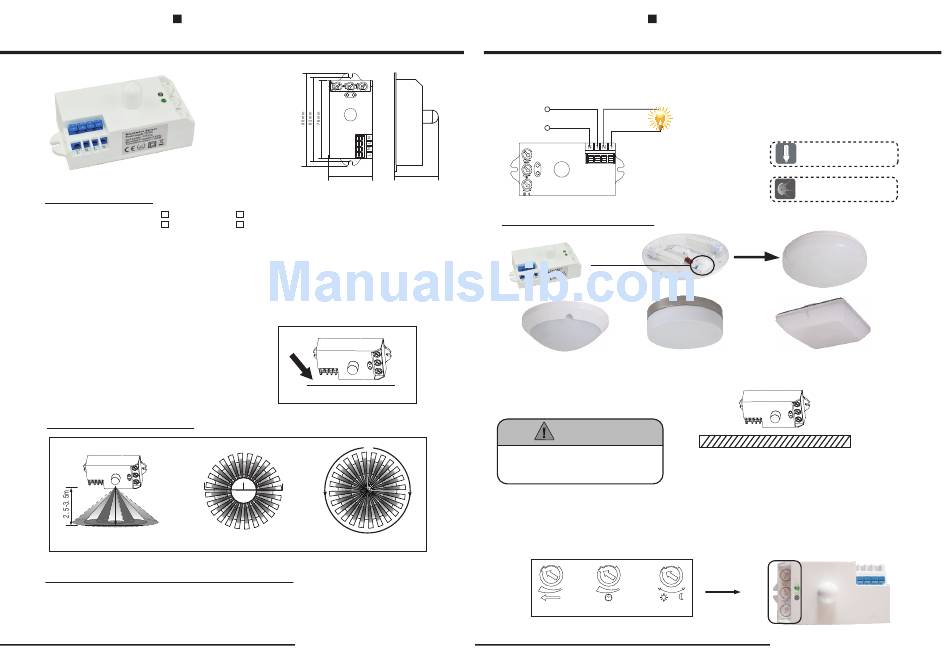

SHARKWARD Sk601A Instructions

Microwave Sensor

SPECIFICATIONS

Power source: 12V/DC 24V/DC
110-130V/AC 220-240V/AC
Power frequency: 50/60Hz
Transmission power: <0.2mW
Rated load:
1000W/5A,Max,tungsten(cosφ=1)(220-240V/AC)
300W/2.5A,Max,fluorescent(cosφ=0.5)(220-240V/AC)
600W/5A,Max,tungsten(cosφ=1)(100-130V/AC)
150W/2.5A,Max,fluorescent(cosφ=0.5)(100-130V/AC)
NOTE:
the high-frequency output of this sensor
th
is <0.2mW- that is just one 5000 of the transmission
power of a mobile phone or the output of a microwave
oven.

SENSOR INFORMATION

Max:8m
(Height of installation2.5M)
Sensing distance adjustment range
Height of installation2.5~3.5M

UTILIZING FIELD AND INTRODUCTION

SK601A is a moving object sensor that can detect range of 360°and it's working frequency is 5.8G.
The advantage of this product is stable working state (stable working temperature: -15°C~+70°C), SK601A
adopts a microwave sensor (high-frequency output <0.2mW), so that it is safe and performs better than
infrared sensor.
SK601A instruction
41.5 mm
39.0 mm
Installation site:Indoors, ceiling mounting
HF system:5.8GHz CW radar, ISM band
Reach: 1-8m(radii.) adjustable
Time setting:10 sec. to 12min.
Light contro:10~2000Lux
Power consumption:approx.0.9W
Transmission power ： <10mW
Detection angle:360°
Working temperature:-15°C~+70°C
Transmission power<0.2mW
360
Min:1m Min:1m Max:8m
Sensing angle adjustment range
-1-
Microwave Sensor
It can be installed inside of product that is made of glass and plastic because that these materials make little
effect to microwave. Connect the product as shows below: you can change a common light to an automatic
light.
L N
Power
N
L'
Connect N, L with power;
Connect N, L' with load.
UTILIZED IN CEILING LIGHT
This product can be utilized in more fields than the above examples.
You can also install a SK601A in the ceiling directly to control an aisle. There is no problem.

Warning!

The product can not work normally if there is
metal material behind the Installed place.
This product will be faithfully waiting for you. It will turn on the light automatically when you pass by, and
turn off the light automatically when you leave off. You can set the closing delay time to meet your needs.
For example, you may adjust the TIME knob to select the delay time 12min when you think you will come
back in 10mins. The TIME knob is as follow (Keep away from the detecting zone after adjusting the testing
time or that the detecting time will be inaccurate when any moving object is detected again by the product).
SENS LUX
TIME
SK601A instruction

Electrical load

The intelligent lighting system
Security alarming system
Non-metal material
When the sensor is installed inside the ceiling floor,
the sensitivity to light will be invalid.
-2-
