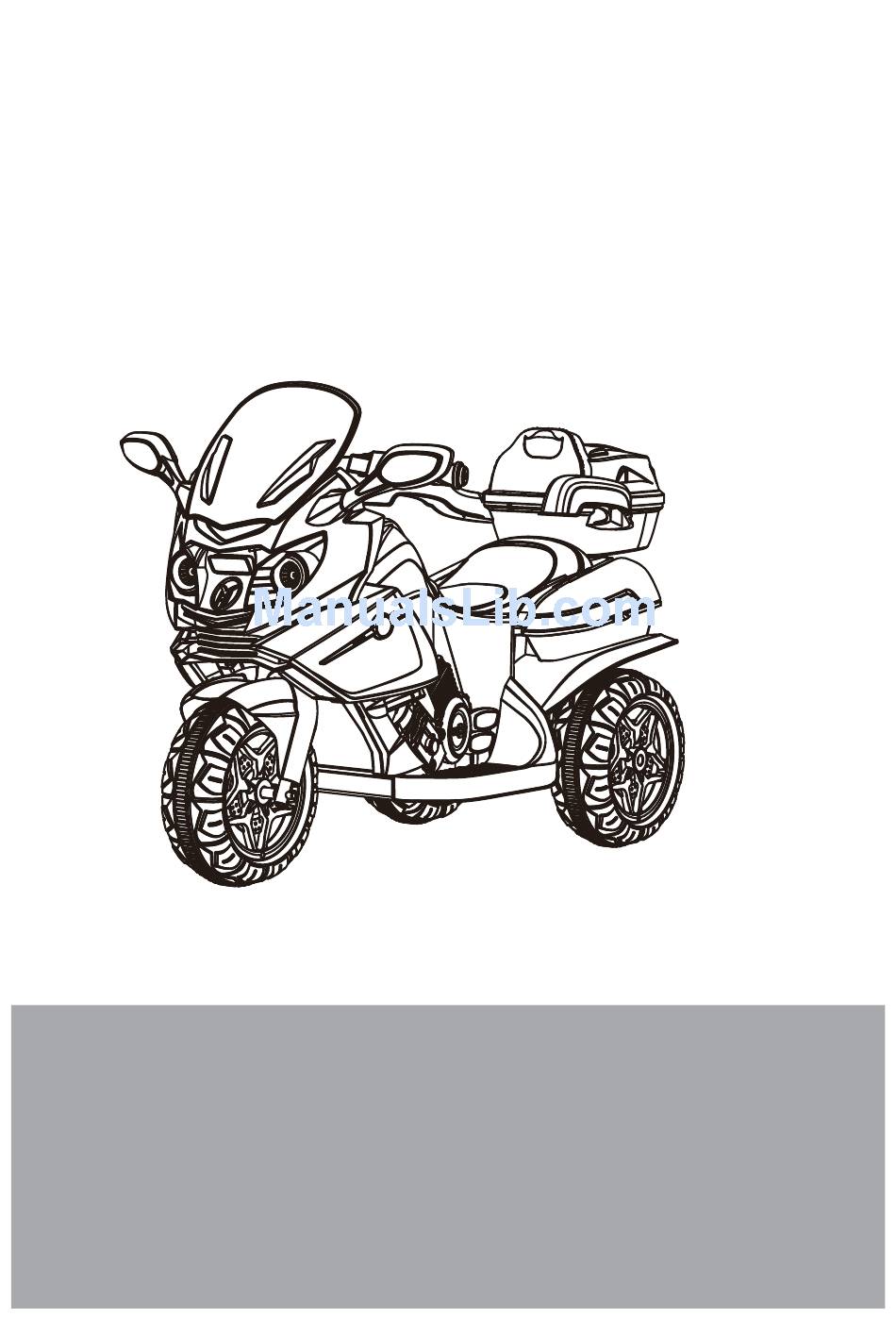

ELECTRONIC TOY CAR
OWNER'S MANUAL
Read and understand this entire manual before using!
Please keep this manual for future reference as it contains important
information.
Before first time use, charge the battery for at least 8-12 hours.
CHILDREN'S
• Suitable for 37~96 months
• Maximum user weight: 30kg
• Adult assembly required

Advertisement

loading
Need help?

Need help?

Do you have a question about the JT-188 and is the answer not in the manual?

Questions and answers

Summary of Contents for Joy Automatic JT-188

  • Page 1 CHILDREN’S ELECTRONIC TOY CAR • Suitable for 37~96 months • Maximum user weight: 30kg • Adult assembly required OWNER’S MANUAL Read and understand this entire manual before using! Please keep this manual for future reference as it contains important information. Before first time use, charge the battery for at least 8-12 hours.
  • Page 2 On the purchase of your new Ride-On. This ride-on car will provide your child with many miles of riding of enjoyment. To help assure you and your rider a safe ride we ask you to please read this manual carefully, and keep it for future reference. Follow the recommendations in this manual, they are designed to improve the safety and operation of your ride-on car and it’s rider.
  • Page 3 Parts Diagram...
  • Page 4 Assembly • CHOKING HAZARD! Not suitable for children under 36 months. WARNING: • ADULT ASSEMBLY REQUIRED. Turn the vehicle body upside down. 1. Insert the rear axle into the hole in the vehicle body. 2. Fit the front fender to the front wheel.
  • Page 5 Assembly 1. Fit the gear box onto the rear axle from the Left Side. 2. Slide a wheel onto the rear axle. and make the wheel match with the bushing. 3. Slide another bushing, and make it match with the wheel also. 4.
  • Page 6 Assembly 1. Fit the gear box onto the rear axle from the Left Side. 2. Slide a wheel onto the rear axle. and make the wheel match with the bushing. 3. Slide another bushing, and make it match with the wheel also. 4.
  • Page 7 Assembly Turn the vehicle body on its side. 1. Insert the front wheel assembly into the hole in the vehicle body. 2. procedure 2 only for the vehicle with the remote control function. Line up the lower hole in the steering column with the hole in the steering gear box, insert the M5x25 machine screw and tighten a Ø5 nut on the opposite to secure the steering wheel to the steering column.
  • Page 8 Assembly 1. Fit the vehicle board vehicle body board① to the vehicle body, 2. Tighten ten Ø4x18 screws to secure the vehicle body board① to the vehicle body. 1. Fit the vehicle board vehicle body board② to the vehicle body, 2.
  • Page 9 Assembly 1. Turn the toolbox cover downside up. Fit the toolbox connector to the toolbox cover. 2 .Insert the15mm steel wire to secure the toolbox connector the toolbox cover. Repeat the other side. Assemble the toolbox with armrest Assemble the toolbox without armrest 3.
  • Page 10 Assembly Turn the vehicle body upright. 1. Keep the toolbox opening, and fit it the vehicle body. Ø4x12 screw to secure the 2. Using four toolbox to the vehicle body with a screwdriver.
  • Page 11 Assembly Turn the vehicle body upright. 1. Insert the four connectors into each other. 2. Fit the faceguard to the vehicle body, and Ø4x8 screws. secure it with two...
  • Page 12 Assembly 1. Insert the tabs in the mirror into the hole in the faceguard, and push it until you hear it “snap” into place. Repeat the same procedure for the remaining mirror.
  • Page 13 Assembly Fuse box Battery Motor Connector 1. Plug the Motor connector into connector in the vehicle body. 2. Plug the connector on the battery into the connecotr on the fuse box. Fuse box Battery 3. Plug the Motor connectors into vehicle connectors. 4.
  • Page 14 Assembly 1. Fit the tabs of the seat into the slots in the vehicle body. Ø4x12 screws with a screwdriver to secure it to the vehicle body 2. Fasten a...

  • Page 15: On/Off Switch

    Use Your New Vehicle 1. Power Switch: Turns the vehicle on and off. 2. Shift Lever: Changes the direction the vehicle moves from forward to reverse. 3. Sounds buttons: Press for sounds playing. 4. Volume knob (OPTIONAL): Turn the knob clockwise to increase the volume; Turn the knob counterclockwise to decrease the volume.
  • Page 16 Charging • The POWER SWITCH must be turned in OFF position when charging. • Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery for more than 10 hours to avoid overheating the charger. •...
