- Page 1 Flexy Installation Guide Single Ethernet Ext. Card IG 017 / Rev. 1.2 FLX3101 This installation guide explains how to install the eWON Flexy Single Ethernet Extension Card FLX 3101. support.ewon.biz...
-
Page 2: Table Of Contents
3.2.2. Part Number Structure for Extension Cards ..............8 3.3. Front Panel LEDs ..........................8 3.4. Ethernet Port Specifications ......................9 3.5. eWON Flexy Extension Cards Environmental Conditions ............9 3.6. Plugging the Extension Card into the Base Unit ................ 9 3.6.1. Base Unit Slot Compatibility ....................9 3.6.2. -
Page 3: Product Summary
FLX 3101 of the eWON Flexy family. The eWON Flexy family is a range of modular industrial gateway/router. As the name eWON Flexy suggests, it has been designed to enable numerous different combinations of Extension Cards and Base Units. The present Installation Guide is focusing on an extension card which, as such, needs to be inserted in one of the Base Units in order to work. -
Page 4: Safety, Environmental & Regulatory Information
The Extension Card described in the present Installation Guide is in conformity with the following safety standards: • IEC/EN 60950-1 • UL 60950-1 • CSA-C22.2 No 60950-1-07 Page 4 / 15 eWON Flexy Single Ethernet Ext. Card FLX3101 | IG 017... -
Page 5: Fcc Compliance
The Extension Card described in the present Installation Guide has been certified by authorized bodies: • UL Certificate Of Compliance (COC) # E350576 • CB certificate # DK-29479-M1-UL These certificates can be downloaded as PDF files on the eWON Support web site: http://ewon.biz/support/docs/flexy Page 5 / 15 eWON Flexy... -
Page 6: Hardware Description

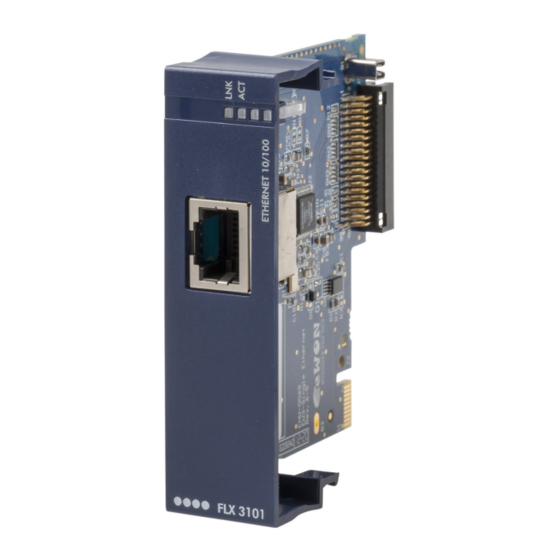

Chapter 3 Hardware Description 3. Hardware Description 3.1. Mechanical Layout and Interfaces Ethernet Port Connector RJ45 - 10/100 Base-T Back-plane connector Page 6 / 15 eWON Flexy Single Ethernet Ext. Card FLX3101 | IG 017... -
Page 7: Extension Card Label
2233 = Year Week 0001 = sequential mfg order = product type MAC-Address of the Ethernet card CE, UL,... certificate number and logos Marks if applicable. Page 7 / 15 eWON Flexy Single Ethernet Ext. Card FLX3101 | IG 017... -
Page 8: Part Number Structure For Extension Cards
3.3. Front Panel LEDs Item Mark Function Picture Link ETH 10/100 present + Speed indication Green = 100 Mbps Amber = 10 Mbps Flashing Green Packets transfer activity Page 8 / 15 eWON Flexy Single Ethernet Ext. Card FLX3101 | IG 017... -
Page 9: Ethernet Port Specifications
The B slots are the two last slots. Some cards fit in A and B slots. Some not. Cards that fit only one type of slot have a mechanical mistake-proof security. Page 9 / 15 eWON Flexy Single Ethernet Ext. Card FLX3101 | IG 017... -
Page 10: Extension Card Insertion
Remove the slot filler of the location where you want to insert the new card. To do this, press on both ends of the cover, note that the hooks (1) are out-centered like shown on the pictures. Page 10 / 15 eWON Flexy Single Ethernet Ext. Card FLX3101 | IG 017... -
Page 11: Multiple Ethernet Extension Cards
3.6.3. Multiple Ethernet Extension Cards The eWON Flexy firmware supports up to one Ethernet Extension Card of type FLX 3101. The boot process of the Base Unit includes an automated detection of the inserted Extension Cards. This detection is done sequentially, slot per slot starting from the left to right.. -
Page 12: Power Requirements
Hardware Description 3.6.4. Power Requirements The internal power converter of the eWON Flexy Base units has been dimensioned to cover a broad range of different combinations of Extension Cards. Users should make sure the total power demand of the Extension Cards does not exceed the capabilities of the Base Unit. -
Page 13: Powering On The Base Unit With Its Extension Cards
If the boot process completes normally, you should observe the following LED status • Base Unit flashing green slowly OFF (the ETH connection is disabled by default) • Extension Card Page 13 / 15 eWON Flexy Single Ethernet Ext. Card FLX3101 | IG 017... -
Page 14: Check Card Detection On The Embedded Web Page
Connect the PC to one of the LAN port of the eWON Flexy. Open your Internet browser and access the eWON Flexy internal Web page by entering the LAN IP address in the URL field (the default address is http://10.0.0.53). -
Page 15: Revision
Note concerning the warranty and the rights of ownership: The information contained in this document is subject to modification without notice. Check http://wiki.ewon.biz for the latest documents releases. The vendor and the authors of this manual are not liable for the errors it may contain, nor for their eventual consequences.
