Quick Start Guide
Industrial 5-Port 10/100Mbps Management
Ethernet Switch
MODEL GC-ATC-405
Note: These instructions are for a typical installation.
Refer to the long form installation and management
guides found from CD details.
1.
The GC-ATC-405 is shipped with the following
items.
If any of these items is missing or damaged, please
contact your customer service representative for
assistance.
■ ■ ■ ■ GC-ATC-405 Ethernet Switch.
■ ■ ■ ■ Quick Start Guide
■ ■ ■ ■ CD-ROM with User's Manual and Windows
Utility.
■ ■ ■ ■ Panel Mounting Kit.

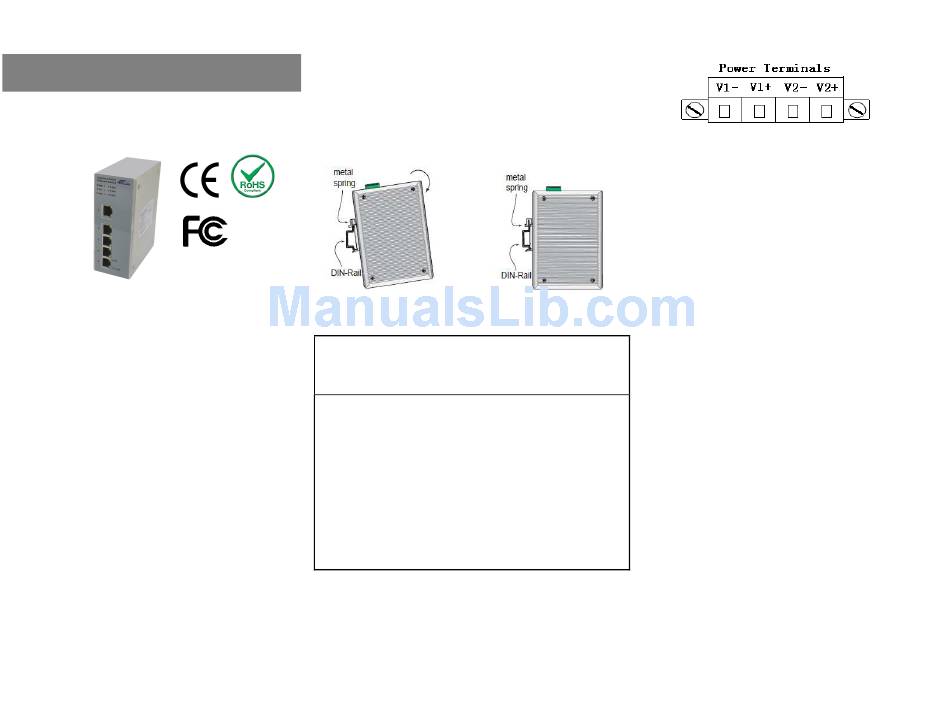

2. Install the switch to your DIN rail as shown in the
diagram below. First, hook the top of the DIN rail clip
to the rail. Then push the bottom of the switch
towards the rail until it locks into place. Refer to the
Hardware Installation Guide.
3. Apply power to the switch per the instructions
following the warnings below.
All power, input and output (I/O) wiring must be in
accordance with Class I, Division 2 wiring methods
and in accordance with the authority having
jurisdiction.
WARNING – EXPLOSION HAZARD – SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2.
WARNING – EXPLOSION HAZARD – WHEN IN HAZARD
OUS LOCATIONS, DISCONNECT POWER BEFORE
REPLACING OR WIRING UNITS.
WARNING – EXPLOSION HAZARD – DO NOT
1Pcs
DISCONNECT
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF
OR THE AREA IS KNOWN TO BE NONHAZARDOUS.
1Pcs
WARNING – EXPLOSION HAZARD – IN HAZARDOUS OR
POTENTIALLY HAZARDOUS LOCATIONS, DO NOT
SEPARATE ANY PART OF THE UNIT WHEN ENERGIZED.
USE THE UNIT FOR INTERNAL CONNECTIONS ONLY.
The switch will have a removable screw terminal
1Pcs
plug (green) as shown in the diagram. The function
1Pcs of each position will be indicated on a label adjacent
to the plug and/or on the side of the switch.
Step 1: Insert the negative/positive DC wires into the
V-/V+ terminals.
Step 2: To keep the DC wires from pulling loose,
use a small flat-blade screwdriver to tighten the
wire-clamp screws on the front of the terminal block
connector.
STEP 3: Insert the plastic terminal block connector
prongs into the terminal block receptor, which is
located on the EDS's bottom panel.
STEP 4: Turn on your source power and verify that
the power LED(s) are on.
4. Plug in your Ethernet cables and the switch will
immediately start to operate and pass data.
5. Now you may configure the switch for more
advanced operations. See below for further
information.
Unmanaged Switches (GC-ATC-405U): No
configuration is available or necessary.
Managed Switches (GC-ATC-405):
To set the IP address so that you can manage the
switch via the web interface:
A. Connect the switch directly to your PC's Ethernet
port using any Ethernet patch cable. The switch's
default IP is 192.168.2.1.
B. On your PC, go to Control Panel – Network
Connections and access the properties for your
LAN's Internet Protocol (TCP/IP). Record your
current settings, then select "Use this IP address"
