Summary of Contents for Action ACN-3560C

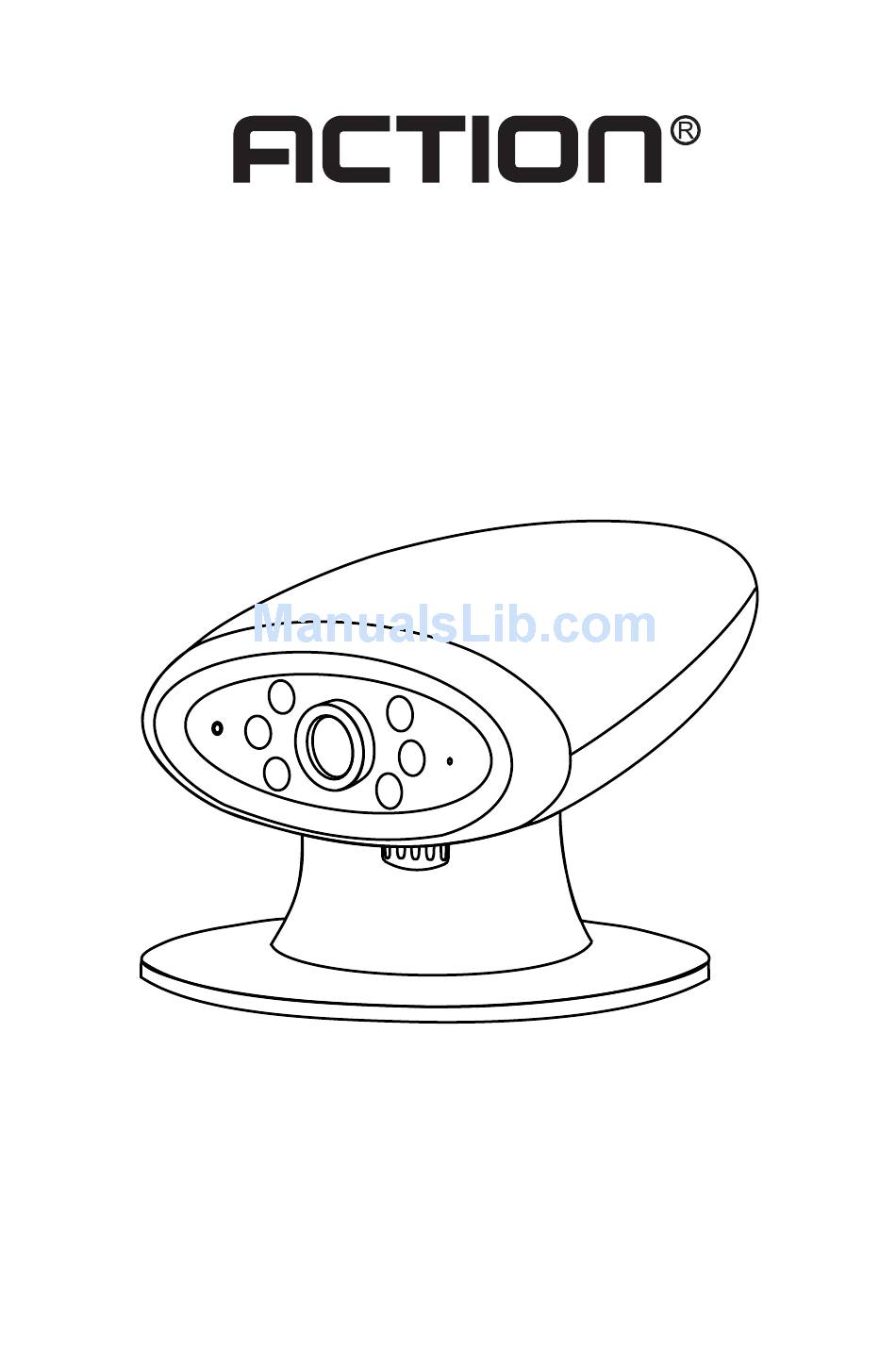

- Page 1 ACN-3560C 2.4GHz Wireless Mono Camera Instruction Manual...
- Page 2 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SER- VICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to tell the user that parts inside the product present a risk or electric shock to persons.
- Page 3 NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the User’s au- thority to operate the equipment. TABLE CONTENTS Introduction Precautions C £® £® £®Contents £® £®...
- Page 4 Introduction Thanks for choosing this 2.4GHz wireless camera. This system is designed for transmitting 2.4GHz audio/video signals from the camera or connected signal source, to the B/W monitor wirelessly. The camera can be placed anywhere in the home, Baby room, or office etc. up to 100 feet from the receiving B/W monitor.
- Page 5 C. Contents (1)Transmitter with built-in Camera (1)Mounting base (1)AC Adapter (1)A/V Cable Controls/Jacks/Indicators (Figures 1 & 2) Camera Lens Infrared LEDs Power LED indicator Microphone Channel selector Switch AV Input Jack DC 12V Input Jack Power On/Off Switch Mounting Thumb Screw 10.
- Page 6 FIG. 2 BACK VIEW FIG. 3 BOTTOM VIEW...
- Page 7 Installation Attach the bottom of the camera to the mounting base using the provided thumbscrew (Fig.3). Select the lo- cation for the camera (transmitter) NOTE: The location must be within 100 feet of the monitor (receiver) Place the camera in your selected location. You can attach the camera to walls or other flat surfaces by the use of screws (two holes provided, screws not included), double sided tape or fastening method.
-
Page 8: Operational Description
Block Diagram Operational Description XMC-151/ACN-3560C wireless transmitter module intended for in 2.4GHz wireless A/V signal Sender and Receive set as RF output modulator, which converts the FM video and au- dio signal into the RF signal for TV or Monitor. This device have a built–in antenna but without ground system. - Page 9 J. Specifications: Video System NTSC Transmitter Frequency 2.4~2.83GHz Max Range 300 feet Transmitter Antenna Directional Transmitter Sensitivity 0dBm FCC Picture of Color Optical Size 1/3” Effective Pixels 320 X 240 Auto Exposure 1/60~1/6000 second Camera Correction Auto Backlight Compensation Auto Indoor/ Outdoor Indoor Only Mic Sensitivity...
- Page 10 NOTE: This equipment has been tested and found to com- ply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 11 AMERICA ACTION INC. Warrants this product against defects in material or workmanship as follows: For a period of 90 days from the date of purchase. ACTION will pay the labor charges to repair the defective product. After this 90 day period, you must pay for all labor charges.
- Page 12 REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. ACTION SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY...
