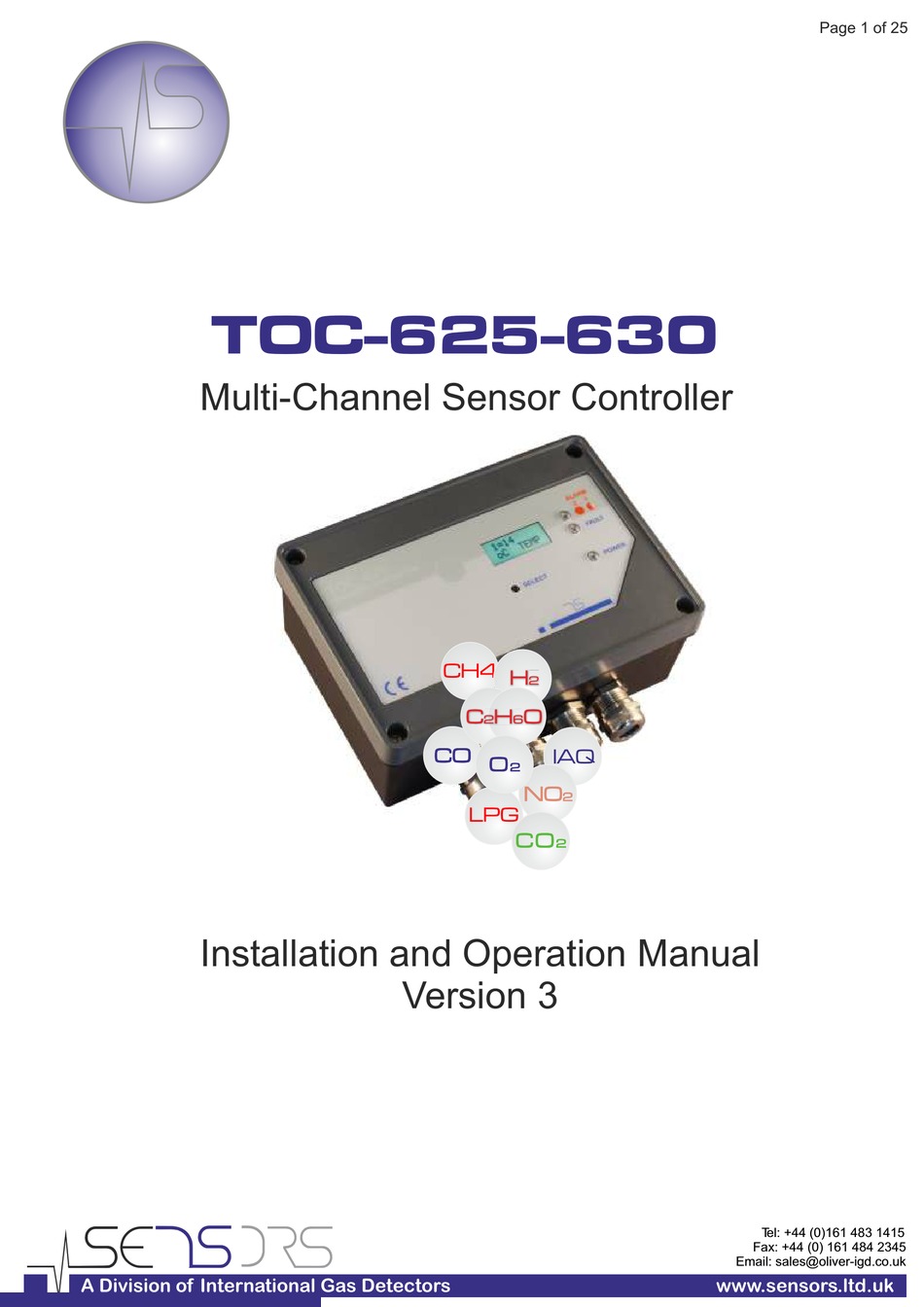

TOC-625-630

Multi-Channel Sensor Controller

CH4

IAQ

LPG

Installation and Operation Manual

Version 3

T el: +44 (0)161 483 1415

Fax: +44 (0) 161 484 2345

Email: sales@oliver-igd.co.uk

A Division of International Gas Detectors

www.sensors.ltd.uk

Table of Contents

Need help?

Do you have a question about the TOC-625 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sensors TOC-625

Page 1 Page 1 of 25 TOC-625-630 Multi-Channel Sensor Controller Installation and Operation Manual Version 3 T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 2: Table Of Contents
Calibration gases and test equipment is available from Sensors. T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk...
Page 3 Name Andrew J Collier M.I.O.D Position: Managing Director Date: 5.October 2011 Declaration Ref: TOC-625-DEC-1 T el: +44 (0)161 483 1415 T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk Email: sales@oliver-igd.co.uk...
Page 4: Version
4 HOLES DIA 20mm TOC-625 and houses batteries and charge control. It is usually mounted below the TOC-625 and is supplied with all required connectors. PANEL CUT OUT T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk...
Page 5: Main Electrical Connection Points
When installing ensure you have the full manual available. This page is also supplied inside the TOC-625 enclosure as a quick reference for site engineers. If you do not have the full manual a copy is available on the Sensors website at www.sensors.ltd.uk...
Page 6: Controller Overview
Software Version Software checksum and date Connected sensor info Finally a countdown starts to enable connected sensors to stabilise prior to normal operation. T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors...
Page 7 Once fully installed the TOC-625 controller will continuously monitor connected gas detectors and sensors and compare current values with any set alarm thresholds. The display will cycle to display each channel in turn. Normally the backlight will be switched off.
Page 8 Release button to select and enter (in this case) the password. PASSWORD cancel Release button to select and cancel the action. PASSWORD T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 9: Menu Overview
Page 9 of 25 Toc-625 Menu Overview á PASSWORD Engineer Menu Options User Menu Options Provides access for Provides access for control panel set up and maintenance functions diagnostic functions Use this option to Use this option to find zero...
Page 10: Putting Into Service
It is recommended to follow the set up sequence below when configuring and installing a control panel from new. Follow the cable commissioning procedure T625-700-920.PDF if you don't have a copy of this download it from www.sensors.ltd.uk Perform a sensor FIND and automatically install detector data. Engineers Menu ..Find Option...
Page 11 Note that certain detector 600s types, Oxygen sensors in particular may take up to 2 hours to fully stabilise. During the warm up period check that each connected detector or device has power and communication.
Page 12: Supplied Set Up
Normal Operation In normal operation mode the TOC-625 communicates to each detector or node in turn and displays the data on screen. In normal mode the back light will switch off. Pressing the button once will activate the back light, each button press then cycles the display through each channel.
Page 13 Analogue Which analogue output relates to this channel. Output Note there are three analogue outputs available on the TOC-625 Channel If the control panel has been shipped pre-configured then once correctly connected the system will be operational. The controller should correctly cycle through each channel with no indicated errors.
Page 14: Relay Connections
Page 14 of 25 Relay Connection As standard the TOC-625 controller is equipped with two relay outputs. The function of these two relay outputs can be user configured and is discussed in a later section. The relays are rated to operate 4A non inductive loads.
Page 15 Page 15 of 25 Analogue Outputs (Voltage) If requested at the time of ordering the TOC-625 can be supplied with its analogue outputs re- configured as 0-10V DC. The following diagrams indicate the connections 0-10V Analogue Output Interfaces +24V DC...
Page 16: Adding Detectors Or Nodes
Leave all interfaces unplugged and check installation cabling terminations following IGD publication ref “Cable checks T625-700-920.PDF”. Check the shipping TOC-625 SET UP REPORT to check how the controller and interfacing detectors and nodes have been configured. Ensure that the detector addresses match the document.
Page 17: The Find Command
1. Perform a complete new set up 2. Add or remove detectors from a system 3. Change the type of sensors connected to a system Then presuming the system is correctly installed and cabled the process would be as follows: 1.
Page 18 (installed). Then the alarm levels can be set in the following manner. From the TOC-625 SET UP REPORT it can be seen that each connected and installed detector or channel can have two alarm levels set. These can be different for each device. For example a two channel system for Methane and Carbon Monoxide may have Alarm 1 level for Methane at 20% LEL and Alarm 1 level for Carbon Monoxide set at 35ppm.
Page 19 Select to exit the sequence without making test changes T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 20: Alarm Relay
Alarm O/P Off Re-Set Input On Re-Set Input Off Indicates pressing the front panel ‘jog wheel’ to cancel the alarm T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 21 To view alarm level 2 settings go back and select ALARM2 option. Note you only view the summary one channel at a time. ALARM2 04 OF 08 SUMMARY click to 01=L20 áL T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 22: Calibrations
4-20mA Output Calibration and Test The TOC-625 is equipped with three 4-20mA analogue outputs. By default these are configured so that output 1 relates to input channel 1, output 2 is input channel 2 and output 3 is input channel 3. The TOC- 625 is shipped with these channels pre-calibrated.
Page 23 0V DC mA Sig 1 mA Sig 2 For best results fit a 220 mA Sig 3 Ohm resistor in series TOC-625 Analogue Outputs 4-20mA Cal Zero Function From the menu previously described select the CAL option. click to The display now shows the current á...
Page 24: Detector Zero Function
The reading should be stable. Click the button to return to the previous menu. CLICK TO Repeat the sequence if you are not within +/-2% of zero. T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 25 Click the button to return to the previous menu. Repeat this sequence if you are not within +/-2% of the gas bottle value. T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 26 Additional Information for TOC-630 Versions with GSM Module T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 27 Introduction When equipped with a GSM module the TOC-625 becomes a TOC-630. In this mode of operation the TOC-630 operates in a different manner. As a TOC-630 the controller: Accepts a pulse input from a gas meter and has additional software functions to provide, totalised...
Page 28 T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 29 0V DC external AC loads typical device Farnell Ref 1438460 (0.22uF 47R X1) Normally Closed Common Normally Open Supplied Pre-Wired T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 30 Indicates the initial gas meter reading on installation. 9 of 15 INITIAL READING DATE=11.10.2010 Indicates the date of the initial meter reading. 10 of 15 T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 31 SENDING PASSED Sub Menu test test done test cancel test Release the button when the desired option is displayed T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 32 Indicates the last eight digits of the SIM card number L225 E=0 Press and hold after the last menu item until prompted to return to the main menu. T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
Page 33 After running FIX on a channel its calibration should be re- checked with a known calibration gas. T el: +44 (0)161 483 1415 Fax: +44 (0) 161 484 2345 Email: sales@oliver-igd.co.uk A Division of International Gas Detectors www.sensors.ltd.uk...
