TP-Link Archer C8 Quick Installation Manual

Quick Installation Guide

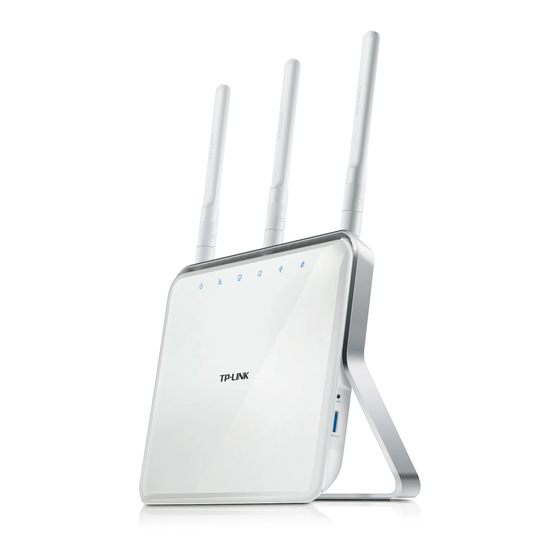

AC1750 Wireless Dual Band Gigabit Router
7106505606 REV2.0.0
Connect the Hardware
If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the Ethernet
cable directly to the router's Internet port, then follow steps 5 and 6 to
complete the hardware connection.
Internet
Power adapter Modem
1
Install the antennas.
Router
2
Turn off the modem,
and remove the backup
battery if it has one.
3
Connect the modem to the
Internet port on your router
with an Ethernet cable.
4
Turn on the modem, and
then wait about 2 minutes
for it to restart.
Power adapter
5
Turn on the router.
6
Verify that the following LEDs are
on and solid before continuing
with the configuration.
Power 2.4G/5G Internet
On On
On
Note: If the 2.4G/5G LED are off, please press
the WiFi button on the side panel for 2
seconds and check the LEDs again a few
seconds later.
