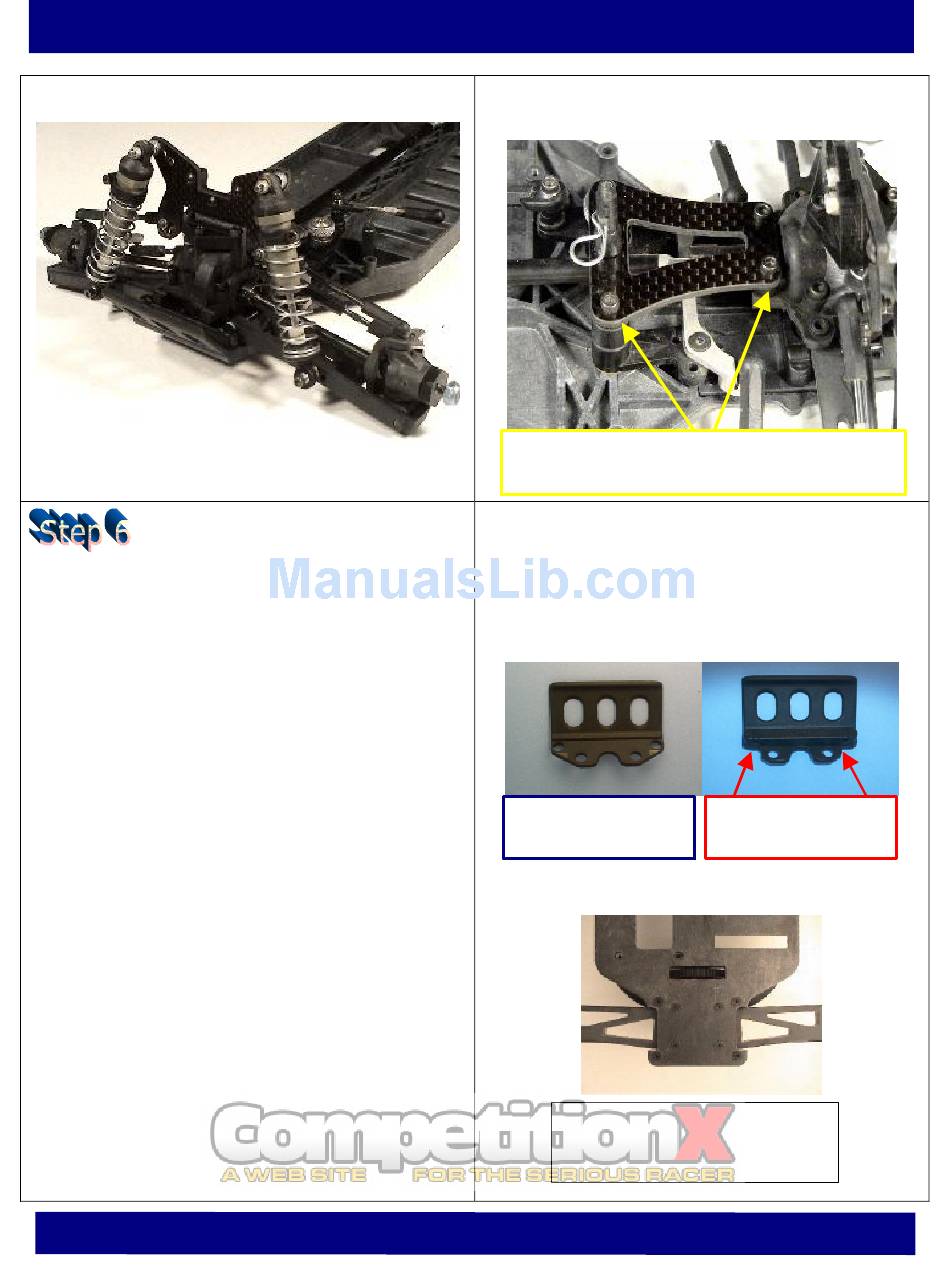

Picture 12: Front End Assembly Front View
Install Rear Suspension:
Mount the modified pivot blocks (part
Ø
number DC-016), starting with the forward
block first using the 2 supplied 4-40 x ½ "
Flat Head screws. Install the 1/8" diameter
inner hinge pins. Insert the rear A-Arms
(part number DC-014B) into the inner
hinge pin.
If you wish to install (optional) the rear
Ø
bumper, then be sure to modify it prior to
its installation. This bumper needs to be
slightly modified to enhance the swing
clearance of the rear A-Arms. (Example
shown in the picture on the right).
If you decided to use the rear bumper
Ø
then proceed to mount the modified
bumper with the modified rearward pivot
block into the inner hinge pin. Secure
them with the 2 provided 4-40 x ½" Flat
Head screws.
Mount the new center drive shaft part
Ø
number DC-003B PRIOR to installing the
rear differential gearbox. Remember to
install the rubber "O" rings inside the drive
cups prior to installing the drive shaft.
Mount the assembled rear differential
Ø
gearbox, and secure it with the 4 supplied
4-40 x ½" Flat Head screws. (Example
shown in the picture on the right).
Picture 14: Chassis Brace installed
Install the (4) 0.1" Delrin spacers provided
underneath the chassis brace and secure the
brace with screws.
Tools required for this step:
Ø
0.16" & 3/32 "Allen Wrench or Driver
Ø
Dremmel Cutting Wheel and 3/16" Nut
Driver
STOCK BUMPER
Bottom view of chassis with
modification. Rear bumper is
not shown.
TC3 "O" V2
MODIFIED
w/Notched Corners
