Summary of Contents for Medea VideoRaid RTS

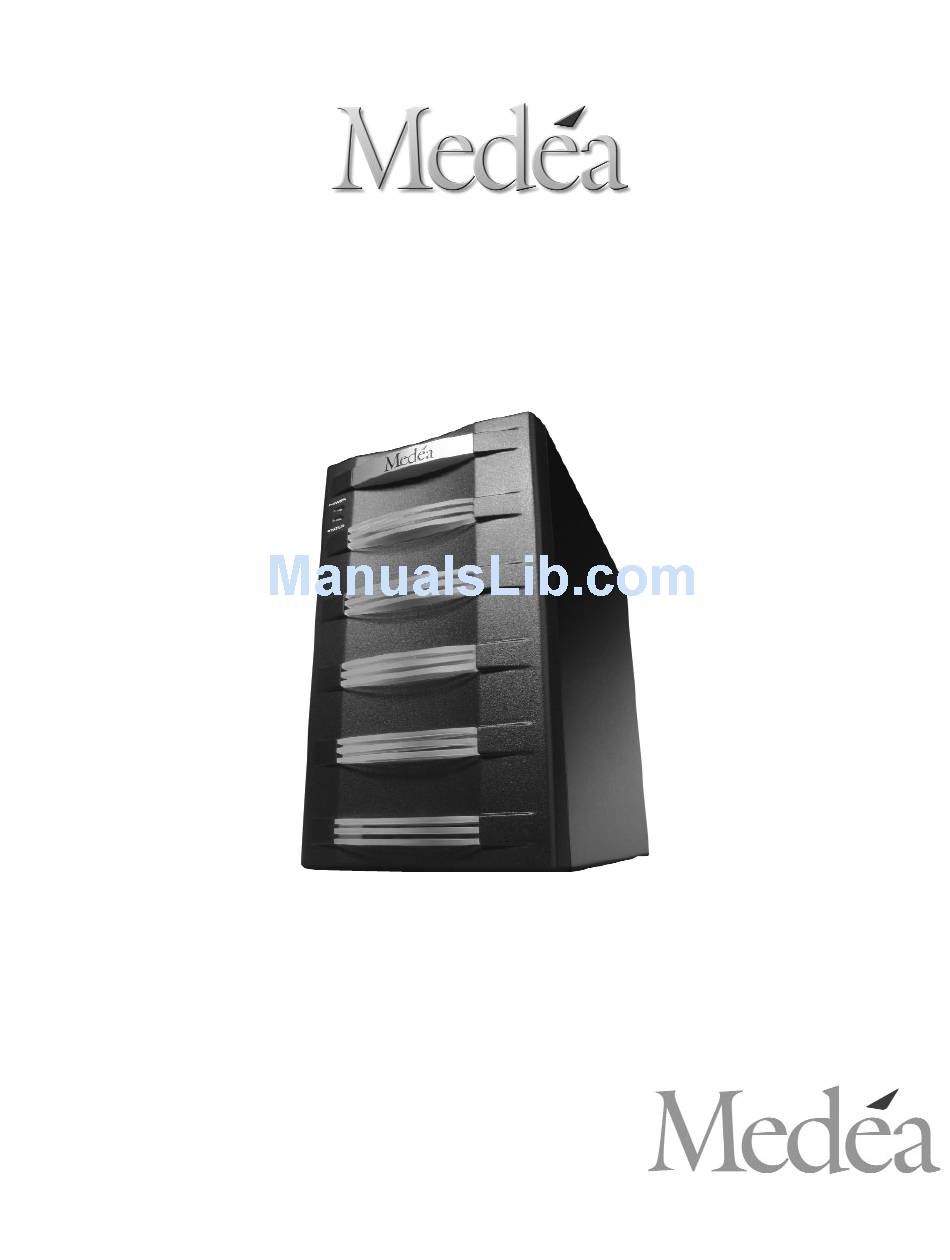

- Page 1 Medéa Corporation Technical Support (818) 880-0303 Fax: (818) 880-6906 support@medea.com VideoRaid RTS Installation Guide Document 103086-Rev B...
- Page 2 IMPORTANT SAFEGUARDS The lightning flash with arrowhead symbol within an equilateral triangle is intended to CAUTION alert the user to the presence of uninsulated dangerous voltage within the product enclosure that may be of sufficient magnitude to constitute a risk of electric shock to RISK OF ELECTRIC SHOCK persons.
- Page 3 Sicherheitseinrichtung an Ihrem Stecker. Zur 4. FOLGEN SIE DEN ANWEISUNGEN Anwendung in anderen Ländern setzen Sie sich mit Alle Benutzer -und Bedienungsanweisungen Ihrem Medea Händler in Verbindung, der Ihnen ein sollten befolgt werden. Landesübliches Stromkabel mit einem Schutzkontaktstecker auf der einen und einem 5.
- Page 4 IEC tiene por objeto enchufarse a una unidad Medea. El enchufe con puesta a tierra de 3 3. PRESTE ATENCIÓN A ADVERTENCIAS alambres es una medida de seguridad. Si no le es Deberá...
- Page 5 CEI doit être rac cordé à l’appareil Medea. La fiche polarisée à trois branches 4. SUIVRE LES DIRECTIVES constitue une mesure de sécurité. Si elle ne Suivre toutes les directives concernant le s’insère pas aisément dans la prise, ne pas...
-
Page 6: Table Of Contents
IDEO TABLE OF CONTENTS INTRODUCTION RTS ........7 BOUT IDEO RTS W... -
Page 7: About Video Raid Rts
IDEO INTRODUCTION Congratulations on your purchase of VideoRaid RTS. You’ve selected a storage solution that will pro- tect your valuable content while offering unbeatable price/performance and the best warranty and sup- port in the industry. BOUT IDEO VideoRaid RTS desktop disk arrays feature a high-performance Ultra160 SCSI interface and are the ideal storage solution for all DCC applications including animation, special effects, and non-linear video editing. -
Page 8: What's In The Box
SAFETY PRECAUTIONS The disk drives contained in your VideoRaid RTS disk array are delicate electronic instruments and are susceptible to damage due to excessive physical shock. Place the unit in a vented area away from moisture or liquids. Please handle the unit with care. Do not open the case. -
Page 9: Technical Specifications
IDEO TECHNICAL SPECIFICATIONS ONNECTORS (2) Very High Density (VHD), 68-pin IMENSIONS 9.125” (h) x 10.75” (d) x 5.125” (w) EIGHT 21 lbs. OWER UPPLY 90-230 VAC, 50/60 Hz auto switching YPICAL URRENT 115 VAC 230 VAC Start-up: 1.12 Idle:: Read/Write/Seek: Environmental Specifications Operating Non-Operating... -
Page 10: Videoraid Overview
IDEO VIDEORAID OVERVIEW IGURE Power LED Status LED Drive Activity LEDs IGURE SCSI ID Selector RAID Controller Status SCSI Connectors Power Switch User’s Guide 10... -
Page 11: Videoraid Operational Features
SCSI bus to determine the SCSI ID of each peripheral. Use replaced at the user’s earliest convenience. this utility to ensure that the SCSI ID you select for the VideoRaid RTS does not conflict with these other peripherals. Do not use ID 7, as Drive Failure Notification –... - Page 12 WARNING! Damage to the terminator will result if not mated in the 5. You are now ready to partition and format your VideoRaid RTS. correct orientation to the SCSI port on VideoRaid. 2. Attach one end of the supplied SCSI cable to the SCSI...
-
Page 13: Indows 2000 / Xp Installation
IDEO INITIALIZING VIDEORAID 2000/XP W INDOWS ORKSTATIONS NOTE: This procedure will create a Basic Disk volume on VideoRaid. Initializing VideoRaid as a Basic Disk will enable you to use the array on any workstation running MS-DOS or Windows 98se/ME/NT/2000/XP. VideoRaid may also be initialized as a Dynamic Disk. Please refer your Windows documentation for more information. - Page 14 IDEO 11. Windows will format the volume and then display the following NOTE: Multiple partitions can be created on VideoRaid. Consult your window. Disk 1 is now identified as VideoRaid (E:) Windows documentation for instructions to set up multiple partitions. 8.
- Page 15 IDEO 4. Select the tab to view the partition options as INITIALIZING VIDEORAID Partition shown below. OS X (10.2. ORKSTATIONS To initialize VideoRaid under Mac OS X 10.2.x, follow the instructions below. 1. Power on your VideoRaid disk array, wait 20 seconds, then power on your Mac OS X workstation.
- Page 16 IDEO 7. When partitioning is complete, VideoRaid will be displayed in the left-hand window as shown below. 8. Exit the Disk Utility. 9. VideoRaid will be displayed on the desktop as shown below. You are now ready to start editing with VideoRaid! User’s Guide 16...
-
Page 17: Technical Support
(818) 880-6906 E-mail: support@medea.com Internet: http://www.medea.com Thank you for purchasing a VideoRaid disk array. If you have any comments or questions about this manual or the product, please call (818) 880-0303, or send an email to marketing@medea.com. User’s Guide 17... -
Page 18: Warranty
IDEO 3-YEAR LIMITED WARRANTY Medéa Corporation (Medéa) warrants to the purchaser of this product that it will be free from defects in material and workmanship for a period of three (3) years from the date of purchase. If the product should become defective within the warranty period, Medéa, at its option, will repair or replace the product, or refund the purchaser’s price for the product, provided it is delivered at the purchaser’s expense to an authorized Medéa service facility or to Medéa.
