YiShi YS-1020UB Manual

ShenZhen YiShi Electronic Technology Development Co., Ltd

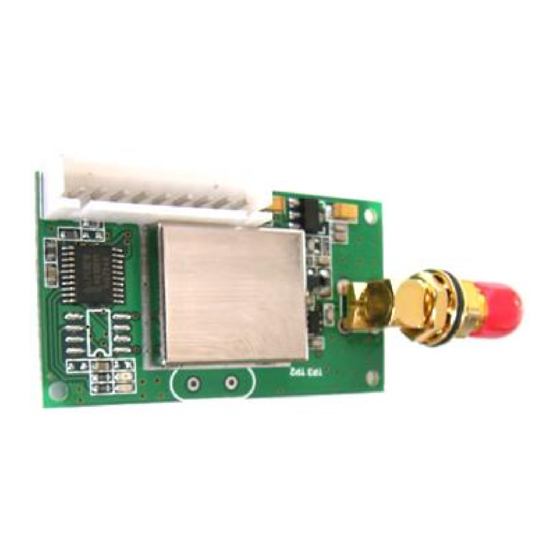

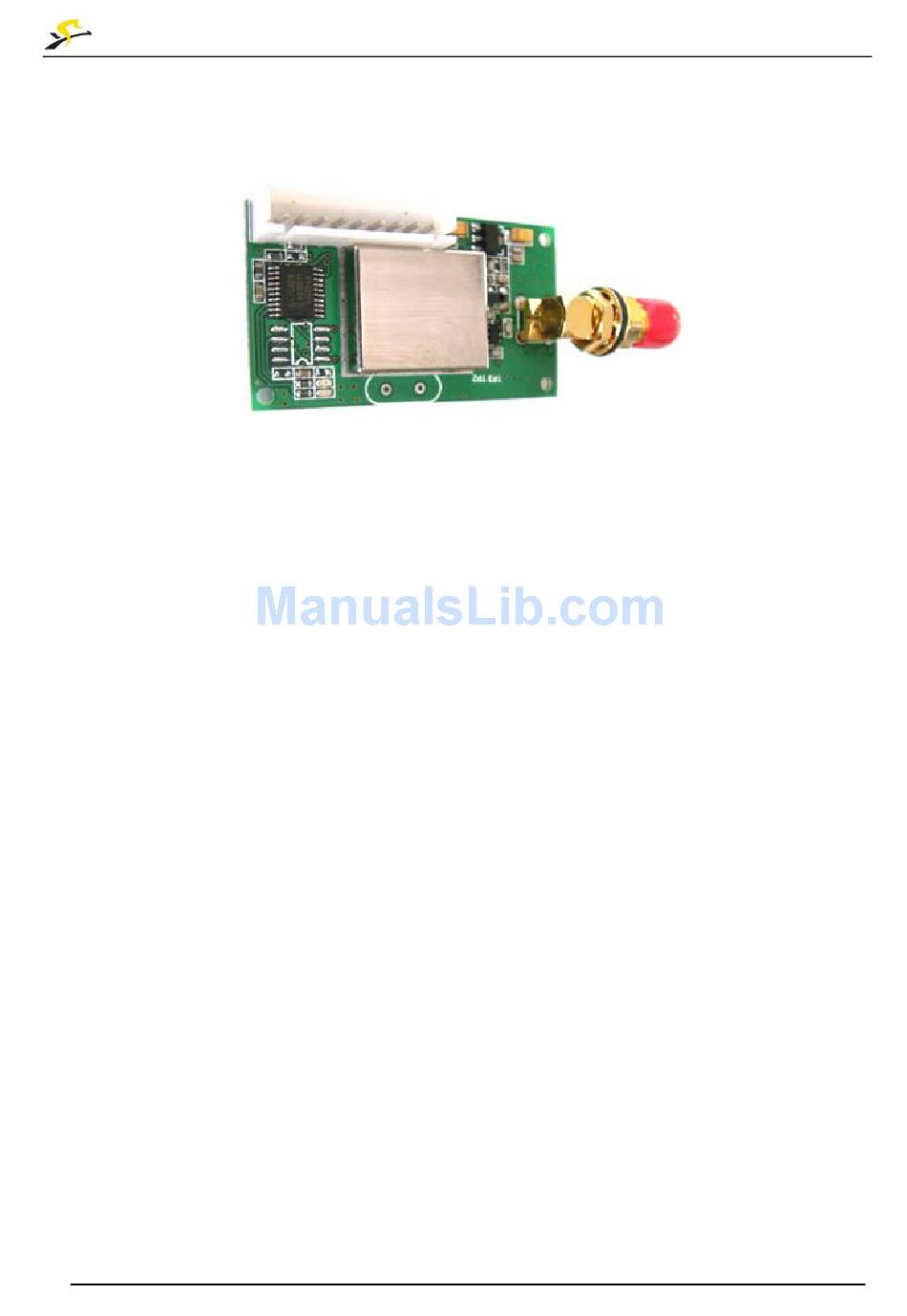

YS­1020UB RF Data Transceiver
YS­1020 series Low power RF modules designed for the professional UART data transmission systems in
short range. YS­1020 adapt Texas Instruments (Chipcon) CC1020 RF IC, works on ISM frequency band, half
duplex integrated receiving and transmitting. Modules could directly connect with monolithic processors, PC,
RS485 devices, and other UART components with RS­232, RS­485 and UART/TTL level interface port.
Transparent data interface, nakedness, and wide temperature design handles most industrial application though
indoor/outdoor environments.
1. Products Main Features
* Carrier frequency: 433/450/868/915MHz or ISM others optional, Free License;
* Interface: RS­232/ RS­485/ TTL optional;
* Multi­channels: 8 channels, expandable for 16/32 channels;
* Baud rate in air: 1200/2400/4800/9600/19200/38400bps, set before delivery;
* Transparent data transmission: What has been received is exactly what has been transmitted,
suitable for any standard or non­standard user protocols;
* Interface format: 8N1/8E1/801 user­defined, or customization for other format interface;
* Modulation: GFSK. Based on the Gaussian Frequency Shift Keying (GFSK) modulation,
High anti­interference and Low BER (Bit error Rate);
* Half duplex: Integration of receiver and transmitter，
* Low power consumption and sleep function;
* Widen Temperature: ­35 ~+75
* Working humidity: 10%~90% relative humidity without condensation;
* Impedance：50Ω (SMA antenna port, multiple antenna options available);
* Complying with EN 300220 and ARIB STD­T67.
2. Application areas
* Automatic meter reading(AMR) and home automation ;
* Wireless smart terminal: POS, PDA,
* Wireless electronic display screen, LED display;
* Wireless remote control, Environment monitor, telemetry system;
* Check attendance system, Queue­management system and positioning in coal mine;
* RS­485 wire multi­drop s
* Industrial automatic data collection, Wireless Data Acquisition, Wireless sensor, SCADA;
YS Ultra low power wireless data module
℃ ℃ (­31~167 F);
changeover wireless system;
ystem
http://www.yishi.net.cn
YS­1020UB MANUAL
auto c
10ms hange for receiving and sending
;
1/3
