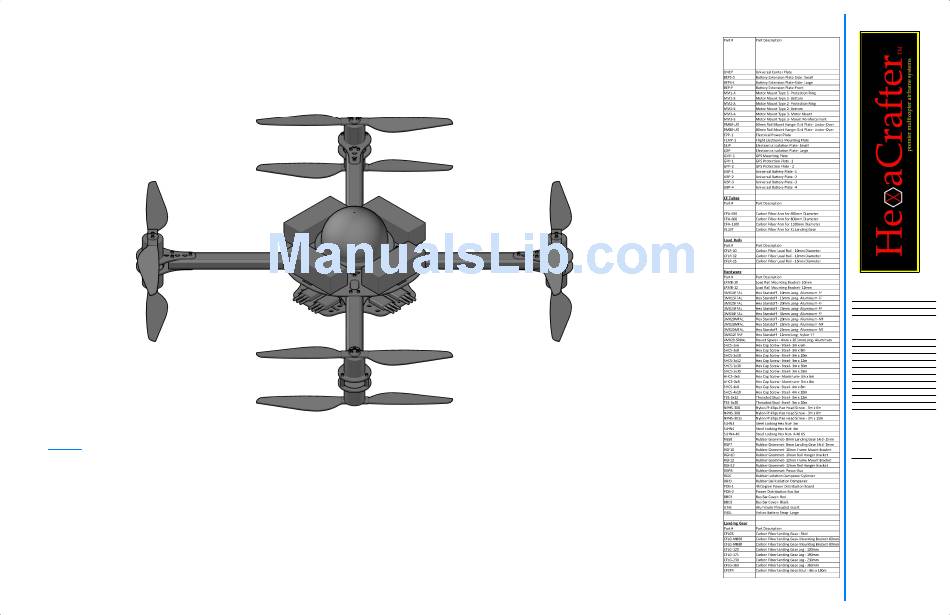

QXS SERIES QUADCOPTER / COAXIAL
OCTOCOPTER QXS-850
FEATURES:
1.
KIT IS COMPLETE TO BE ASSEMBLED AS A 4 MOTOR QUAD OR 8 MOTOR COAXIAL.
2.
MOTOR MOUNTS FOR 3520 SIZE MOTORS
3.
KIT PROVIDED WITH HEXACRAFTER HIGH AMP BUS BAR SYSTEM. OPTION PRE-SOLDERED BUSS
BARS AVAILABLE THROUGH HEXACRAFTER PRE-ASSEMBLY SERVICES.
4.
BUILT IN PROVISIONS FOR FOUR (4) TOP PLATE MOUNTED BATTERIES. 6s - 4500 MAH TO MEET THE
AIRLINE TRAVEL REQUIREMENTS OF 100 WATT HOUR CELLS. VELCRO TIE DOWNS INCLUDED IN KIT.
5.
ESC MOUNTING PLATE ALLOWS NEAT & ORGANIZED MOUNTING OF UP TO 8 ESC.
6.
850MM CL OF MOTORS.
7.
UP TO 18" PROPELLERS. 390MM CLEAR DIAMETER FROM CENTER OF AIRCRAFT TO BLADE TIPS FOR
3-AXIS GIMBAL CLEARANCE.
8.
KIT PROVIDED WITH STANDARD HEXACRAFTER ELECTRONICS MOUNTING PLATES. OPTIONAL SEIP &
LEIP ELECTRONICS SHOCK & VIBRATION ISOLATION SYSTEMS ARE DIRECT BOLT UP ACCESSORIES.
9
KIT IS PRE-DRILLED TO ACCEPT HEXACRAFTER 10MM, 12MM AND 15MM LOAD RAILS. LOAD RAILAS
AVAILABLE AS ADD-ON ACCESSORIES. AT 60MM & 80MM SPACING. ADAPTER BARS AVIABLE FOR
155MM DJI SPACING.
10. KIT WILL ACCEPT ALL HEXACRAFTER STANDARD AND RETRACTABLE LANDING GEAR KITS.
11. EASILY FOLDABLE FOR PACKING & TRANSPORT.
PARTS LIST
DRAWN BY:
ARR
ISSUE / DATE:
01-17-2017
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
SHEET TITLE :
QXS SERIES
AIRFRAME
ASSEMBLY
MANUAL- PAGE 1
SHEET NO. :
QXS-1A
Advertisement
Summary of Contents for HexaCrafter QXS-850
- Page 1 LEIP ELECTRONICS SHOCK & VIBRATION ISOLATION SYSTEMS ARE DIRECT BOLT UP ACCESSORIES. AIRFRAME KIT IS PRE-DRILLED TO ACCEPT HEXACRAFTER 10MM, 12MM AND 15MM LOAD RAILS. LOAD RAILAS ASSEMBLY AVAILABLE AS ADD-ON ACCESSORIES. AT 60MM & 80MM SPACING. ADAPTER BARS AVIABLE FOR 155MM DJI SPACING.
- Page 2 AIRFRAME TRANSPORT - PART 3 TRANSPORTING THE QXS-850 THE HEXACRAFTER QXS-850 IS DESIGNED TO BE QUICKLY CONFIGURED TO BE PACKED IN A CARRYING CASE. WITH THE REMOVAL OF (8) 3MM X 35MM ARM LOCKING SCREWS ON THE ARMS, THE ARMS CAN ROTATE FOR PACKING OR TRANSPORT.
- Page 3 FRAME FOR MOTOR ALIGNMENT. MOTOR SHCS-3X8 HEX CAP SCREW SHIMS ARE INCLUDED IN EACH KIT IN 0.1 & 0.2 MM THICKNESSES. PLEASE VISIT THE HEXACRAFTER WEBSITE FOR INSTRUCTION VIDEO ON MOTOR ALIGNMENT WITH SHIMS. MM2-A MOTOR MOUNT 4MX20RNAL ROUND STANDOFF...
- Page 4 2750 Northampton Road Cuyahoga Falls, Ohio 44223 (330) 929-0989 www.hexacrafter.com NOTICE: HexaCrafter ltd. reserves proprietary QXSTP HXS SERIES TOP CENTER PLATE rights to this drawing and data shown thereon. Said drawings and/or data are CONFIDENTIAL and are not to be reproduced for any purpose without the written consent of HexaCrafter ltd.
- Page 5 RECOMMENDED. THE BUS BAR SHOULD BE COMPLETELY REMOVED FROM THE NYLON STANDOFFS & CARBON FIBER POWER PANEL WHEN SOLDERING AS TO NOT DAMAGE THESE PARTS. SEE OUR VIDEO ON THE HEXACRAFTER WEBSITE. ISSUE / DATE: 01-17-2017 ESC (BY OTHERS)- FRONT & BACK LOCATIONS USED FOR QUADCOPTER.
- Page 6 HEXACRAFTER ONLINE ASSEMBLY VIDEOS & PHOTOS: PLEASE VISIT OUR WEBSITE: www.hexacrafter.com FOR DETAILED ASSEMBLY VIDEOS & PHOTOS. CONTACT HEXACRAFTER FOR ASSISTANCE OR WITH BUILD QUESTIONS. SHCS-3X8 OR 3X10 HEX CAP SCREW THREADLOCK COMPOUND RECOMMENDED CLR-12 12MM TUBE SECTION CLR-15 15MM TUBE SECTION...
- Page 7 HEXACRAFTER ONLINE ASSEMBLY VIDEOS & PHOTOS: PLEASE VISIT OUR WEBSITE: www.hexacrafter.com FOR DETAILED ASSEMBLY VIDEOS & PHOTOS. CONTACT HEXACRAFTER FOR ASSISTANCE OR WITH BUILD QUESTIONS. SHCS-3X8 OR 3X10 HEX CAP SCREW THREADLOCK COMPOUND RECOMMENDED QXSEPP QUADCOPTER ELECTRICAL POWER PLATE SHCS-3X18 HEX CAP...
- Page 8 2750 Northampton Road Cuyahoga Falls, Ohio 44223 (330) 929-0989 www.hexacrafter.com NOTICE: HexaCrafter ltd. reserves proprietary SLHN-3 STEEL LOCKING HEX NUT- rights to this drawing and data shown 3MM- INNER (4) LOCATIONS thereon. Said drawings and/or data are CONFIDENTIAL and are not to be reproduced for any purpose KNN3 3M KNURLED NUTS FOR FAST &...
- Page 9 2750 Northampton Road Cuyahoga Falls, Ohio 44223 (330) 929-0989 www.hexacrafter.com NOTICE: HexaCrafter ltd. reserves proprietary rights to this drawing and data shown thereon. Said drawings and/or data are CONFIDENTIAL and are not to be reproduced for any purpose without the written consent of HexaCrafter ltd.
- Page 10 2750 Northampton Road Cuyahoga Falls, Ohio 44223 (330) 929-0989 www.hexacrafter.com NOTICE: HexaCrafter ltd. reserves proprietary rights to this drawing and data shown thereon. Said drawings and/or data are CONFIDENTIAL and are not to be reproduced for any purpose without the written consent of HexaCrafter ltd.
- Page 11 2750 Northampton Road Cuyahoga Falls, Ohio 44223 (330) 929-0989 www.hexacrafter.com NOTICE: HexaCrafter ltd. reserves proprietary rights to this drawing and data shown thereon. Said drawings and/or data are CONFIDENTIAL and are not to be reproduced for any purpose without the written consent of HexaCrafter ltd.
- Page 12 2750 Northampton Road Cuyahoga Falls, Ohio 44223 (330) 929-0989 www.hexacrafter.com NOTICE: HexaCrafter ltd. reserves proprietary rights to this drawing and data shown thereon. Said drawings and/or data are CONFIDENTIAL and are not to be reproduced for any purpose without the written consent of HexaCrafter ltd.
