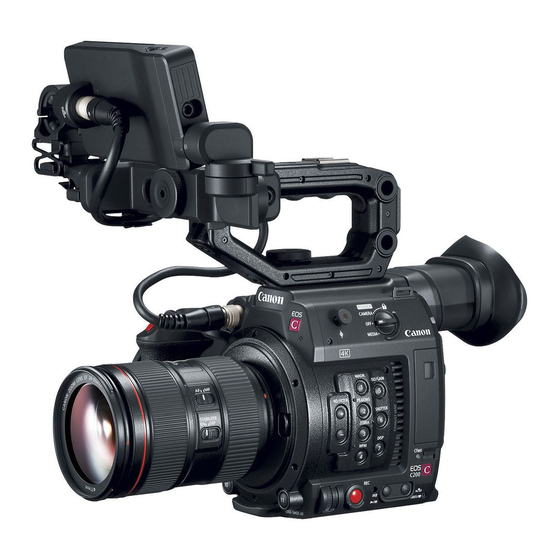

Canon EOS C200 Manual

Camera with a pl mount

Hide thumbs Also See for EOS C200:

Download this manual See also: Instruction Manual

Using an EOS C200 / C200B Camera with a PL Mount

After replacing the EF lens mount of a Canon Digital Camera EOS C200 / C200B with a PL mount, you will not be able to use some

functions. This document details the main differences from the explanations in the Instruction Manual of the camera.

Attaching and Removing a PL Lens

The precautions to follow when attaching/removing a PL lens are the same as explained for an EF lens. Refer to

in the Instruction Manual (A 37).

Names of Parts

1 Bayonet ring handles

2 PL Lens index pin

Attaching a PL Lens

1 Holding a bayonet ring handle, turn the bayonet ring counter-clockwise to

remove the camera's body cap.

• Remove also the dust caps from the lens.

2 Attach the lens to the camera aligning a groove on the lens with the PL lens

index pin on the mount.

3 Turn the bayonet ring clockwise to fix the lens in place.

3 Bayonet ring

4 PL Lens mount

Preparing the Lens

PL lens index pin

July 2017

Page 1 Using an EOS C200 / C200B Camera with a PL Mount After replacing the EF lens mount of a Canon Digital Camera EOS C200 / C200B with a PL mount, you will not be able to use some functions. This document details the main differences from the explanations in the Instruction Manual of the camera.
Page 2 Using an EOS C200 / C200B Camera with a PL Mount Removing a PL Lens 1 Holding a bayonet ring handle, turn the bayonet ring counter-clockwise to release the lens. • Remove the lens and replace the dust caps. 2 Replace the body cap to the camera and turn the bayonet ring clockwise to fix it in place.
Page 3 Using an EOS C200 / C200B Camera with a PL Mount Onscreen Displays The following onscreen displays (icons and indications) will not appear on the screen. Related information will also not appear on the various status screens. Refer to Onscreen Displays...
