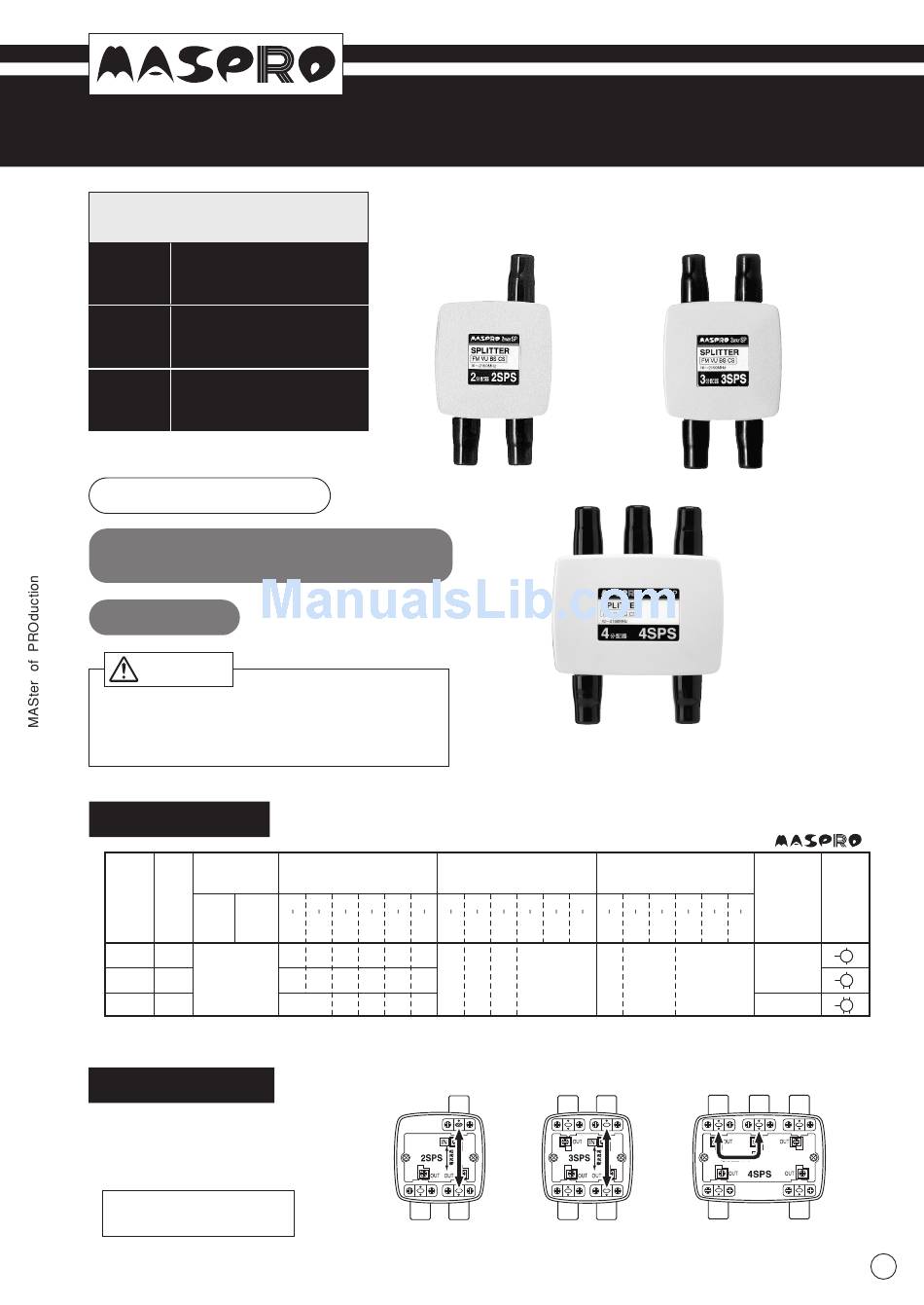

Maspro 2SPS Instruction Manual

Frequency Range
10 - 2150MHz
2SPS
2-way
3SPS
3-way
4SPS
4-way
Output the TV signals divided equally.
Direct-connect port
Power passing between IN and
one specified OUT port
Indoor Use
Caution
When you hear thunder, don't touch any
lead-in cable from the TV antenna. It may
cause electrical shock.
Specifications
Impedance
(Ω)
Model
Type
IN OUT
2-way 2SPS
75
3-way 3SPS
4-way 4SPS
Power Passing
Power passing possible between
arrow-marked IN and OUT ports,
shown in illustration right.
Power passing capacity:
1A (at 30V AC / 15V DC)
SPLITTERS
Power passing between IN and one specified OUT port.
Power passing capacity: 1A (at 30V AC / 15V DC)
Max. Splitting Loss Min. Isolation Out-to-Out
(dB)
10 76 222 770 1336 1895 10
76 222 770 1336 1895 2150 76
MHz MHz MHz MHz MHz MHz MHz
4.2 4 4.3 4.8 6 7
10 13
6.3 6 7 8 9
8 8.5 9.8 10 11
IN
OUT OUT
2SPS
Read this instruction manual carefully before use.
INSTRUCTION MANUAL
2-way Splitter
2SPS
Max. Voltage
Standing Wave Ratio
(dB)
76 222 770 1336 1895 10 76
222 770 1336 1895 2150 76 222
MHz MHz MHz MHz MHz MHz MHz
20 18 15 2 1.8
You can always rely on MASPRO's performance data.
OUT IN
OUT OUT
3SPS
for Home Use
3-way Splitter
3SPS
4-way Splitter
4SPS
Dimensions
(mm) Symbol
222 770 1336 1895
HxWxD
770 1336 1895 2150
MHz MHz MHz MHz
76x60x26
2
76x85x26
OUT IN OUT
OUT OUT
4SPS
1
