MyHOME F500N Instructions

Radio tuner
Description
The radio tuners item F500N can receive FM radio stations. The front pushbuttons and
the backlit display adjust the device locally, save 15 radio stations and display RDS
messages and the tuned frequency.
It is also capable of performing two types of station searches: manual and automatic.
The device can be managed (switching ON and OFF, frequency change, etc.) both locally
and remotely (via the SCS BUS) using the flush mounted amplifier, or the MY HOME
control devices (e.g. Touch Screen and Local Display).
In order to receive the radio channels correctly the type of antenna used must be
selected: if the F500N is installed in a zone of the building with sufficient signal
strength, the wire antenna can be used. If the signal strength inside the building is not
sufficient, the external antenna can be used (e.g. antenna installed on the roof), using
the coaxial connector and the appropriate adapter cable. The type of antenna is selected
using the configurator.
Technical data
Power supply from SCS BUS: 18 – 27 Vdc
Max. absorption: 20 mA @27 V – 25 mA @18 V
Absorption in stand-by: 5 mA @27 V – 9 mA @18 V
Dissipated power: 0.5 W
Operating temperature: 5 - 45 °C
FM reception band: 87.5 – 108 MHz
Antenna to be connected
Maximum level (*): 70 dBμV
Minimum level (*): 40 dBμV (mono) - 50 dBμV (stereo)
(*) The maximum and minimum levels that must be guaranteed at the antenna socket
for correct FM band reception.
Dimensional data
4 DIN modules
Configuration
S MEM ANT
S: 1 – 4 local address of the source
MEM: number of stations that can be stored
Configurator
–
2
3
ANT: this indicates the type of antenna used by the radio
Configurator
–
1
No. of stations
5
10
15
Type of antenna
Indoor (wire)
Outdoor (Coax)
MQ00391-b-UK
8
7
6

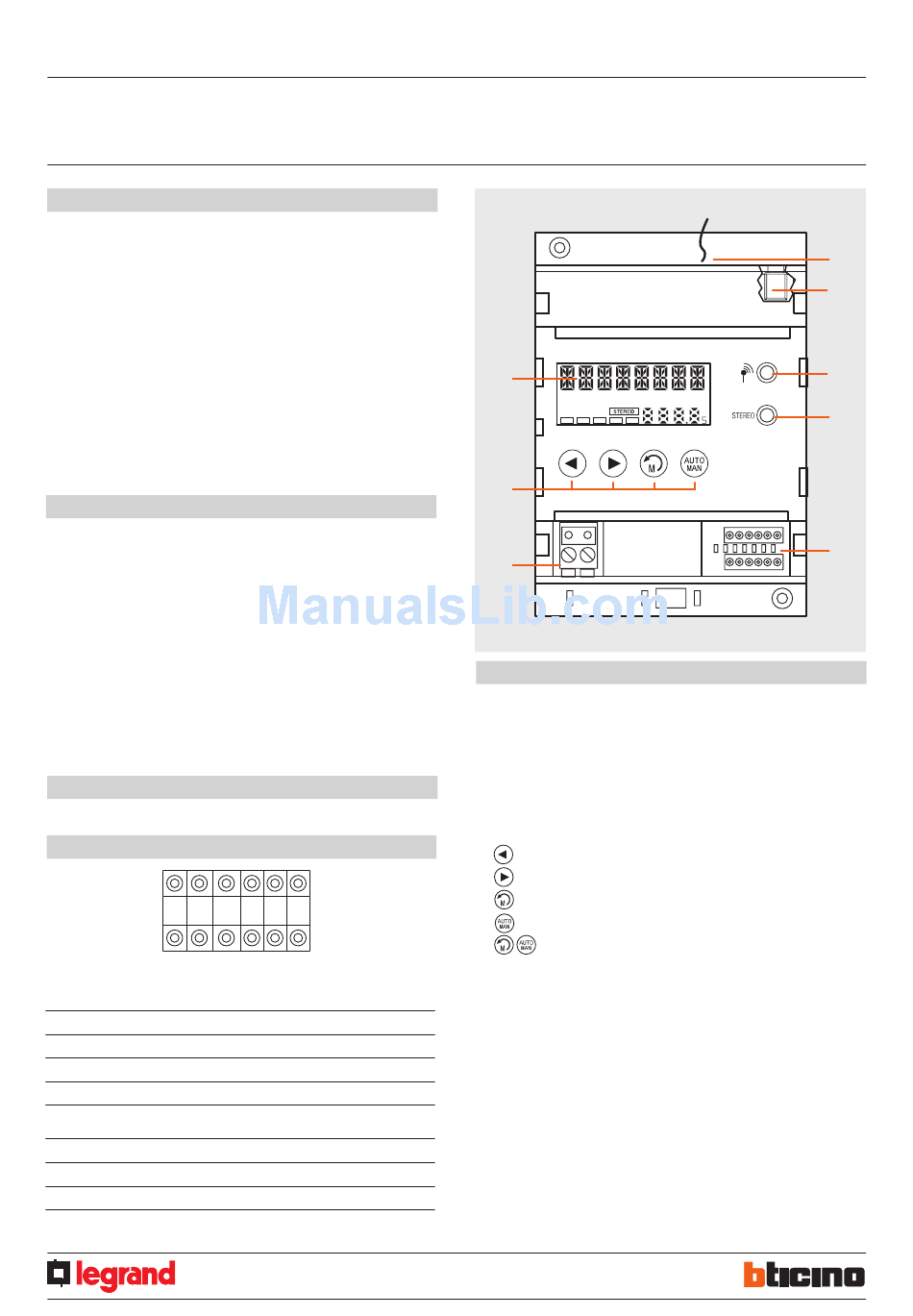

Legend
Wire antenna
1.
MCX connector for the outdoor antenna (e.g. roof antenna) (*)
2.
Green LED on steady: good quality signal reception
3.
Red LED on steady: stereo reception (mono reception when off)
4.
Configurator socket
5.
Removable 2 pole connector for the connection to the SCS BUS of the sound system
6.
Radio tuner programming and radio program scanning keys
7.
Frequency decrease
Frequency increase
Selection/storage of stations (short/extended pressure)
Frequency scanning mode: manual/automatic
Press at the same time for 5 seconds to store the station in the memory
LED backlit display for the display of frequency, RDS messages, and stored stations
8.
(*) Cable with MCX-F connector supplied as standard.
07/01/2013
MyHOME
automation
F500N
1
2
3
4
5
1
