Foscam FN3104W-B4 Quick Installation Manual

285mm

Quick Installation Guide

Model: FN3104W-B4
142.5mm
6
Cameras Installation
Fixate the camera on your preferred location and use screws to
mount it. We have provided screws in the package.
0~360°
0~360°
0~90°
0~360°
0~90°
0~360°
Please Note:
Ensure that the rain or water will not reach the connector
ports at the end of the pig tail wiring. These connectors are
not weather-resistant.
.00
.00
1
Security Warning
Please change the password of your Foscam NVR APP account,
NVR and cameras username regularly, the password should be
the combination of numbers, letters and special characters.
Please keep the username and password of your cameras, NVR
and Foscam NVR APP account safe.
Please update your camera to the latest firmware, which make
you have better product experience and ensure the safety of
your NVR and cameras.
2

Package Contents

4-Channel NVR
720P Bullet IP Cameras 1.5m (5 ft) Ethernet Cable
4 Power Adapters for IPC 1 Power Adapter for NVR
Quick Installation Guide Warranty Card
USB Mouse Screw Pack
CD /
V1.0.2
EQ310417
1
7
Power On
DC 12V/1A
DC 12V/1A DC 12V/1A
WiFi Connection
GND
Mouse
Connect the powers as the figure above, and make sure the
NVR is connected to the ground, then turn on the power
switch on the rear panel.
After the NVR starts up successfully, the Power LED, HDD LED
and LAN LED indicators will turn green.
5
95.00mm
3

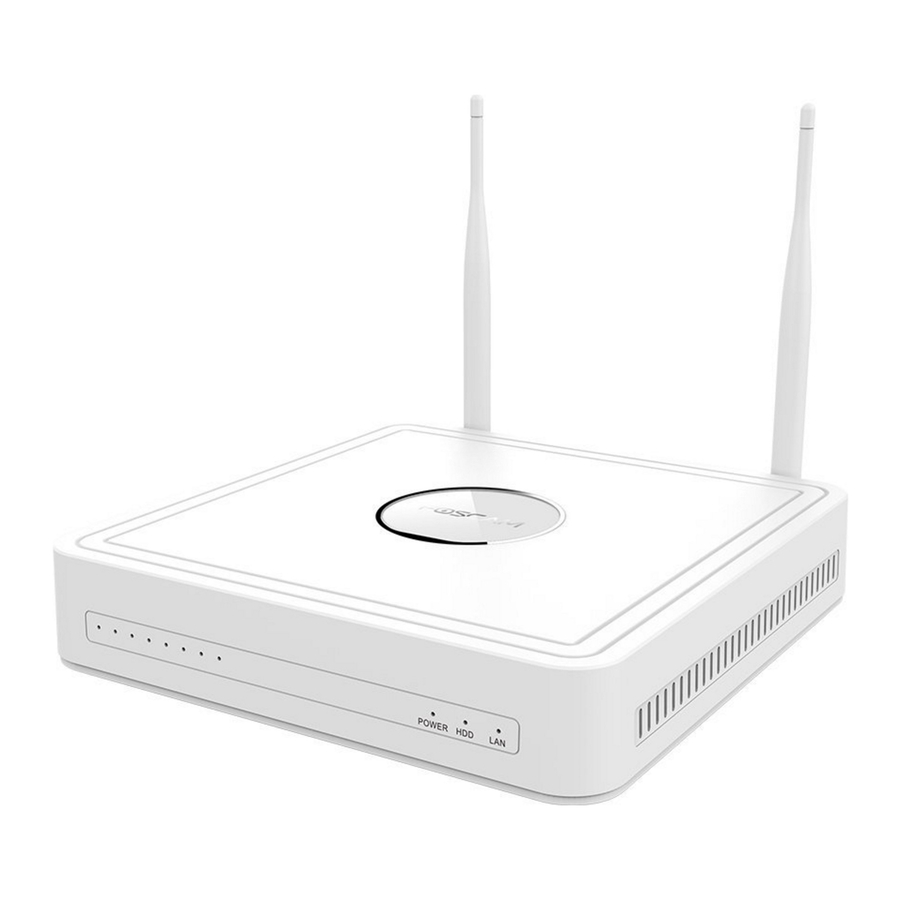

NVR Structure
Antenna
VGA Output Ethernet Port
HD-OUT
Reset USB
4
Wireless Connection
WiFi Connection
Monitor
VGA
VGA Cable
VGA
HD-OUT
HD-OUT LAN
HD-OUT Cable
Ethernet Cable
TV
2
8
Preview
For the initial login, please set a new password and follow the
DC 12V/1A
Setup Wizard to finish the setting.
Note: It may take 1 to 2 minutes for the Live View interface appear, please wait
patiently.
2016-08-11 10:15:36 2016-08-11 10:15:36
FI9800W FI9800W
2016-08-24 10:15:36 2016-08-11 10:15:36
FI9800W FI9800W
Status Icons
This icon indicates that this camera is currently recording.
This icon indicates that the motion detection of this
DC 12V/2A camera has been triggered.
Toolbar
Left click with the mouse once on one of the live video
channels available, the toolbar will pop up.
1 2
1: Audio 2: Playback 3: Recording
6
190.00mm
5
Interference
A clear line-of-sight connection between NVR and IP cameras provides
the strongest wireless signal up to 525ft / 160m away. The signal may be
weakened in the scenarios below.
1. There is a barrier between NVR and IP cameras, such as wall made of
Power Switch
cement, iron, tree, etc.
Power Input
(DC12V / 2A)
2. There is other electrical equipment running nearby, such as
microwave oven, fridge, etc.
3. WiFi NVR is placed near other wireless signal sources, such as radio
transmitting tower, voltage transformer, other wireless router, etc.
Foscam NVR
4. The weather is bad, such as rainy, thundering, cloundy, etc.
LAN
LAN
Router
Computer
3
9
Playback
You can view the recording video of the cameras.
Steps:
Right click the mouse in the Live View mode, select the
Playback > Date > Video Type > Search, then click
2016-08-11 10:15:36
recording video.
Note:
The green date indicates there is recording files on the day.
2016-08-11 10:15:36
FI9800W
2016-08-24 10:15:36
FI9800W
2016-08-11 10:15:36
FI9800W
2016-08-11 10:15:36
FI9800W
2016-08-24 10:15:36
FI9800W
3 4 5
4: Camera Name 5: Full Screen
7
285.00mm
Antenna A Antenna B
Antenna C
4
to view
2016-08-11 10:15:36
FI9800W
2016-08-11 10:15:36
2016-08-11 10:15:36
FI9800W
2016
2016-08-11 10:15:36
FI9800W
8
380.00mm
