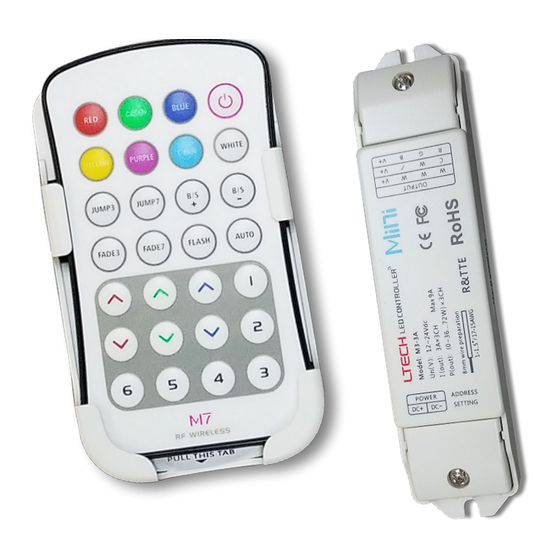

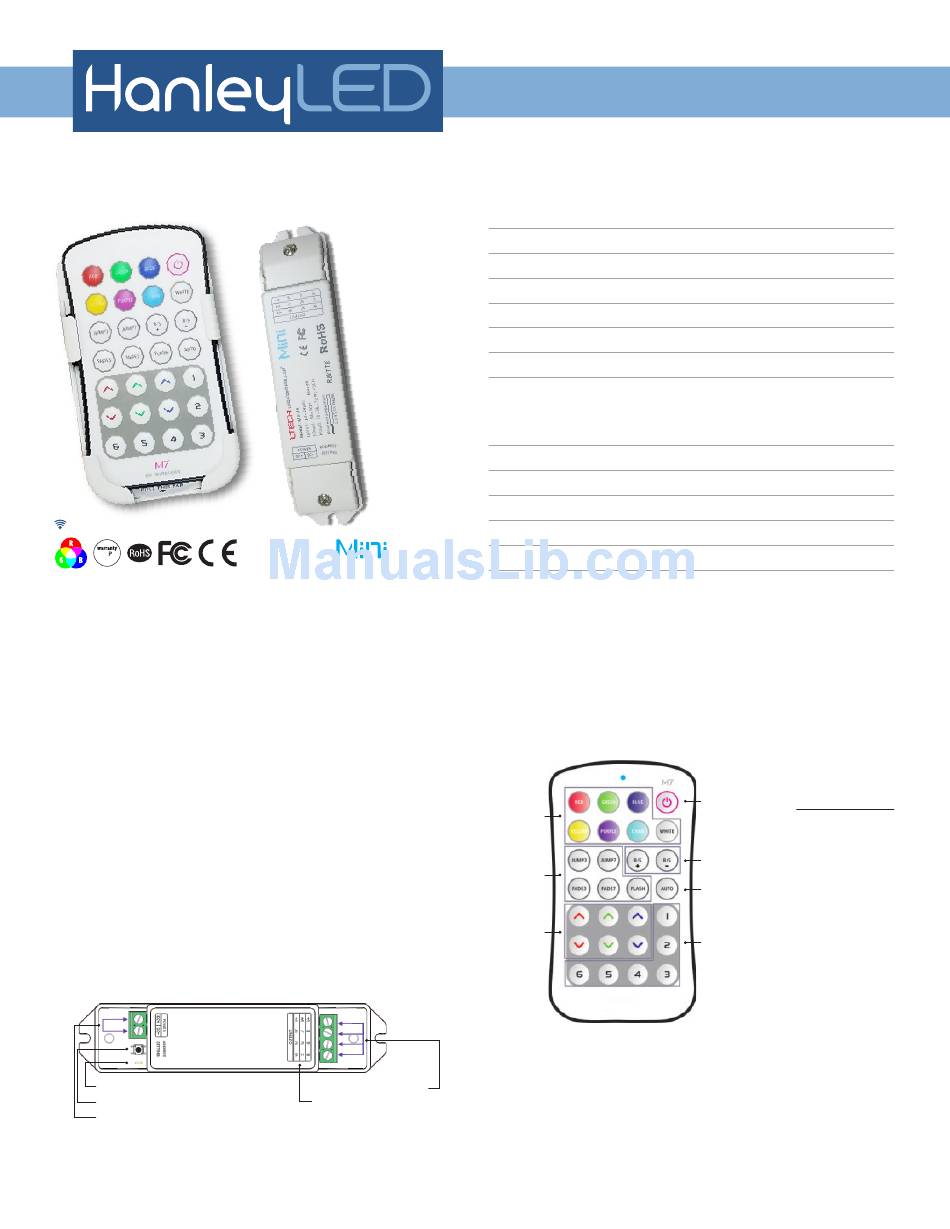

HanleyLED HLED-RGBCNTRL Operating Instruction

RGB Controller
HLED-RGBCNTRL
RF WIRELESS
5
Features
- RF remote is slim, light and easy to carry while receiver is small and easy to install.
- High grayscale performance.
- One receiver has the capability to dim, change color temperature and control RGB.
- Remote can automatically enter standby mode to extend battery life.
Automatic sleep mode, after 30 seconds.
- Remote can be used up to 90ft away from the receiver.
- HanleyLED recommends underloading by 5%.
Attention
- This product is non-waterproof. Please avoid the sun and rain. When installed
outdoors, ensure it is mounted in a water proof enclosure.
- Good heat dissipation will prolong working life of the controller. Please ensure
good ventilation with each installation.
Operating Instructions for Receiver:
Indicator Light
Remote ID learning button
Power Input Socket
HanleyLED HLED-RGBCNTRL Spec Sheet
(EMC, R&TTE)
LED lamp connection socket
+
R G B V RGB Control - Remote M7
US www.grimco.com • 800.542.9941 | Canada www.grimco.ca • 800.263.1421 | International 305.885.0088
HanleyLED HLED-RGBCNTRL Spec Sheet
Specifications
RECEIVER
Model M3-3A
Power Input 12 ~ 24vDC
Max Current Load 3Ax3CH
Max Output Power
108W(12V)/216W(24W)
Working Temp.
-30 ~ 55 °C / -22° ~ +131 °F
Dimensions
L135 x W30 x H20(mm)
Weight 47g
Total Weight (G.W.) 135g
REMOTE
Model
M7
Working Voltage
3V (battery CR2032)
Working Frequency 433.92 MHz
Remote Distance 30m
Working Temp. -30 ~ 55 °C / -22° ~ +131 °F
Dimensions
L104 x W58 x H9(mm)
Weight (N.W.)
42g
Remote Control Operating Instruction:
Top Section
To customize the "Jump" feature or the "Fade" feature use
the (+) or (-) buttons to increase or decrease the "Jump"
or "Fade". This automatically saves after you choose the
desired speed of your selected feature.
Color Shortcut
Mode Shortcut
RGB Brightness +/-
Bottom Section
This portion is to save solid colors. Use the arrows to
formulate the exact color you want. Once you have the
desired color simply hold down a number to save that color
for future use. You can save up to 6 custom solid colors.
www.hanleyledsolutions.com Your Local Distributor: Grimco
COLOR
On/Off CHANGING MODES
1. Static Red
2. Static Green
3. Static Blue
Speed/Brightness +/-
4. Static Yellow
5. Static Purple
Loop Play
6. Static Cyan
7. Static White
8. RGB Skipping
Color-save
(Press 25 and save)
9. 7 Colors Skipping
10. RGB Smooth
11. Full-color Smooth
06.5.18
