Summary of Contents for Heddys HEBNC80

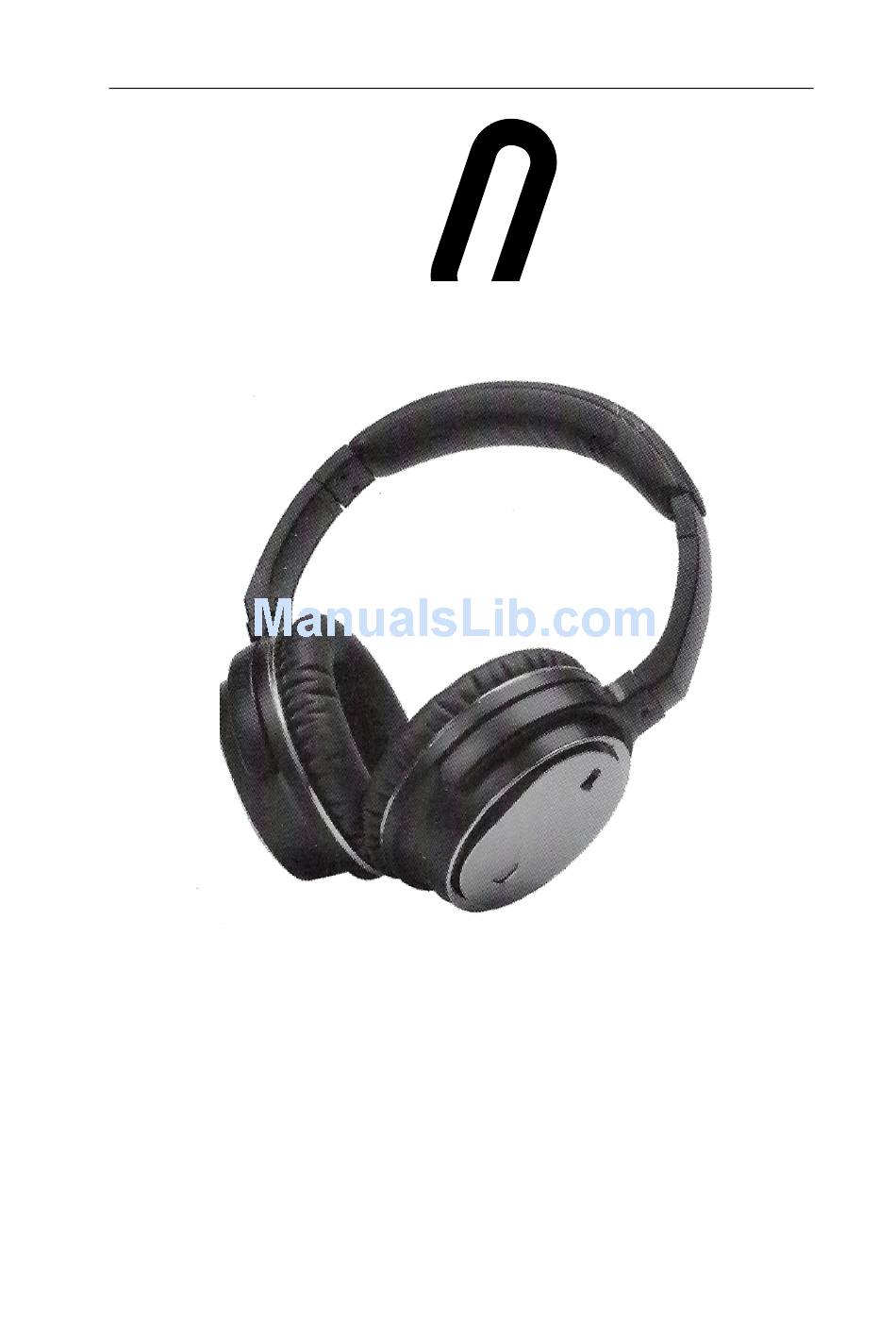

- Page 1 Owner’s Guide Heddys HEBNC80 Model Bluetooth® Noise Cancelling Rechargeable...
- Page 2 Safety Information • Always turn the volume control down on your sound source before plugging in your headphones; then increase it to a comfortable level. • Do not wear these headphones near traffic or in any other activity where a failure to hear surrounding sounds could be dangerous. •...
-
Page 3: Table Of Contents
Introduction ..................4 Package Contents ................. 4 Product Overview ................5 Controls ..................5 Using your new HEBNC80 Headphones: Charging the Battery ..............6 Adjusting the Headband ............... 6 Switching POWER ON/OFF ............6 Connecting/Pairing to your Bluetooth® device ......7 Music playback/control functions .......... -
Page 4: Introduction
Introduction Introduction Thank you for choosing headphones. This product has been manufactured to the highest standards to ensure comfort and trouble-free performance for years to come. Package Contents Included with your new headphones are the following items: Detachable 3.5mm Audio cable ... -
Page 5: Product Overview
Product Overview Controls Headphone: Left side 1 – LED Bluetooth® and Battery indicator. 2 – Multi-Function Button (MFB) 3 – Microphone 4 – Charging port via micro USB Headphone: Right side 5 – LED Noise-Cancelling indicator. 6 – Noise Cancelling ON/OFF 7 –... -
Page 6: Using Your New Hebnc80 Headphones
Using your new headphones Charging the Battery (Refer to the diagrams shown on Page 5) Using the USB Charging cable supplied with your headphones, plug the micro USB connector into the Charging port (4). Connect the remaining USB connector into a standard USB charger or USB computer port. -
Page 7: Connecting/Pairing To Your Bluetooth® Device
Your headphones are now in PAIRING MODE. 2. Enable searching of nearby Bluetooth® devices on your device. When you see HEBNC80 listed as FOUND on your device you can now select CONNECT to pair with them. Note: If your device prompts you for a password, enter 0000. -
Page 8: Music Playback/Control Functions
Press & hold the MFB button (2) for 3 sec. Swap calls between While speaking, press the MFB button (2) HEBNC80 Headphones for 3 seconds. When a “BEEP sound is and a Smartphone. heard, release the MFB button. Connecting via an Audio cable A Detachable 3.5mm Audio cable is provided for use with... -
Page 9: Active Noise-Cancelling Mode
• When not in use, switch the Active Noise-Cancelling feature OFF to extend battery life. Your HEBNC80 headphones may be used as conventional headphones via the Audio cable even if the batteries are fully drained. -
Page 10: Cleaning And Maintenance/Battery Care
Cleaning and Maintenance It is not necessary to regularly clean your headphones, however if you believe they do need cleaning please use a soft, dry cloth. Avoid using chemical cleaners of any description. Battery Care Always charge your headphones using only a standard USB port or charger and not any high current/fast charger devices. -
Page 11: Troubleshooting
• Ensure your mobile phone’s Bluetooth feature is activated. Please refer to your mobile phone user guide for specific instructions. • To reset the default functions of the HEBNC80 headphone you can simply plug-in to recharge then disconnect. Notes: 1. You are able to use both Noise Cancelling & Bluetooth®... -
Page 12: Technical Specifications
Technical Specifications Bluetooth version: Bluetooth chipset: CSR8645 w/apt-X Noise Cancellation rate: 85% Speakers: 40mm Neodymium Audio impedance: 32 Ohms Charging time: Approx. 3.0 hours Charging: Via Micro USB to USB Adapter (included) BT operating range: ≥10 m Wired Audio Option: Via an Audio cable (included).
