INTRODUCTION

Thank you for buying a LumenRadio CRMX Outdoor product.
This guide is intended to give you a quick start to experience the
benefits of LumenRadio's CRMX system.
The CRMX products you just purchased are designed to give you the
highest reliability on the market and are fully compatible with other
CRMX products in entertainment lighting (CRMX Nova, CRMX
Outdoor, CRMX Slim, CRMX OEM). Through this you are able
to expand your wireless system with units from our other product
lines as well as with those of our partners. For the latest updates
please visit the LumenRadio website www.lumenradio.com.
We hope that you will enjoy our products and that they will bring
benefits and positive experiences.

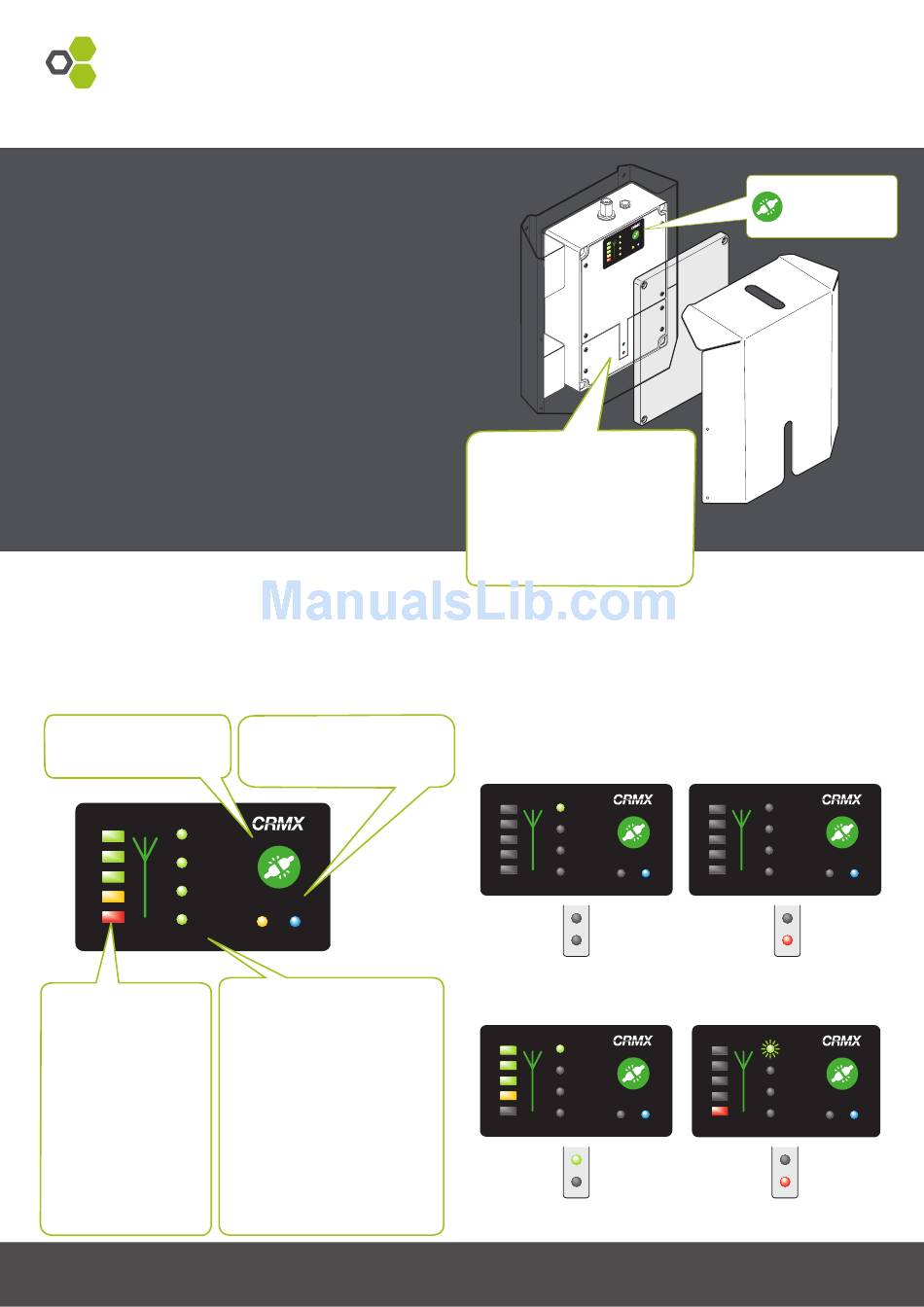

CRMX OUTDOOR CONTROL PANEL
See the operation section for details on how to
link and unlink CRMX Outdoor units.
Link button - press to link
with, or unlink from, another
unit.
RF Link
DMX
RDM
Ethernet
Signal quality indicators
Transmitter:
Not used/All off.
Receiver/Repeater:
Top green = 80% signal
quality.
Mid green = 60% signal
quality.
Bottom green = 40%
signal quality.
Amber = 20% signal
quality.
Red = Link problem.
The information furnished in this start guide is for informational use only and is subject to change without notice. Please check www.lumenradio.com for latest version.
LumenRadio AB assumes no responsibility or liability for any errors or inaccuracies that may appear in this start guide. All information and graphics are property of
LumenRadio AB, Svangatan 2B SE-416 68 Gothenburg, Sweden.
Power - on when power applied.
Lock - not used on outdoor
models.
Lock Power
Status indicators
RF Link on Transmitter:
On = Normal operation.
Fast flashing (~3Hz) = Linking.
Slow flashing (~1Hz) = Unlinking.
RF Link on Receiver/Repeater:
On = Linked with RF signal.
Off = Unlinked.
Fast flashing (~3Hz) = Linking or
linked, but with lost RF signal.
DMX: On when DMX is present.
RDM: Flashes to RDM activity.
Ethernet: Flashes on Ethernet
activity.
CRMX Outdoor
k
L in
R F
X
D M w er w er
P o
P o
L o ck ck
M
R D
er n et
E th
Lower indicators
These two indicators remain visible
when the cover is fitted to provide
basic status information:
Green indicator: On when linked
and OK.
Red indicator: On if link lost or
unlinked.

CRMX OUTDOOR OPERATION INDICATIONS

When operating, the CRMX Outdoor units show different
indications depending on its mode and link status:
Transmitter
(regardless of link status)
RF Link
DMX
RDM
Lock Power
Ethernet
Receiver or repeater
showing a healthy link
with a transmitter.
RF Link
DMX
RDM
Lock Power
Ethernet
Easy one-button
operation. See
page 2 for details.
Receiver or repeater when not
linked with a transmitter.
RF Link
DMX
RDM
Lock Power
Ethernet
Receiver or repeater warning
about a link problem.
RF Link
DMX
RDM
Lock Power
Ethernet
