eldoLED TOOLbox pro Quick Start Manual page 2

Quick Start Guide TOOLbox pro and FluxTool v2.0.93

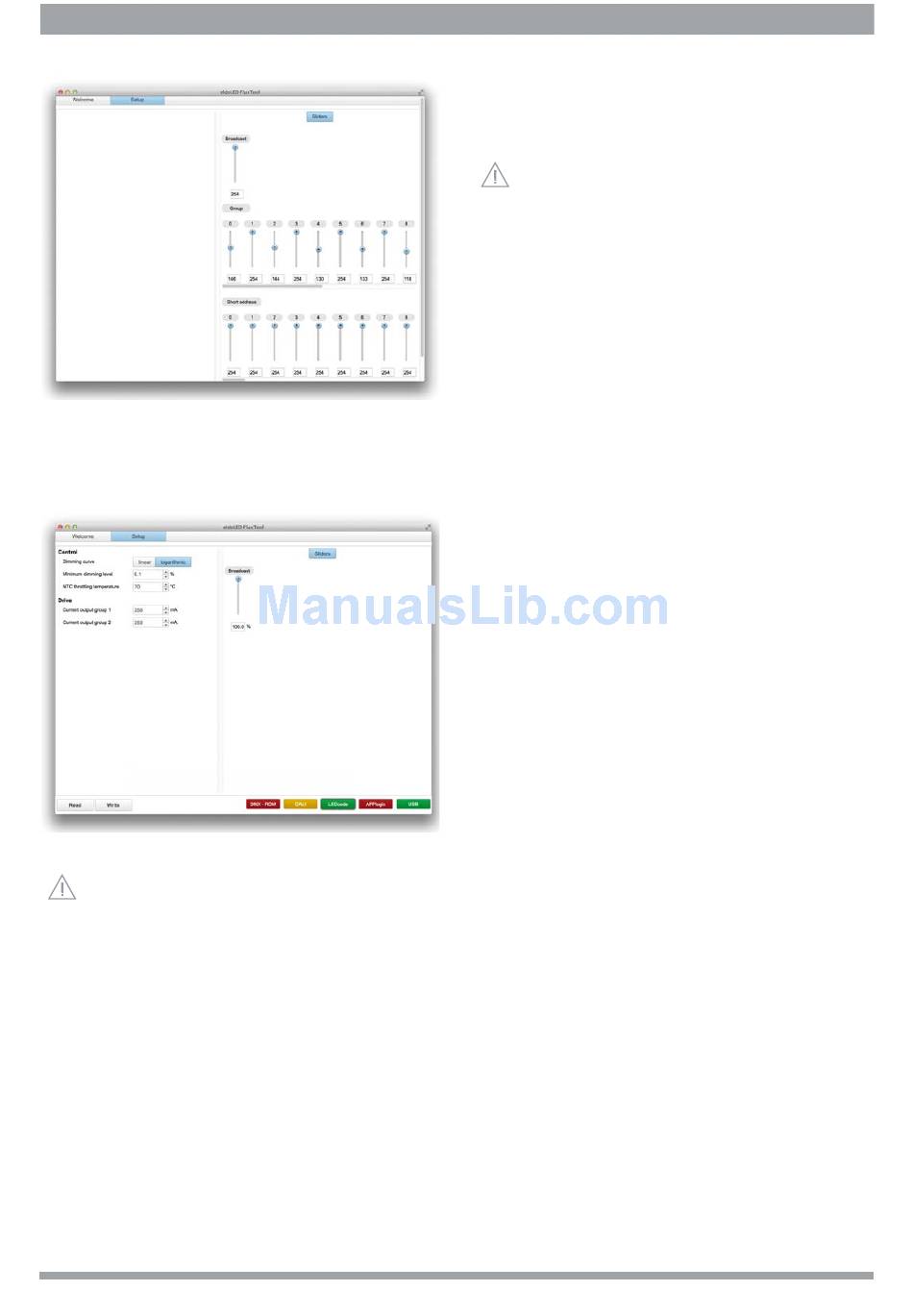

4b. Control via DALI menu in the Setup tab
DALI menu
4c. Configuration and control via LEDcode menu
LEDcode menu
At start-up, the settings are read from the driver. However,
when you connect a different LED driver, you do need to
refresh the settings: click the Read button at the bottom.
eldoLED B.V. Science Park Eindhoven 5125
eldoLED America One Lithonia Way
Use the DALI menu to test your DALI compatible luminaire. The Flux-
Tool's DALI menu does not have any DALI configuration or commis-
sioning capabilities.
Do not use this application as a DALI controller.
The DALI tab features several sliders:
Broadcast
Lets you set the same intensity for all DALI groups in one go.
DALI Group 0 - 15
Lets you set the intensity of the DALI groups. These groups are not
equivalent to your driver's LED output groups, but refer to the DALI
groups that your LED driver is associated with.
DALI Short Address 0 - 63
Lets you set the intensity of the DALI Short addresses.
The LEDcode tab lets you set:
Drive: Current output group
Lets you set the output current for each LED output individually.
Changes are saved to LED driver when the Write button is pressed.
Dimming curve
Lets you select a dimming curve to optimize dimming performance by
attuning the dimming curve to the dimmer type.
Minimum dimming level
Allows you to set a minimum dimming level. The range within which
you can set this value depends on your LED driver.
NTC throttling temperature
Lets you set the throttling temperature of the connected thermistor
(optional).
To load the actual driver settings into your FluxTool screen, click the
Read button. To save new settings to the driver for Dimming curve,
Minimum dimming level and NTC temperature, click the Write button.
The slider at the right-hand side lets you mimick a broadcast setpoint
to the connected LED driver.
