Smart SOS Tracker

User Manual

Table of Contents

Need help?

Do you have a question about the TT-TRACKER-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for TigerTech TT-TRACKER-01

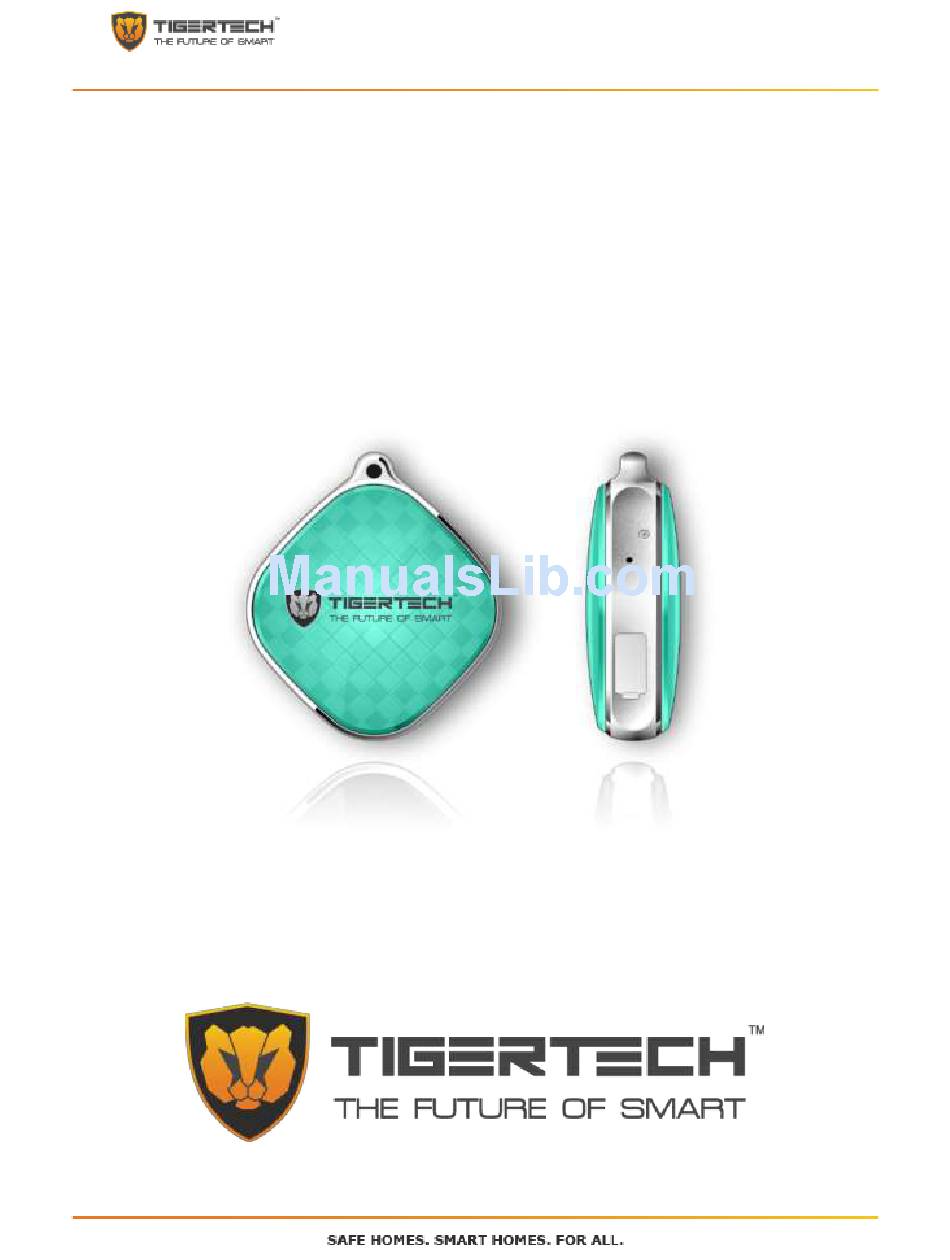

Page 1 Smart SOS Tracker User Manual...
Page 2 It can also be worn as jewelry by ladies. With the TigerTech SOS Tracker, you will enjoy complete piece of mind as you will know exactly where your loved ones or valuable assets are at any point in time and allows them to contact you even if they don’t have a cell phone.
Page 3: Product Details
In the box Items Quantity TigerTech SOS tracker Quick User Guide USB cable Forceps/Tweezer Product details...
Page 4: Pre-Installation Notes
Pre-Installation Notes 1. Please check that the equipment model that you have received is correct and that all the accessories are present. 2. Do not try to disassemble or modify the product to avoid damage to the product. 3. Charging the device: Insert the USB charging cable provided with the device into the charging port and connect it to a 5V –...
Page 5: Installation Steps
Installation steps 1. Please make sure that the device is in the “Power off” state. 2. Insert the SIM card into the slot as shown below. Please make sure that the Caller ID function and GPRS function on the SIM card is enabled and that the monthly data plan is a minimum of 30 min/month (or more) depending on your usage.
Page 6: Device Status
Using the Smart SOS Tracker Press the Power / SOS key for the device to power up. You will hear a chime when the device switches on. Please note that the device cannot be shut-down manually (using the Power button) when a SIM card is installed and the device is online, and it can only be shut down through the App.
Page 7: Other Features
Other features Positioning technologies used: GPS satellite positioning + AGPS / WIFI auxiliary positioning + LBS base station positioning Positioning accuracy: GPS - 5 to 15m, WIFI - 15-100m, LBS - 100-1000m IT IS IMPORTANT TO CHECK IF YOU ARE RECEIVING A GOOD GPS SIGNAL TO GET GOOD ACCURACY) Device size: 38 X 38 X 12 mm...
Page 8: Install The App
Install the App 1. Download the “AIBEILE” App on your phone for Android and IOS. Android 2. For PC：http://en.i365gps.com/ 3. For Android, you can download the app from Google Playstore by searching for "AIBEILE" 4. For iPhone, you can download the app from App Store by searching for "AIBEILE" 5.
Page 9 Using The App Live tracking As soon as you log into the App, you will be taken to the “Live Tracking” screen to see a Map View of the current position of the Tracker. The Live tracking function can be used to track the position of the Tracker as well as of the Smartphone.
Page 10 Geo-Fence Users can choose the Geo-Fence function in the App to set a virtual fence around any particular area on a map. If the device moves outside the set Geo-Fence, the mobile phone APP will display an alarm notification. To set the Geo-Fence, Click on the “More” option on bottom right of the “Live Tracking” screen. Then Click on “Geo-Fence”...
Page 11 Message All messages and alarms received from the Tracker are shown here. This includes the device number, the kind of message (emergency calls, alarm, low power alarm, Geo-fence alarm etc.) and the time stamp on the message. Click on the “Message” option on the top right of the “Live Tracking” screen. Settings This is to set up all the important information for your Tracker like Admin number, Emergency numbers, White-list numbers and more.
Page 12: Working Mode Setting
Working mode setting This is to set the frequency with which the Tracker uploads its position information. The higher the frequency of update, the more accurate the positioning data which also leads to higher battery consumption. There are three standard working modes. These can be set by the user through the settings menu in the App: 1.
Page 13 Admin Number Click “Admin Number” to enter Admin Phone Number for the Tracker. The Tracker will use this number as the Primary number to send all the Alarm information and notifications. This includes low power alarm, Geo-fence alarm and other alarm. The Admin number of the device can issue specific commands to the device through the App or directly through SMS commands.
Page 14: Change Password
Change Password Choose this option to change your password as soon as you log in the first time. Quick Troubleshooting Guide Issue faced Probable Cause Device is not enabled on app Please check if： 1. SIM card is not enabled 2.
Page 15 SMS SETTING COMMAND LIST FOR THE TIGERTECH SOS TRACKER Function Command Format Example Expected Response Current verno:G19F_V1.40_2016.04.12 pw,password,verno# pw,123456,verno# Version _14.26.38. Reset device pw,password,reset# pw,123456,reset# reset.. Restore factory pw,password,factory# pw,123456,factory# factory ok,reset.. settings Set password pw,password# pw,666999# [pw,666999#] ok! Change...
Page 16 Function Command Format Example Expected Response Center pw,password,center,phone pw,123456,center,18320880 center:18320880332.ok! number number# 333# Voice pw,password,monitor,phon pw,123456,monitor,667062 Monitor monitor ok! e number# number 3 SOS pw,123456,sos,number1,nu pw,123456,sos,667062,6661 [sos,667062,667063,667064#] number mber2,number3# 34,664214# SOS1 pw,password,sos1,phone pw,123456,sos1,667062# [sos1,667062#] ok! number number# SOS2 pw,password,sos2,phone pw,123456,sos2,666134# [sos2,666134#] ok! number number#...
Page 17 PRODUCT SPECIFICATIONS Category Specifications Dimensions 38.5X38.5X17mm Weight 22g without package, 130g with package box Colors White, Red, Blue SOS Button One button for Power & SOS calling GPS antenna Highly Sensitive ceramic active antenna GSM antenna FPC antenna Battery 450mAh SIM card slot 1 pc G-sensor...
Page 18: Important Safety And Handling Information
Please note that the positioning function will not work when you are out of network service zone. TigerTech does not undertake any responsibility for any losses of any kind and / or service disruption due to network failure or any other causes including force majeure causes.
Page 19 Child Hazards. Keep the device and its accessories out of the reach of small children. Keeping the device Within Acceptable Temperatures. The TigerTech device is designed to be operated in regular temperatures in India (-20C to 50C). Extreme Low-or high-temperature conditions might cause the Device to stop working properly.
