Insignia NS-HZ315 Quick Setup Manual

PACKAGE CONTENTS

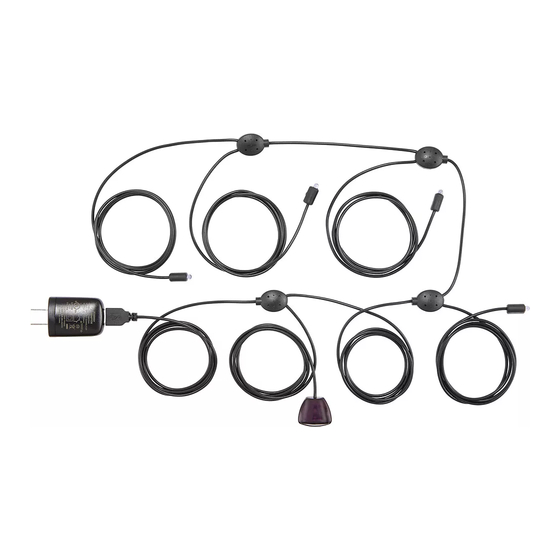

• In-Cabinet Remote Control Extender Kit
• AC adapter
• Quick Setup Guide
FEATURES
• Enables remote control of four Audio/Video (AV) devices that are
located behind closed doors, cabinets, or walls
• Simple to install and use
• Long cable lengths allow for AV devices to be placed up to
10 ft. (3 meters) from the remote control (IR) receiver
• Built‐in adhesive for easy attachment to AV devices

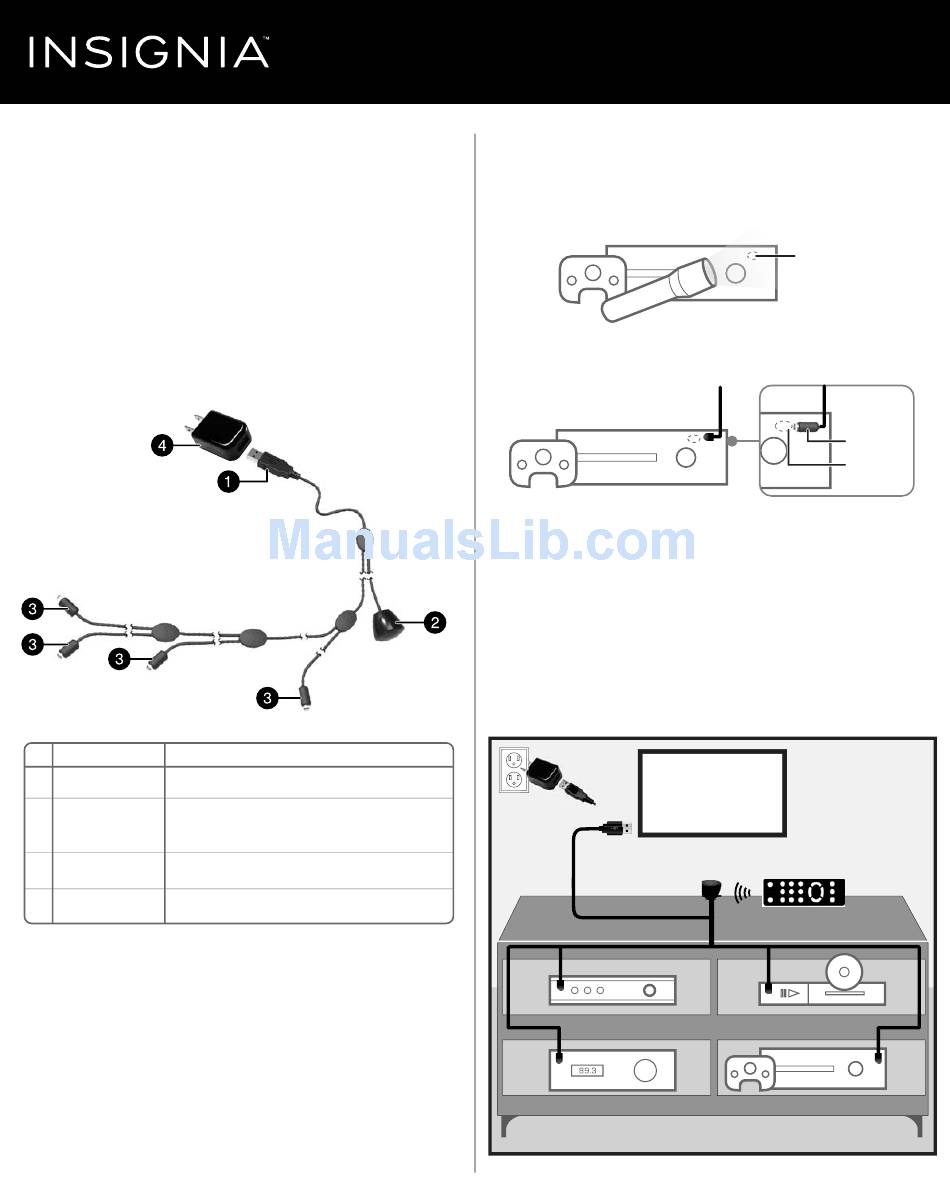

# DESCRIPTION FUNCTION
1
USB power connector Connect to the AC adapter or a USB port on the TV or monitor.
2
Remote control Receives the signal from the remote control.
receiver (IR)
3
Emitters (IR) Transmits remote control signals to the AV devices.
4
AC adapter Connect to a wall outlet.
Before using your new product, please read these instructions to prevent any damage.
Quick Setup Guide |
In-Cabinet Remote Control Extender Kit
SETTING UP YOUR EXTENDER KIT
1 Locate your AV device's remote control (IR) sensor. To find it, shine a
flashlight at the front of your AV device and look for an "eye" that
resembles the emitters on the cable. If you can't locate it, check the
documentation that came with your AV device.
2 Remove the adhesive backing from an emitter, then stick it close to
and pointed towards the remote sensor on your AV device.
3 Remove the adhesive backing from the remote control receiver, then
stick it to the front of your AV cabinet or on or near your TV. It needs
to be in the line-of-sight of your remote control. Be sure it does not
cover the remote control sensor on your TV.
4 Connect the USB power connector to either the TV's USB port or to
the AC adapter and then into a wall outlet.
5 Aim the AV device's remote control at the remote control receiver.
Note: The emitters and receiver work with infrared, not visible, light, just like
your remote control (so you won't see any lights blinking or flashing).
AC adapter AC adapter
OR
USB
connector
Emitter
Emitter
TV
AV device remote control
Remote control receiver
Emitter
Cable/STB
AV receiver
NS-HZ315
Device remote
IR sensor
Emitter
Device remote
IR sensor
Blu-Ray/DVD
Emitter
Gaming device
