The IRD-1 Modulator/Demodulator

The IRD-1 is bidirectional IR modulator/demodulator. It is designed to be part of a chain of signal transmission where an IR signal must be modulated or demodulated to accommodate devices that require either
a modulated or a demodulated signal, such as the TP-574, TP-573, other Kramer IR extender transmitter/receiver, or a Kramer RC series room controller.
The IRD-1 is powered externally by a compatible device, for example, the TP-573. Power is received via the 3.5mm mini jack sockets on the IRD-1.

Connecting the IRD-1 Modulator/Demodulator

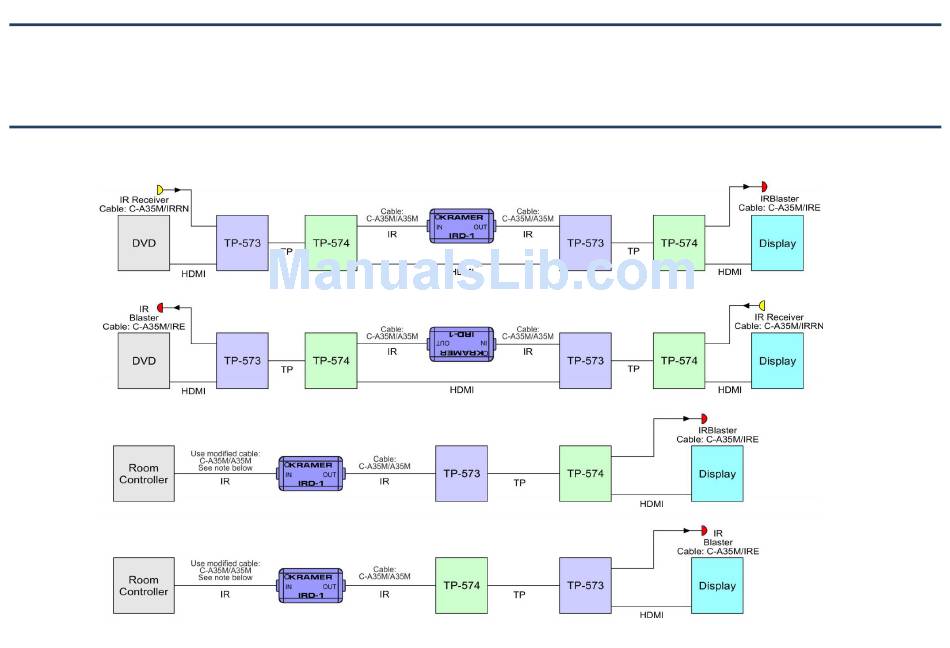

The IRD-1 can be connected as show in the following examples:
