830 SERIES QUICK INSTALLATION GUIDE
The SV-830 dome and wedge cameras are compact mobile-rated cameras that mount easily in a variety of
orientations. High-intensity IRs and 420 TV lines of resolution allow for high quality images in multiple light conditions.
Use the following procedure to install the SV-830 Series Day/Night Camera.
Installation Guide
The customer should thoroughly read this guide before
operating this product.
Safety Precautions
To reduce the risk of electrical shock, disconnect the battery
from the electrical system of the vehicle before starting the
installation.
Before inserting fasteners into the mounting surface, ensure
that the underside of the mounting surface is clear of
equipment that might be damaged by the screws.
Installation
1. Use the selector switch located on the small printed circuit
board (PCB) to select if the red LED will blink or remain off
when the camera receives power.
2. Using the base as a template, tap or otherwise mark four
screw holes in the desired mounting location.
3. Drill a 0.875 inch hole in the approximate center of the four
marked screw holes to thread the cables through.
4. Thread the cables through the drilled hole and use self-
tapping screws or rivets to secure the base to the desired
mounting location.
5. Connect the cables to the MDVR unit.
6. Loosen the security screws on the camera gimbal to adjust
the camera angle to the desired field of view. This might
require the use of an optional external monitor connected to
the MDVR unit. Once completed, tighten the security screws
in place.
7. Connect the LED/Microphone cable in the enclosure to the
PCB on the base.
8. Secure the enclosure over the camera and base with the
four included tamper-resistant screws with a size T10 TORX™
screwdriver.
6100 W. Sam Houston Pkwy. N.
Houston, TX 77041-5113
GUIDE

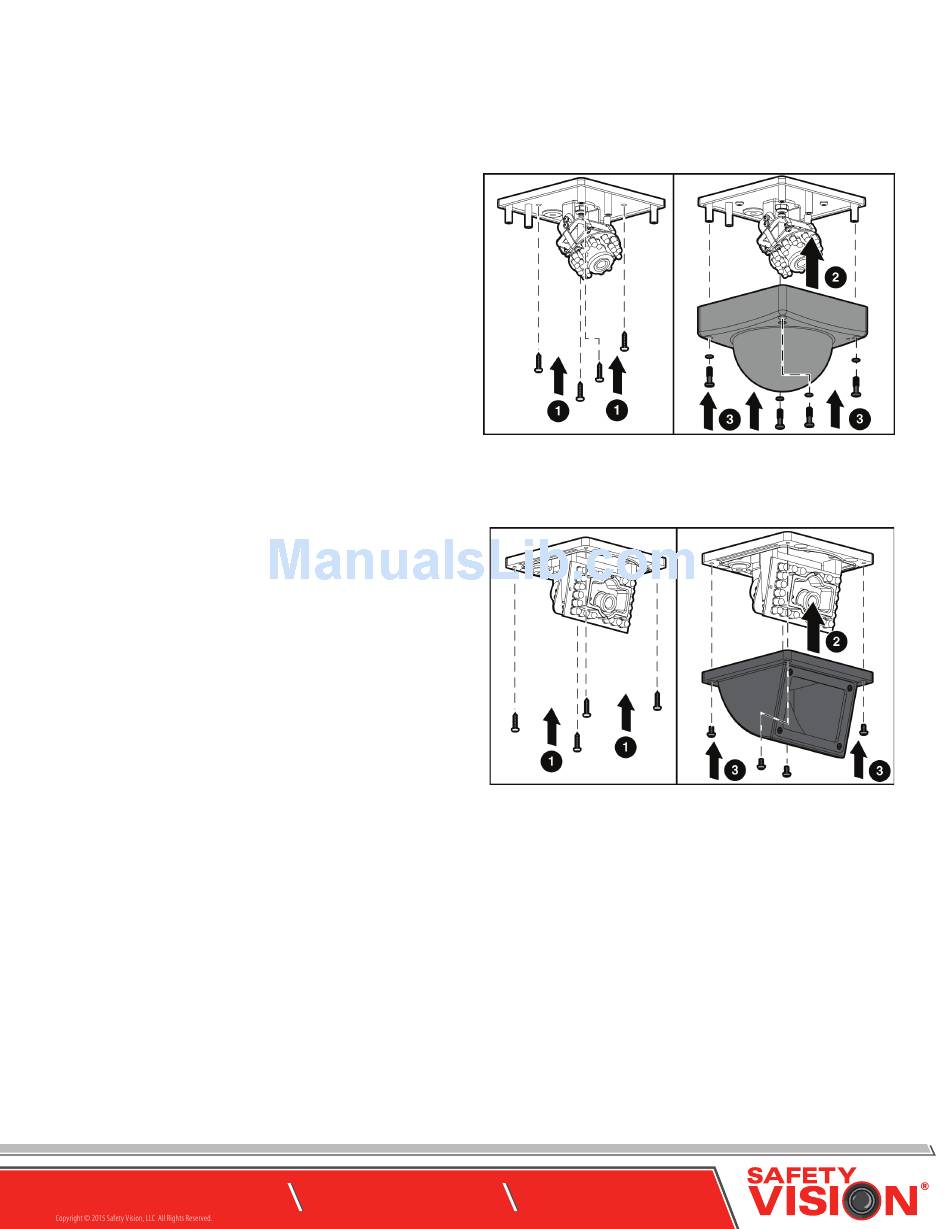

Dome Enclosure
Wedge Enclosure
