Summary of Contents for Audio Authority 1800

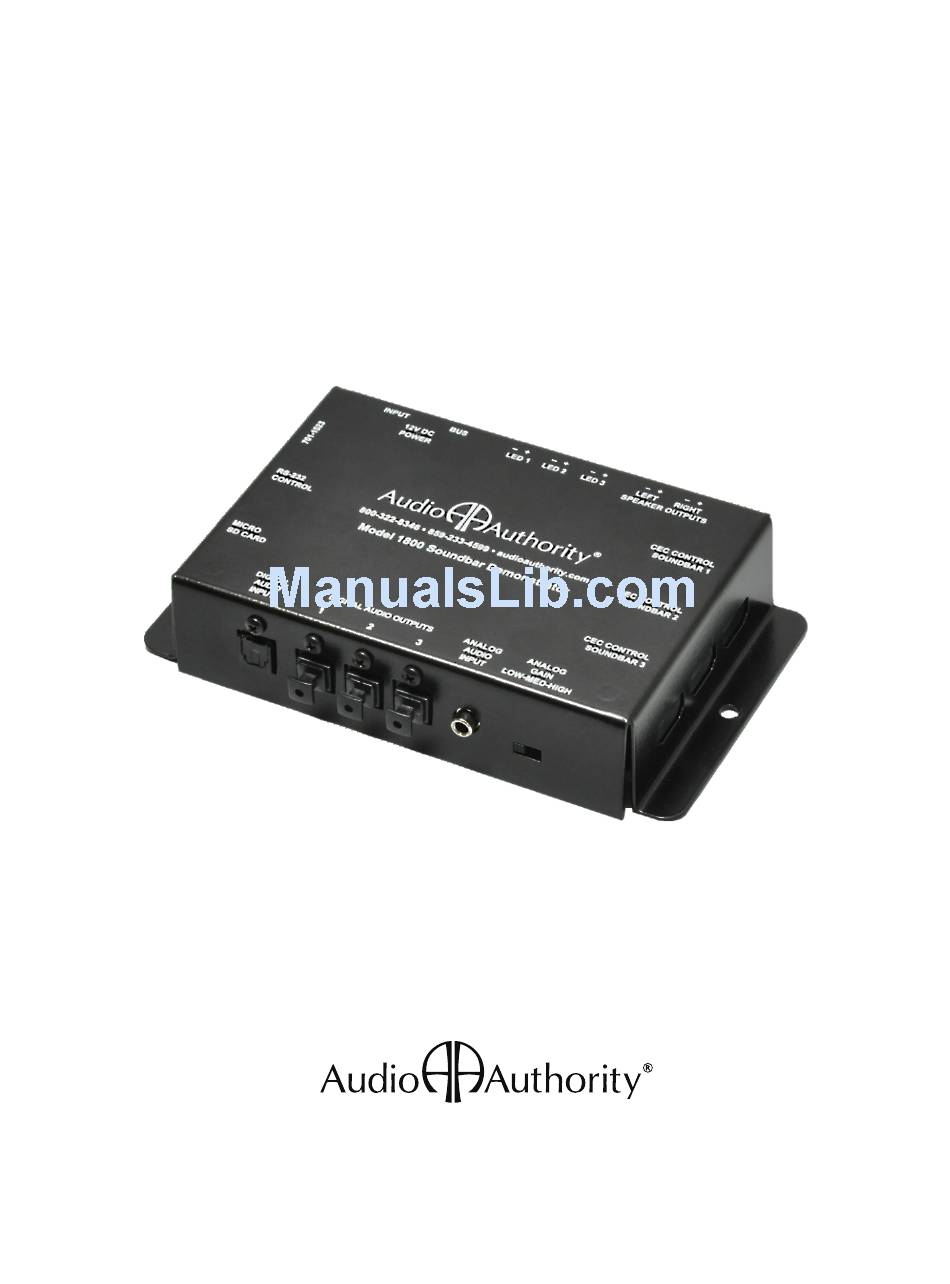

- Page 1 User Manual Model 1800 Soundbar Demonstrator with Lighting Sync...
- Page 2 LEDs with product selections. Demonstrate three soundbars using digital (optical) audio, with an option for rear speakers connected to the amplified outputs of the 1800. Control via RS-232 using any compatible device, such as a Brightsign Model XD1033 media player.
- Page 3 The RS-232 Control port connects via modular RS-232 to any compatible device. RX is located on pin 3, TX on pin 6, and GND on pin 7. Use an Audio Authority serial to System Bus adapter to connect devices such as a TS04 touch panel for control.
- Page 4 • Connect HDMI cables from the 1800 to soundbars for CEC control. • Connect a digital audio source to the 1800 (also connect analog audio if rear speakers are present). • Connect digital audio output cables from the 1800 to audio soundbar optical inputs.
