Model ATC-1000WF

WiFi Solutions for Serial Connections

User Manual

Updated on 2013/11/05

Tel: +86 755‐8345‐3318

Fax:+86 755‐8355‐5891

http://www.szatc.com

Table of Contents

Need help?

Do you have a question about the ATC-1000WF and is the answer not in the manual?

Questions and answers

Summary of Contents for ATC Technology ATC-1000WF

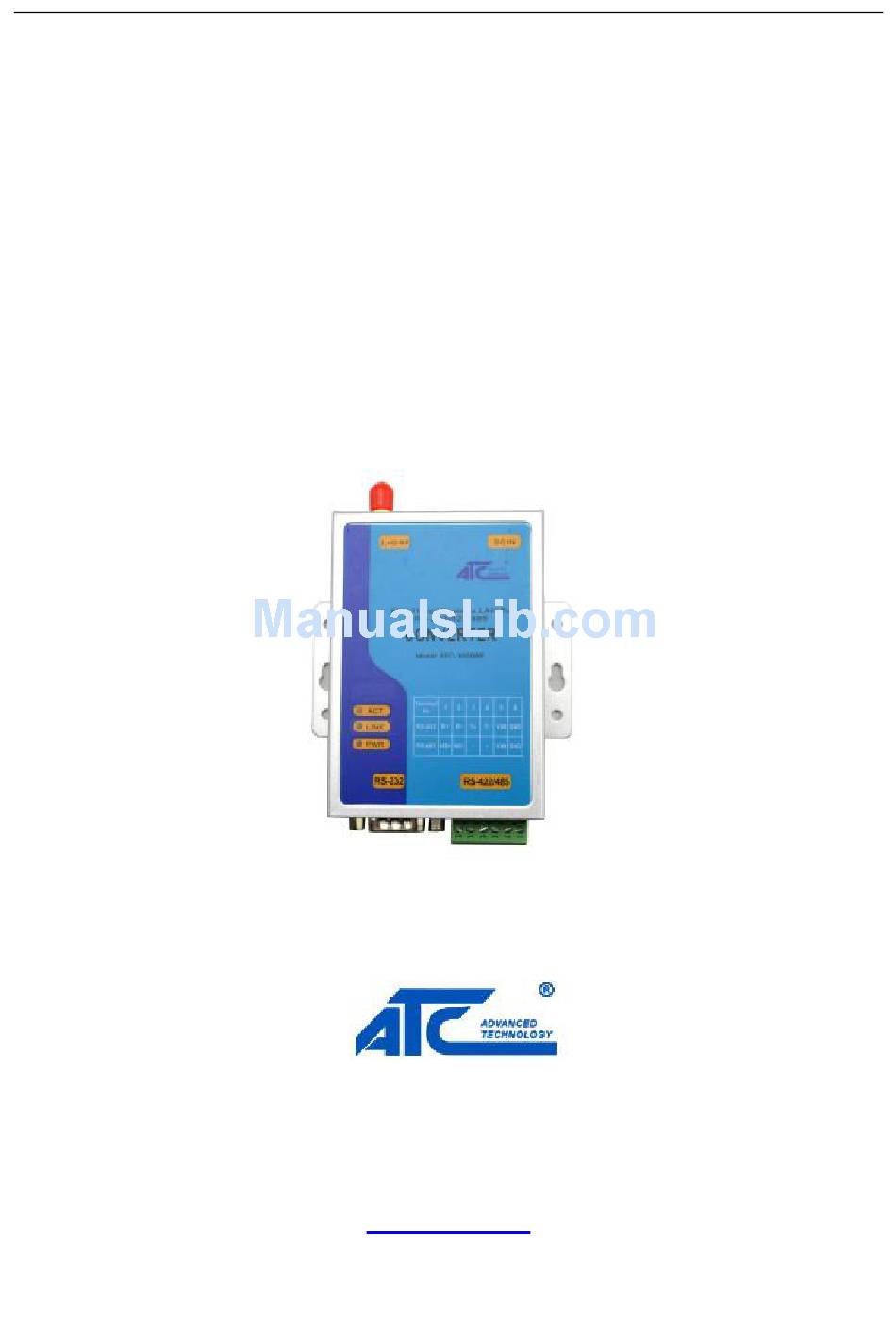

Page 1 Model ATC-1000WF WiFi Solutions for Serial Connections User Manual Updated on 2013/11/05 Tel: +86 755‐8345‐3318 Fax:+86 755‐8355‐5891 http://www.szatc.com...
Page 2 Important Announcement The information contained in this document is the property of SHENZHEN ATC TECHNOLOGY CO.,LTD. and is supplied for the sole purpose of the operation and maintenance of products of SHENZHEN ATC TECHNOLOGY CO.,LTD. No part of this publication is to be used for any other purposes, and it is not to be...
Page 3: Table Of Contents
Contents 1 Introduction ..........................1 2 Hardware Setup......................... 2 2.1 LED Indicators........................ 3 2.1.1 LINK LED......................3 2.1.2 ACT LED ......................3 2.1.3 PWR LED ......................3 2.2 Installation Procedures ....................3 2.3 Power..........................4 3 Configuration..........................5 3.1 Configuration Introduction ....................5 3.2 Configure via Tera-Term ....................
Page 4: Introduction
GPRS Solutions for Serial Connections 1 Introduction ATC-1000WF wireless serial device servers give you an easy way to connect your RS-232/485/422 serial device to WLAN. The RS232 connection application has been used for a long time. RS232 cable has limitations in distance. WLAN has become a worldwide standard protocol for wireless application.
Page 6: Led Indicators
Description Power on Power off Table4. PWR LED Message 2.2 Installation Procedures Installation of antenna: Screw the SMA male pin of the antenna to the female SMA outlet of the ATC-1000WF tightly. Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 7: Power
Uses a RS232 or RS422 or RS485 data cable connect the ATC-1000WF to user’s device. 2.3 Power The power range of ATC-1000WF is DC 9~24V.We recommend use to use the standard DC 9V/1A power adapter. Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 8: Configuration
User Manual GPRS Solutions for Serial Connections 3 Configuration Before configuration, we should connect the ATC-1000WF to a PC with a RS-232 cable as following. 3.1 Configuration Introduction For ATC-1000WF you can configure via webpage or send command by Tera-Term.
Page 9: Detail Description For Command
3.2.1 Detail description for command Following will introduce some commonly used commands. Ø When you power on ATC-1000WF,enter this command turn to CMD mode. Ø AXCmd2Net Enter this command, ATC-1000WF will return back to data transmit mode.
Page 10: Configure By Webpage
Enter this command to access a point available. The ID number must be an index in the site survey result list. Ø ipconfig Use this command to check current network parameters of ATC-1000WF, such as IP address,subnet address and gateway address. Note: Every command should be send out with “<CR>” ---- the “Enter” key on keyboard.
Page 11 “abnerliu.vicp.cc” or “192.168.1.200” in this field. This page supports 4 command bottoms: Ø Apply : submits the current settings on this page to the device server. Ø Cancel: cancels the changed settings on this page. Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 12: Advanced Page
This page supports 3 firmware upgrade bottoms.Note that before user performs the firmware upgrade,one should start TFTP server. Ø Upgrade_Bootldr: upgrades the boot-loader firmware and then reboot the device server. Ø Upgrade_MCPU: upgrades the MCPU firmware and then reboot the device server. Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 13: Security Page
On this page, the Accessible IP Setting must be used with care. User should enter correct accessible IP address(s) before enabling this function. The new configuration will take effect after the device server reboots. Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 14: Wifi Page
Key Index 0~3 fields will be displayed according to Key Length field being selected, either 64 bits or 128 bits (i.e. WEP-64 or WEP-128). When clicking Apply, a confirmation window will appear. User can press OK to continue the operation, or Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 15: Wifi Wiazrd Page
WiFi Link Settings sub-page Ø Encryption Selection sub-page Ø WiFi Network Advanced Settings sub-page Ø The Wizard Complete Successfully sub-page 3.3.6.1 WiFi Link Settings sub-page This sub-page provides basic configuration for device server’s WiFi network. Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 16 WiFi network. The Key Index selects the active key to use among the 4 Key Indexes. Note that the key length must be 10 characters for WEP 64 bits or 26 characters for WEP 128 bits. Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 17 GPRS Solutions for Serial Connections 3.3.6.4 The Wizard Complete Successfully sub-page This sub-page displays the new WiFi settings user has configured but not yet saved to ATC-1000WF device. Now, user can review and confirm them. Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 18: Status Page
This section describes the detailed information of various software functions available, such as AXR2W Configuration Utility. 3.4.1 Device Monitor Tool This section describes the detailed functions of Device Monitor tool in AXR2W Configuration Utility. 3.4.1.1 Function Window Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 19 Enter the IP address of the device to search the device. E.g.:192.168.1.100 3.4.1.3 Device Setup Dialog When clicking Device Setup, the Device Setup dialog will pop up with 4 tabs: Network Setting, Serial Port Setting, WiFi Setting, and DHCP Server Setting. Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 23 3.4.1.4 Firmware Upgrade Dialog Note that before user performs the firmware upgrade, one should start TFTP Server tools first. Ø Select the target ATC-1000WF RS-232 to WiFi device from the Devices List. Ø Click Firmware Upgrade to bring up the Firmware Upgrade dialog.
Page 24: Virtual Serial Port
Step2: Select the added Serial Port from the Ports List.And then click setting. Step3: Select Protocol and work mode,enter the IP address and port number of ATC-1000WF which you want to make a Virtual Port.Then press OK. Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
Page 25: Configure Via Telnet
For example,under DOS prompt,user can enter “telnet 192.168.1.100”.Then the Telnet client will establish the connection with ATC-100WF’s Telnet server and the message “username: “ will show up, if successful. Follow the steps above to login the console of ATC-1000WF. The command under telnet is same to the command under serial port.
Page 26 User Manual GPRS Solutions for Serial Connections Room809, Taikang Building,Tairan Industrial&Trading ZoneFutian District, Shenzhen,P.R China Tel: +86 755‐8345‐3318 Fax:+86 755‐8355‐5891 E-mail:mailto:tech@szatc.com WEB:http://www.szatc.com Copyright © 2013 SHENZHEN ATC TECHNOLOGY CO., LTD.
