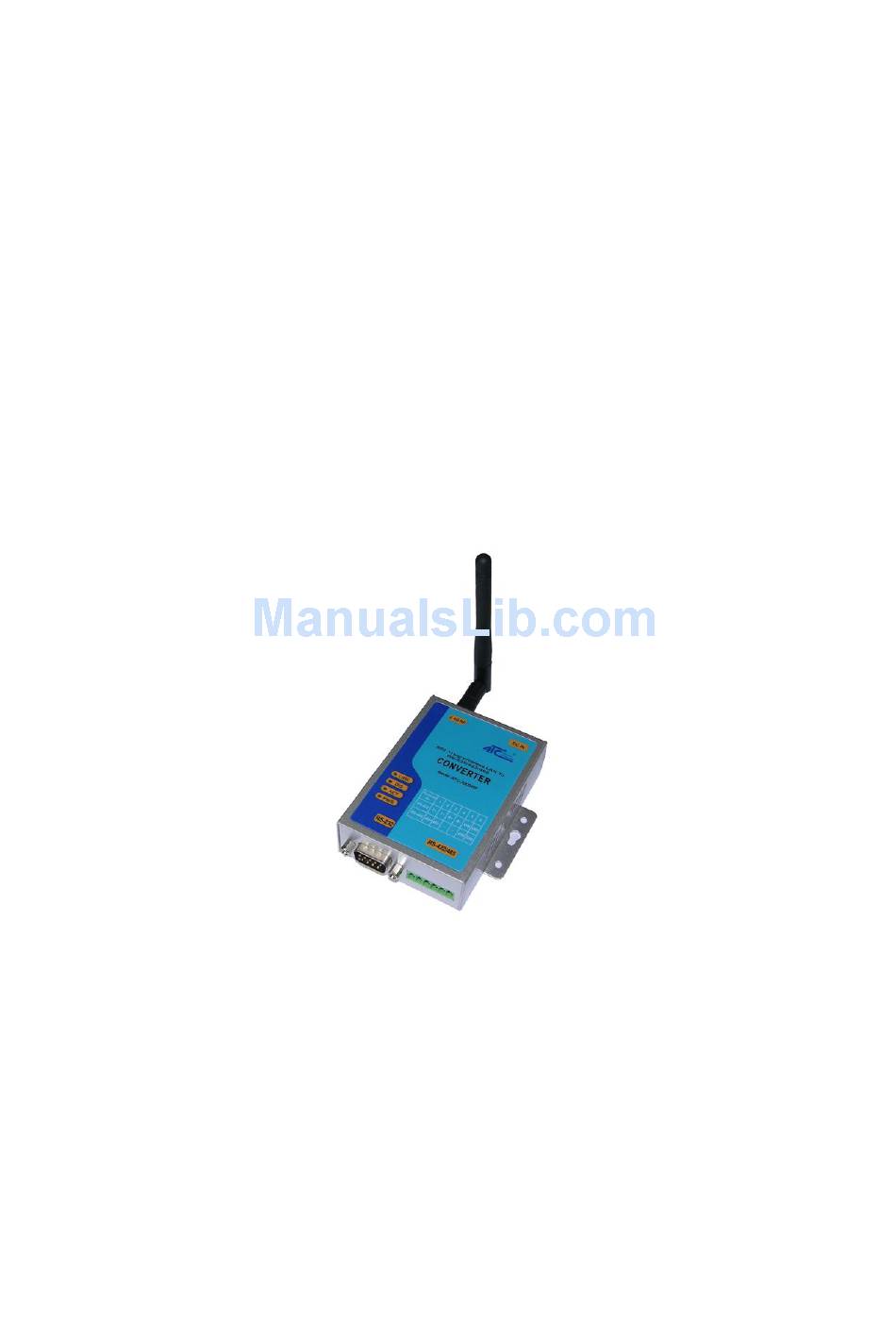

Page 1 ATC-2000WF User’s Manual Copyright 2007 ATC Technology Co., Ltd. Rev 1.0...
Page 2 ATC 1.0 Introduction ATC-2000WF Series of wireless serial device servers give you an easy way to connect your RS-232/422/485 serial devices to a WLAN. The 1-port ATC-2000WF and 2-port ATC-2002WF are ideal for environments where a LAN is not available, or where serial devices are moved frequently.
Page 3 Security: WEP (Wired Equivalent Privacy) 64 and 128 bit encryption Network Mode Infrastructure mode, Ad-Hoc mode 1.4 Serial Communication Parameters No. of ports:1 (ATC-2000WF) Interface: RS-232/422/485 Port Type:DB9 Male and six bit terminal Baud Rate Options: 9600, 38400, 57600 bps...
Page 4 VIN- VIN+ 1.6 Connecting the Hardware This section describes how to connect ATC-2000WF to serial devices for first time testing purposes. We cover Wiring Requirements, Connecting the Power, Connecting to the Network, You should also pay attention to the following items: Use separate paths to route wiring for power and devices.
Page 5 WLAN Disconnect Setup Command 2.0 Initial Configuration When setting up your ATC-2000WF for the first time, the first thing you should do is configure the IP address. Select one of the initial IP Address configuration methods to configure 2.1 Factory Default IP Address...
Page 6 .Monitor. function—may not work properly. 6. Press the “ ←” backspace key (located in the upper right corner of the keyboard) continuously while powering on the ATC-2000WF 7. Sending a continuous “ ←” backspace string to ATC-2000WF triggers it to switch...
Page 7 IP settings. 9.Choosing the Proper Operation Mode In this chapter, we describe the various ATC-2000WF operation modes. The options include an operation mode that uses a driver installed on the host computer, and operation modes that rely on TCP/IP socket programming concepts.
Page 8 RMODE x Where x is CLIENT or SERVER setting for this device RIP xxx.xxx.xxx.xxx Where x is Server Target Remote IP when this device is in Client mode. RPORT xxxxx Where x is Server Target Remote PORT when this device Client mode. Enter Command Mode SetUpWLAN Gatekeeper Command Entry String Exit and Save Settings Commands...
