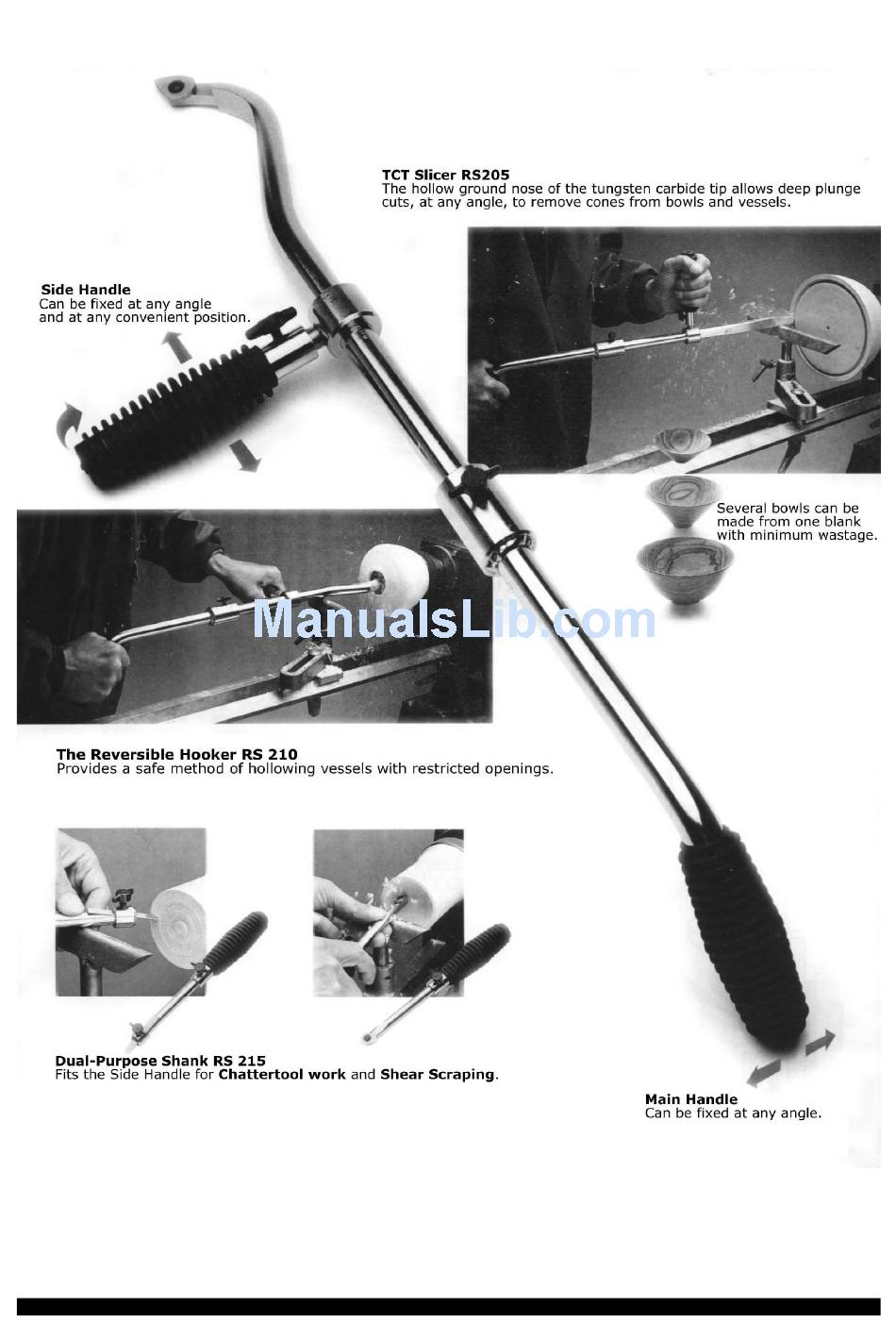

- Page 1 RS2000 SYSTEM Instruction Manual Page 1...

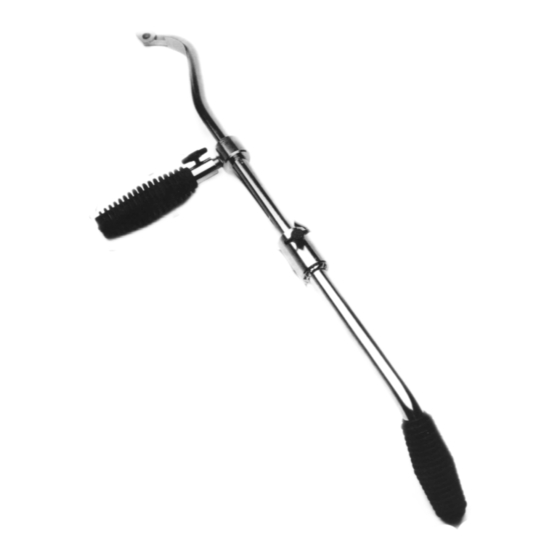

- Page 2 TCT SLICER RS205 The hollow ground nose of the tungsten carbide tip allows deep plunge cuts, at any angle, to remove cones from bowls and vessels. The Slicer can also be used as a Several bowls can be made heavy-duty parting tool. The Slicer should be mounted in the Main Handle with the from one blank with minimum Side Handle assembled at a convenient position on the Slicer blade.
- Page 3 Turning several bowls from one blank Fig 3. Having produced the picture / mirror frame, replace the bowl blank and shape the outside. NB. The shape illustrated (fig.3) assumes reversed holding with spigot chuck -alternatively, a dovetailed recess could be cut to accommodate expanding dovetail collets.
- Page 4 THE REVERSIBLE HOOKER RS210 This tool enables internal shapes to be cut safely. Hitherto, this work was either impossible, extremely difficult or even dangerous! The special hook design, fitted with the multi - purpose HSS Cutter RS222, allows you to make both aggressive roughing cuts and also finishing cuts.
- Page 5 Fig 5a. Rough out the majority of the inside using the small aggressive tip of the HSS cutter -or use the Swivel Tip. Fig 5b. The HSS cutter may be rotated by slackening the Allen cap screw select the larger curves for finishing cuts. Fig 6.
- Page 6 Dual Purpose Shank RS215 The Dual-Purpose Shank RS215 (as a scraper) The Dual Purpose Shank mounts directly into the Side Handle RS203. The nose of the shank is fitted with a No. 10 UNF Alien cap screw for holding the HSS Cutter RS222.
- Page 7 Chattertool Design Variations V Grooves Linear Patterns Using the cutter on Using the same speed and centre at several fixed cutter length will produce a positions will give a finer texture at B than at A variety of patterns since the surface speed is depending upon length slower.
