Sherlotronics RPT-800_V2 Instruction Manual

Repeater unit
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction manual

REPEATER UNIT

Model: RPT-800_V2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RPT-800_V2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sherlotronics RPT-800_V2

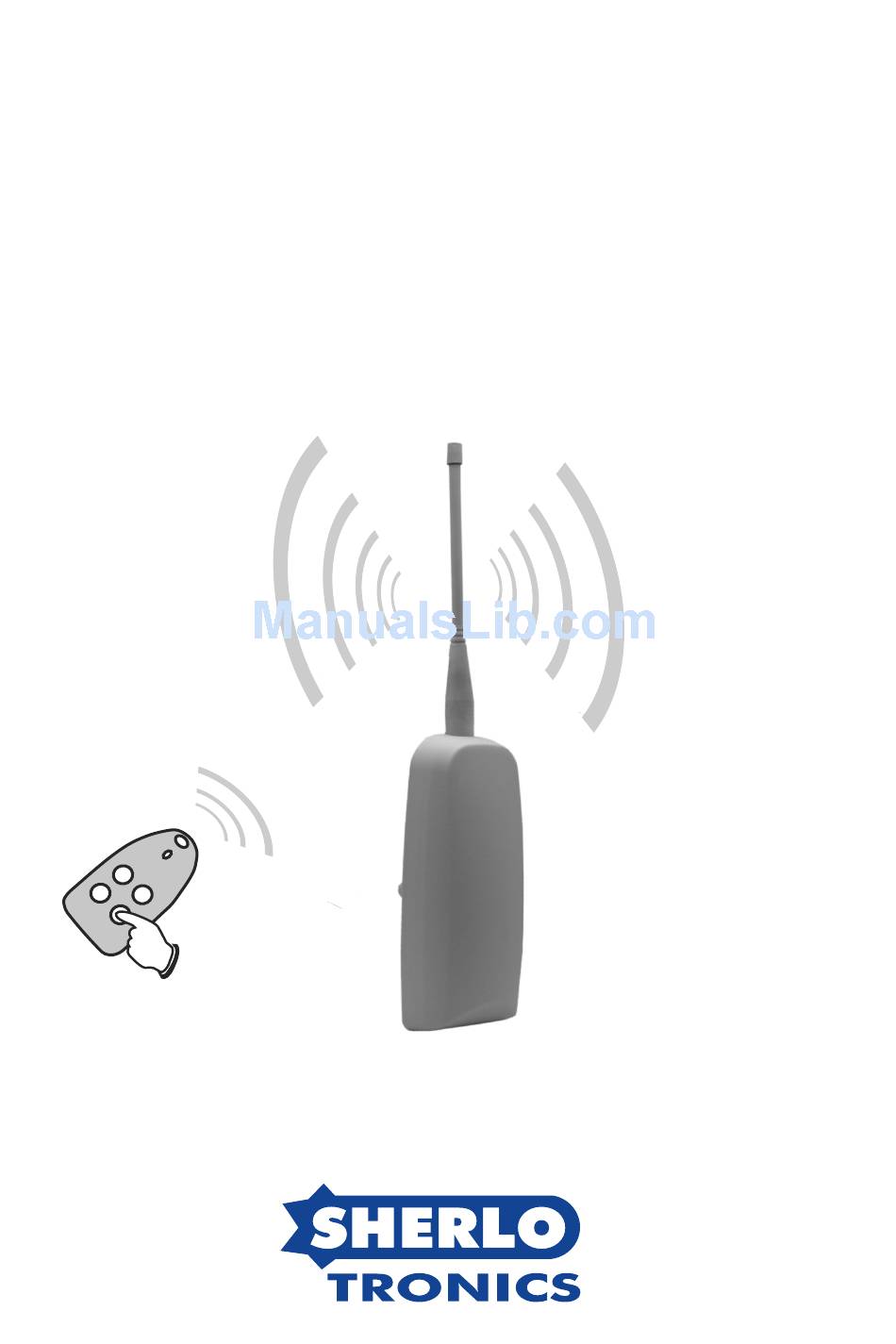

  • Page 1: Repeater Unit

    Instruction manual REPEATER UNIT Model: RPT-800_V2...

  • Page 2: Specifications

    The Repeater unit will now only Repeat signals that are LEARNT into its memory device. A maximum of 3992 Remotes may be learnt in. The Repeater is compatible only to the Sherlotronics range of Code-hopping encryption transmitters.
  • Page 3 OPENING & MOUNTING THE HOUSING: The plastic housing is splash proof, and may be mounted externally if required. The receiver should be mounted Vertically for best performance. Ensure that you do not mount the unit close to electric fences cables or energizers, as these products produce extreme levels of interference and may reduce the performance of the product.

  • Page 4: Wiring Detail

    WIRING DETAIL: The Repeater should be wired to a 12V Power-supply. The LEARN input should be wired down to a easy to locate position so that you will be able to easily place the Repeater into LEARN mode without having to climb ladders or go into a roof.

  • Page 5: Auto Learn

    WIRING DETAIL: The Repeater should be wired to a 12V Power-supply. The LEARN input should be wired down to a easy to locate position so that you will be able to easily place the Repeater into LEARN mode without having to climb ladders or go into a roof.

  • Page 6: Programming The Repeater

    PROGRAMMING THE REPEATER: To AUTO LEARN or program in the remote control signals to the units memory, simply connect the two AUTO LEARN terminals together. Once a signal is learnt in the unit will flash the Rx LED followed by the Tx LED. Once all the remotes are programmed, you can disconnect the wires connected to the AUTO LEARN terminals.
  • Page 7 SYSTEM ALIVE / SUPERVISION FEATURE: It is recommended that you enable this function if you are installing a Wireless Mimic base unit Model: MB3000 Ver4, as the Mimic base unit will monitor the system alive signals from each repeater. If a Repeater malfunctions or is removed from the system the Mimic base will report the problem within a 24 hour window time period.
  • Page 8 SHERLOTRONICS will replace or repair, at its option within a reasonable period of time, after it receives the product, any part that proves to be defective in materials or workmanship. The cost of parts and labour are included.
