Maplin Gadget N35HN Instruction Manual

This power meter measures energy use and calculates the running costs of household appliances. This helps you to
reduce your electricity bill and reduce carbon emissions. It lets you know which appliances are the worst energy-
guzzling offenders so that you can work out ways to limit their use.
Power Meter
Please read the following instructions carefully before connecting electrical appliances to the meter.
WARNING!
Do not plug two or more meters together!
Indoor use only!
Ensure you position the power meter so that it can easily be disconnected from the mains.
The power meter measures the amount of power from up to 5 controlled sockets.
IMPORTANT
Always ensure the plug of any appliance is fully inserted into the plugs in the meter. If the meter requires cleaning, remove from
the mains power and wipe the meter with a dry cloth.
LCD POWER METER FUNCTIONS:
1. MASTER CLEAR: Clears all data in the memory including current time and all programs
2. UP: Set current time, price, price programs, maximum overload current . Use with SET button to change between 12 / 24 hour
mode when the clock is being displayed.
3. SET: Set current time, price, price programs, maximum overload in conjunction with the UP button.
4. FUNC: Change between the different modes on the display.
GENERAL FEATURES:
1. Display current clock.
2. Display line voltage.
3. Display line current.
4. Display line power.
5. Display and memory peak line power.
6. Display and memory accumulative total electricity usage.
7. Display and memory total on time and total electricicty cost,.
8. Display and memory total on time and total electricity cost at price tariff 1.
9. Display and memory total on time and total electricity cost at price tariff 2.
10.Display line frequency.
11.Display power factor.
12.Adjust the maximum overload current and maximum overload warning settings.
13.Adjust the price / kWh
14. Set combinations of days or blocks of days as follows:
MO/ TU/ WE/ TH/ FR/ SA/ SU/ MO,TU,WE,TH,FR/ MO,TU,WE,TH,FR,SA/ SA,SU/ MO,TU,WE,TH,FR,SA,SU.
BATTERY
A rechargeable battery is included to save data when the meter is not connected to the mains.
THE LCD DATA DISPLAY:
Press the FUNC button to display the following data:
VOLTac→AMP→WATT→MAX WATT→KWh→CO2→TOTAL PRICE;TOTAL ON TIME→PRICE1 ON TIME→PRICE2 ON TIME→VOLT
↑_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ ↓
1.On first use (or on switching on after replacing the battery), The meter will display current time, line voltage and frequency
2. Press FUNC button once and release, the meter will display current time, line current and power factor
3. Press FUNC button once again and release, the meter will display current time, real power and power factor
4. Press FUNC button once again and release, the meter will display max. line power and the amount of time spent in this status.

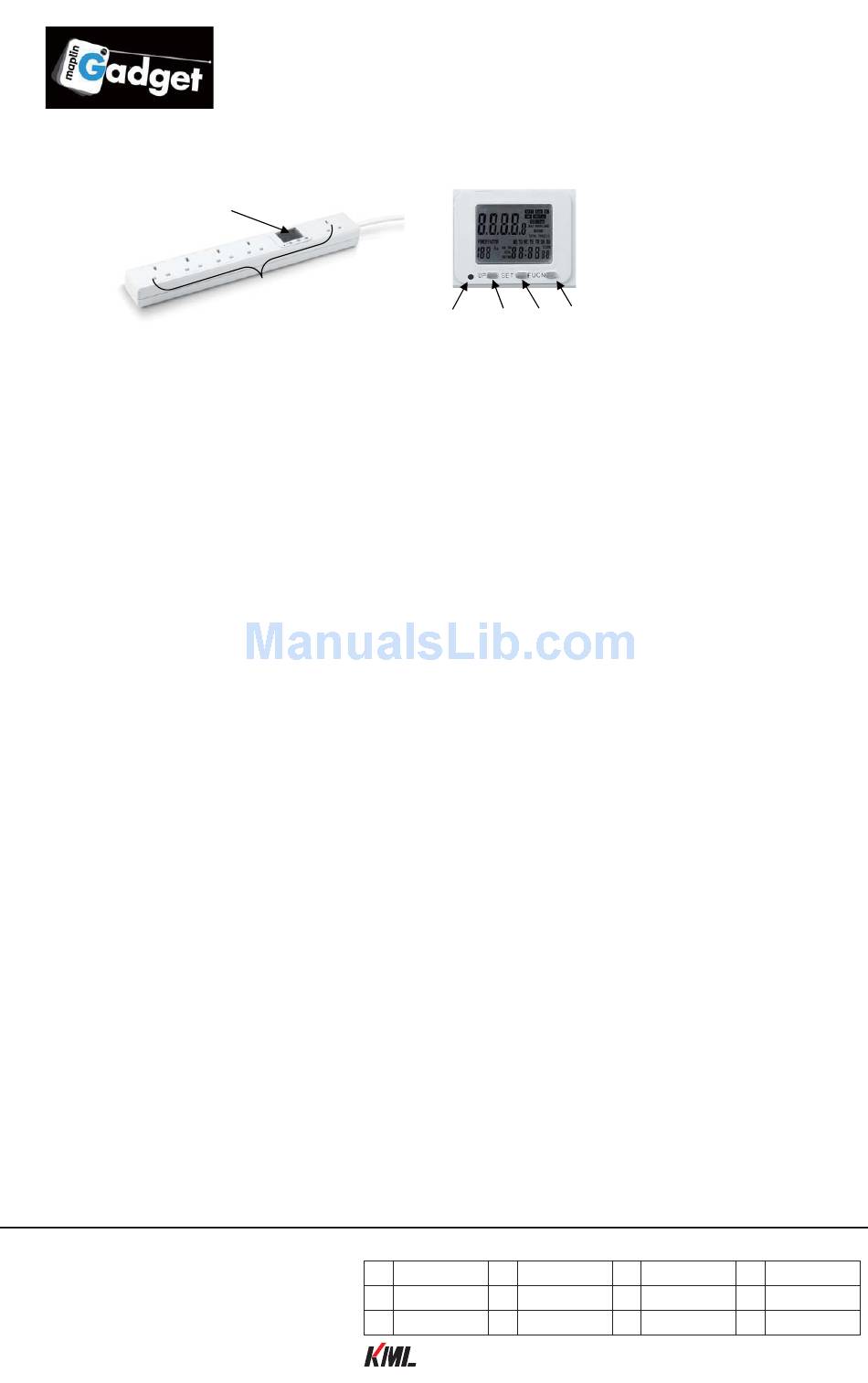

Instruction Manual
Power Stip with Energy and CO2 Meter
Order Code: N35HN
5 controlled sockets
