Summary of Contents for IMRELAX IM-MH230 BEAM 7R

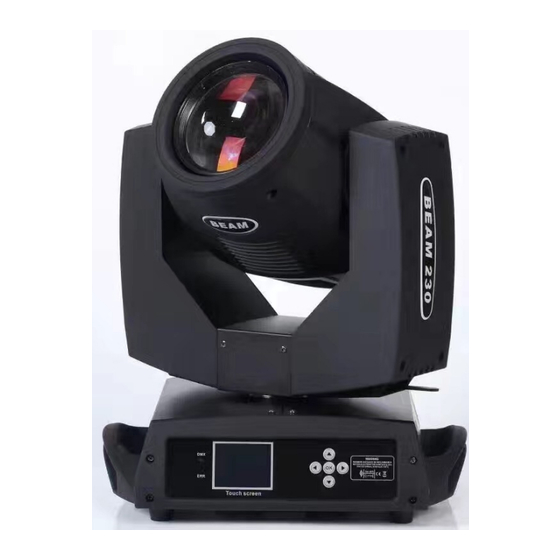

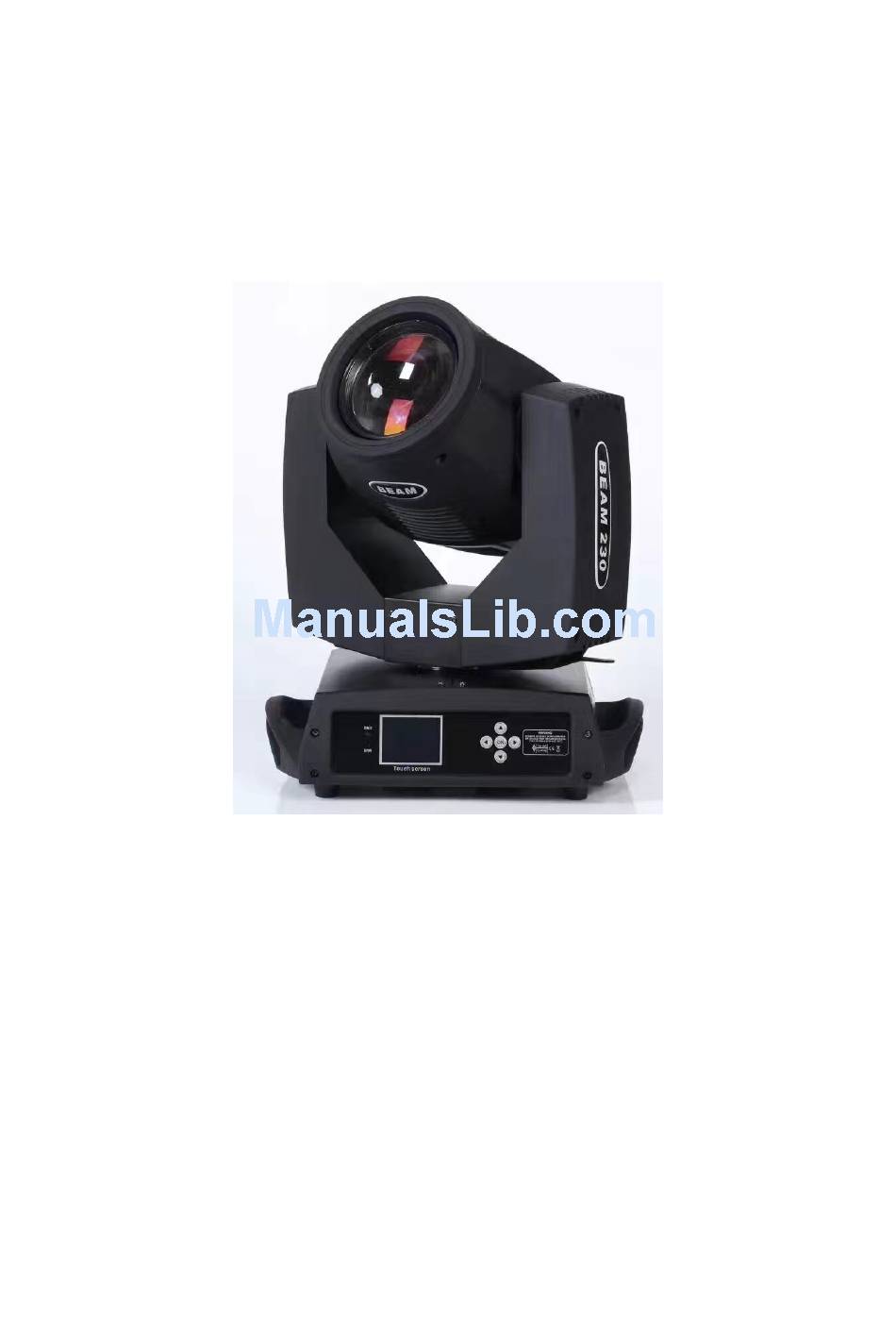

- Page 1 IM-MH230 BEAM 7R User manual...
-
Page 2: Menu Description
IM-MH230 BEAM 7R menu description menu structure Ø Main ----set ----run mode ----DMX address ----Channel Mode ----sound Regulator ----Invert Pan ----Invert Tilt ----Pan-Tilt Swap ---- Pan-Tilt Encoder ----No DMX signal ----Display ----Lamp ON@ Start up ----Screen autorotation --RESTORE DEFAULTS manual ---color... - Page 3 --Reset Calibration --Zero point correction --Lamp Life Hours --Lamp Hours Clear -- total time switch lamp --this time switch lamp -- Chinese-English shift -- Screen Rotation...
- Page 4 Ø setting up options explain operational slave： Receiving DMX signal from controller or from Master fixture mode Random auto sound control DMX address 1~512 Press "ok" button to enter edit state.At this point is selected one hundred, press the "up" "down" key to change the address code.Press the "ok"...
- Page 5 manual control Ø This interface is used to control the current fixture。 Manual menu will according to the standards set by the Settings menu 16 channel or extended 20 channel model, the corresponding display 16 channels or 20. option explain 1CH.
- Page 6 system information Ø options explain software version The current software version DMX channel Into the interface, display as a percentage value and channel value for viewing System error If red indicator light in shine, lamps and lanterns is operation error, Details can record enter interface view.
-
Page 7: Lamp Control
BEAM 7R (16CH) CHANNEL MODE CHANNEL COLOUR WHEEL COLOUR WHEEL STOP/STROBE STOP/STROBE DIMMER DIMMER STATIC GOBO CHANGE STATIC GOBO CHANGE PRISM INSERTION PRISM INSERTION PRISM ROTATION PRISM ROTATION Marco Color .gobo prism macro funtion FROST FROST FOCUS FOCUS PAN FINE PAN FINE TILT TILT... - Page 8 EFFECT 备注 FAST ROTATION …… …… SLOW ROTATION BLUE + WHITE color value is always in multiples of 5。 BLUE CTB 8000 + BLUE linear variation： CTB 8000 Color ratio CTO 190 + CTB 8000 adjustable, such as: CTO 190 numerical for 5 white CTO 260 + CTO 190 scarlet 50% 50%, if...
- Page 9 STOP/STOBE - channel 2 Ø EFFECT remark 252-255 OPEN Dim CH controlled 239-251 RANDOM FAST STROBE 226-238 RANDOM MEDIUM STROBE 213-225 RANDOM SLOW STROBE 208-212 OPEN Dim CH controlled FAST PULSATION …… …… SLOW PULSATION 104-107 OPEN Dim CH controlled FAST STROBE ……...
- Page 10 EFFECT remark GOBO 17 SHAKE, FAST SPEED Every 5 numeric value corresponding to a …… …… pattern GOBO 17 SHAKE, SLOW SPEED GOBO 16 SHAKE, FAST SPEED …… …… GOBO 16 SHAKE, SLOW SPEED …… …… GOBO 2 SHAKE, FAST SPEED ……...
- Page 11 PRISM INSERTION - channel 5 Ø EFFECT remark 128-255 PRISM INSERTED 0-127 PRISM EXCLUDED PRISM ROTATION - channel 6 Ø EFFECT remark FAST ROTATION …… …… SLOW ROTATION 191-192 STOP SLOW ROTATION …… …… FAST ROTATION 0-127 POSITION EFFECTS MOVEMENT - channel 7 Ø...
