Octasound RAAX2 Owner's Manual

OCTASOUND - RAAX2 - 2 CHANNEL REMOTE AUDIO AMPLIFIER

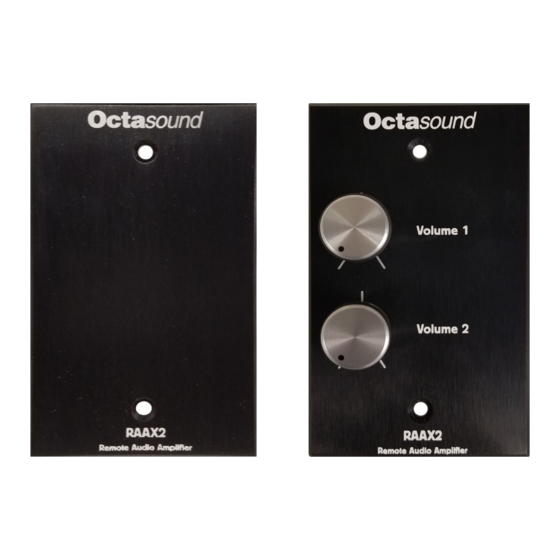

RAAX2 - OPTION 1
OPTION 1
Volume controls mounted on rear of ampli er. Order this option if expanding the ampli er with the RABX2 or RAMX2 input mixers. Master volume can be preset
with the rear volume controls.
OPTION 2
Volume controls mounted on front panel. Order this option for devices such as TV's, Background Music, Radio etc that require volume controls. Two modes of
operation via jumper. Independent two zone volume controls or two mixed input channel volume controls to one zone.
POWER SUPPLY OPTIONS
Power supply is sold separately. Choose your power supply based on operation requirements of the RAAX2 Ampli er.
PS-RAAX2-15-1600 15Vdc @ 1.6 amps. Maximum output power of RAAX2 = 12 Watts @ 8 Ohms . Ideal for low audio volume operation requirements.
PS-RAAX2-24-5000 24Vdc @ 5 amps. Maximum output power of the RAAX2 = 30 Watts RMS @ 8 Ohms. Ideal for high audio volume operation requirements.
FCC INTERFERENCE STATEMENT
NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in accordance to the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by switching the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected.
Consult the dealer or an experienced radio or TV technician for help.

OWNERS MANUAL

RAAX2 - OPTION 2
