Bontrager Duotrap S Manual

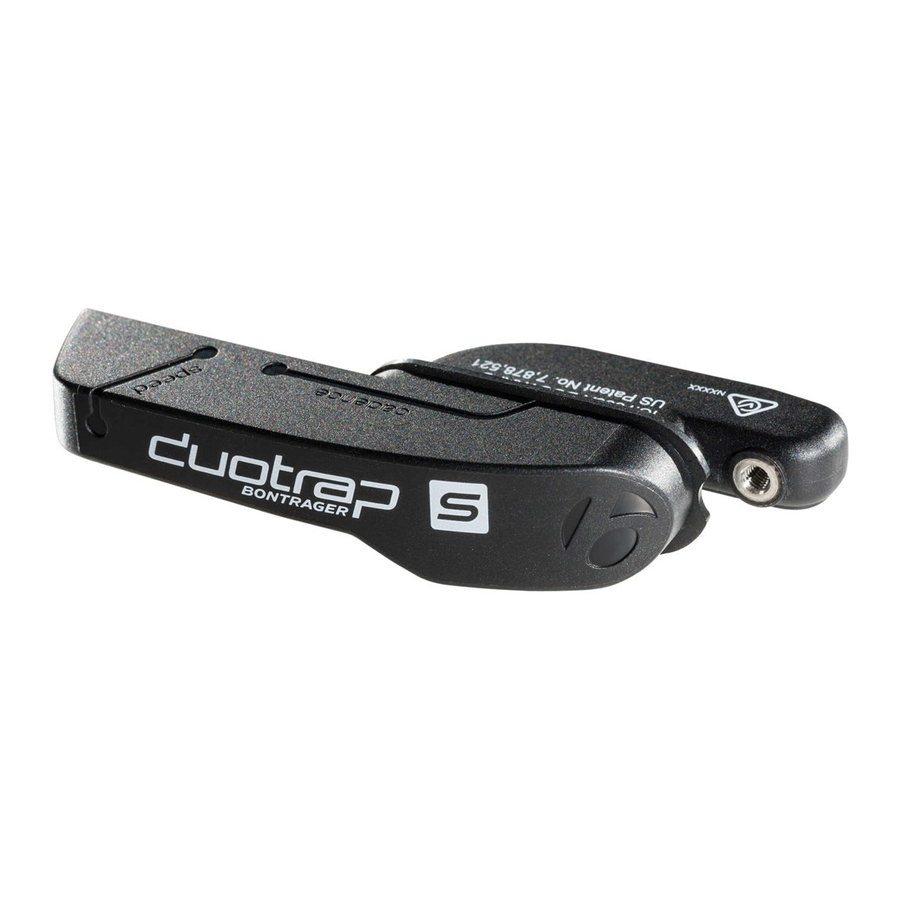

DUOTRAP S
ANT+ and Bluetooth Smart Dual Mode
Integrated Speed and Cadence Sensor
Gasket (alloy bikes)
Small cadence
magnet band
(crank)

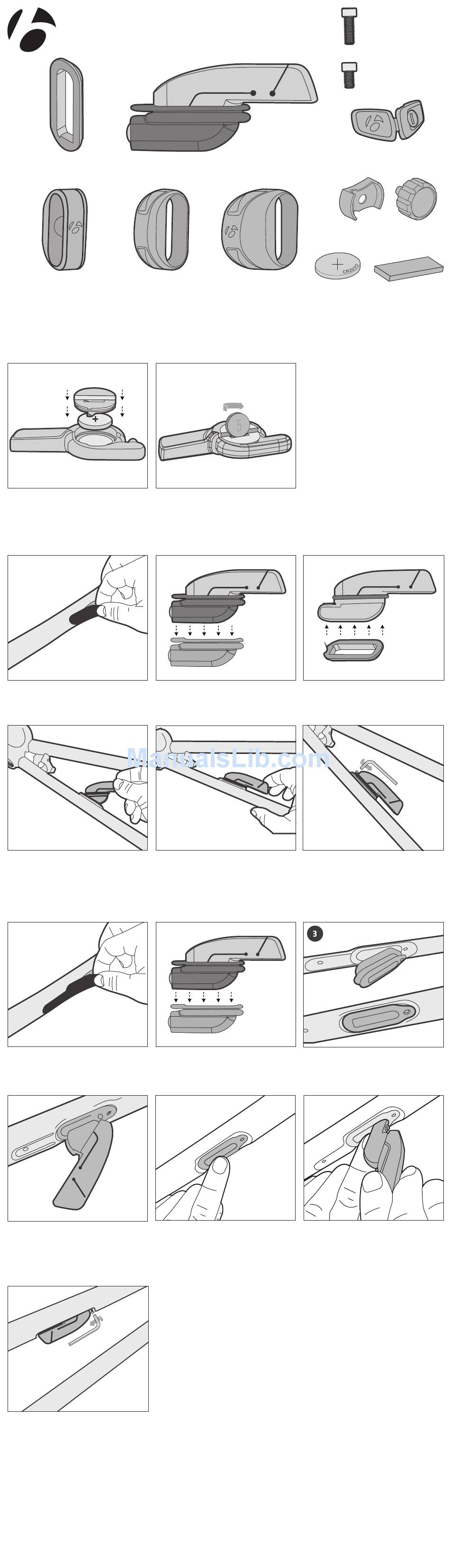

BATTERY INSTALLATION AND REPLACEMENT
•
1
Replacement battery
CR2032.
SENSOR INSTALLATION (ALLOY BIKES)
•
1
Remove DuoTrap S cover
from chainstay.
•
4
Install sensor into chainstay.
SENSOR INSTALLATION (CARBON BIKES)
•
1
Remove DuoTrap S cover
from chainstay.
•
4
Install sensor into grommet in the chainstay. Hint: Hold
grommet in place with one hand while inserting sensor with
the other as seen in pic 4a and 4 b.
•
5
2.5N
While holding sensor in
place, use a 2.5mm hex to
tighten 6mm short screw.
Note: 6mm screw must be
used with carbon frames.
Sensor with grommet (carbon bikes)
Medium cadence
magnet band
(crank)
•
2
Use a coin to close battery
compartment.
•
2
Remove grommet and
replace with gasket in #3.
•
5
Hold sensor into place and
install 8mm long screw.
•
2
Remove grommet.
•
4
a
m
Large cadence
magnet band
(crank)
•
Install gasket onto sensor
with notch aligned with
screw hole as depicted
•
6
While holding sensor in
place, use a 2.5mm hex to
tighten 8mm long screw.
Fully insert grommet into
chainstay resulting in a flush
connection with chainstay.
•
4
8mm alloy
bike mounting
screw
6mm carbon
bike mounting
screw
Carbon bike speed
magnet (wheel)
Alloy bike speed
magnet (wheel)
CR2032
Cadence band
battery shim (optional)
3
2.5N
b
MADE IN CHINA
m
a
b
