Uplink 4555 Installation & User Manual

All-in-one 4-zone fire panel with built-in primary gsm cellular communicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

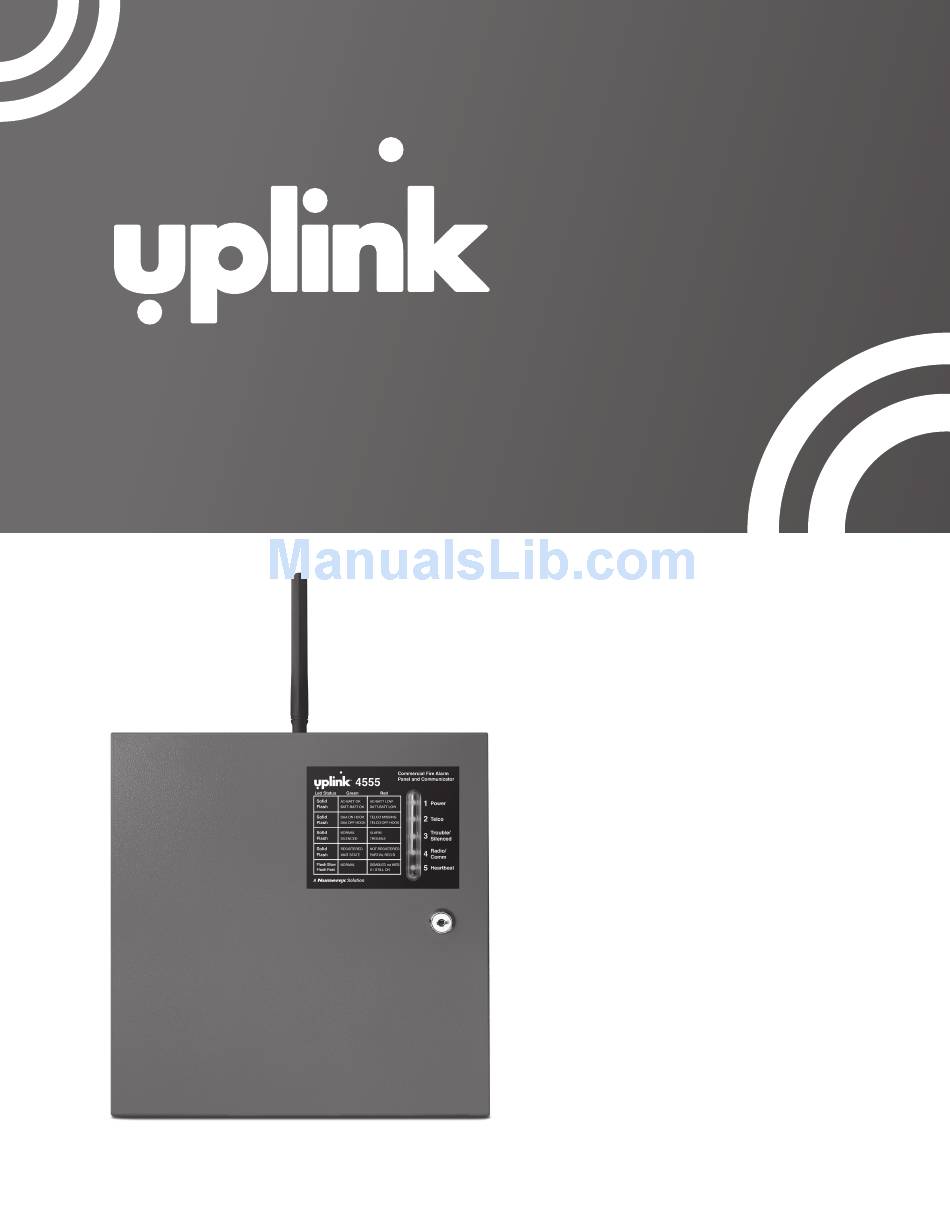

All-In-One 4-Zone Fire Panel With Built-In
Primary GSM Cellular Communicator
All-In-One 4-Zone Fire Panel With Built-In
Primary GSM Cellular Communicator
4555
®
INSTALLATION &
USER'S GUIDE
PRODUCT ID # 202132UP4555
USER'S GUIDE DRAFT 2.0
ID # 00-25580-770
REVISION 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4555 and is the answer not in the manual?

Questions and answers

Summary of Contents for Uplink 4555

  • Page 1 All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator 4555 ® All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator INSTALLATION & USER’S GUIDE PRODUCT ID # 202132UP4555 USER’S GUIDE DRAFT 2.0 ID # 00-25580-770 REVISION 1.2...
  • Page 2 4555 ® To download a copy of this manual go to the dealer portal on www.uplink.com. uplink.com...

  • Page 3: Table Of Contents

    C. LEDs ......................... 14 D. Locating and Installing the 4555 ................18 E. Connecting The 4555 to the Monitored Equipment and Telephone Jack ....21 F. Activating The 4555 Unit ..................26 G. Programming and Central Station Reporting ............27 H.

  • Page 4: Introduction

    4555 will automatically send any alarm information via its GSM connection, through the Uplink gateway and to the Central Station. In either case the alarm communicator transmits the alarm information to the central station receiver in either Contact ID (SIA-DC05) or SIA (SIA-DC03) format.

  • Page 5: Key Features

    • Low or Missing Battery • Telco Line Loss • Loss of supervision of Input(s) • Loss of supervision of Outputs(s) • Activation of Input(s) • Unit Disabled by Dealer Command • Watchdog Circuit Activation • Catastrophic Failure Condition • Ground Fault Detection uplink.com...
  • Page 6 L. Easy Service Initiation. Ships with an active SIM card, with easy activations available via the Web at www.uplink.com or by calling Uplink Customer Service at 1-888-9-UPLINK (1-888-987- 5465). Requires the central station receiver phone number and/or its IP address and Port number.
  • Page 7 Primary GSM Cellular Communicator N. UL Listed. The Model 4555 unit is UL Listed and conforms to UL Standard 864 for Control Units and Accessories for commercial fire alarm systems. It is perfectly suited for use in any UL certificated commercial fire alarm system that conforms to the above standard.

  • Page 8: Warranty Information And Liability Waiver

    Product found to be defective in materials or workmanship; this remedy will not be deemed to have failed of its essential purpose so long as Uplink is willing and able to repair or replace the defective unit as provided above or, at Uplink’s sole option, to refund the purchase price paid.

  • Page 9: Indemnification

    COMPANY SHALL NOT BE LIABLE IN THE EVENT THAT FUTURE TECHNOLOGICAL CHANGES IMPLEMENTED BY ANY THIRD PARTY OR GOVERNMENTAL ENTITY RENDER THE PRODUCT WHOLLY OR PARTIALLY INOPERABLE. OTHER LIMITATIONS OF LIABILITY MAY APPLY AS PROVIDED BY THE MASTER AGREEMENT, IF ANY, GOVERNING YOUR PURCHASE OF THE PRODUCT FROM THE COMPANY. uplink.com...

  • Page 10: Fcc And Industry Canada Regulatory Compliance

    This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the inside of the cover of the 4555 is a label that contains the product identifier, US: 3F0MO00BANYNETFDM. If requested, this number must be provided to the telephone company.
  • Page 11 The 4555 is not designed to be repaired in the field by an Installer. Repairs to this unit should only be undertaken by qualified Uplink Security personnel.

  • Page 12: Fcc Rf Exposure Information

    Technical support requires the caller to provide: • Login name • Password • Serial number of the 4555 UPLINK Technical Support 400 Interstate North Pkwy Suite 1350 Atlanta, GA 30339 888-9-Uplink (888-987-5465) Fax: 770-693-3501 For Customer Support, call 888-987-5465, or visit www.uplink.com. uplink.com...

  • Page 13: Installation

    Proximity to a non-switched Plug for the AC transformer. c. Proximity to the monitoring equipment and where to route the 4555 unit’s relay outputs that connect other devices (These wires will need to be in conduit for a UL certificated installation.

  • Page 14: Leds

    ZONE1 Unsupervised or Telco Loss). D. LED Information Normal Mode: Upon initial power up, the 5 LEDs on The 4555 will begin to function as follows: Note: During the 3 second “settling” time after power-up, all of the LEDs will be lit to indicate the startup sequence is in progress.
  • Page 15 One or more of the Zone inputs are OFF-NORMAL - RED ON. This may either indicate a fire alarm, or some other kind of alarm or trouble depending on how the Zone has been mapped. iii. A Trouble Event has been declared - RED FAST FLASH 1. This coincides with annunciation of the on-board buzzer uplink.com...
  • Page 16 If unit is in the push-button initiated 5 second display Location Mode, it will be OFF. iv. If push-button is held for > 5 seconds, the 4555 switches to Zone Status Mode, indicated by a rapid GREEN FLASH of LED5.
  • Page 17 LED5 will be off. After the expiration of the 5 seconds, all LEDs will resume their normal functions. RSSI Mode: When the 4555 is placed in Received Signal Strength Indicator (RSSI) Mode by turning Dipswitch S4 to ON, the five LEDs indicate the follow signal strength information:...

  • Page 18: Locating And Installing The 4555

    ® E. Locating and Installing the 4555 The Model 4555 unit comes in a metal enclosure. The installer needs to use the supplied 16.5 VAC – 45VA transformer, and must supply two 12aH backup batteries (Recommended Battery: Powersonic PS-12120 or equivalent)
  • Page 19 Figure 1: Parts on the 4555 PC Board Position the bottom of the 4555 enclosure where it will be installed. Use four (4) #6 screws and mount the unit using the four holes in the enclosure’s plastic bottom. The 4555 unit’s dimensions are shown in Figure 2.
  • Page 20 (-) leads from the series battery to the terminals labeled BAT+ and BAT- respectively on the 4555 lower right terminal strip. Use 18 to 14 gauge wire copper insulated wire. Note that these connections are not power limited, and therefore must be ¼ inch or more from any other wires in the enclosure.

  • Page 21: Connecting The 4555 To The Monitored Equipment And Telephone Jack

    First, remove AC and battery power from the 4555, and then proceed as follows: 1. Wire Dialer & Telco Connections. a. Use the dual modular plug telephone cable provided with the 4555 to connect it to the premises’ RJ31X jack. On the 4555’s side, one end of the cable should be plugged into Jack JP4.
  • Page 22 4555 ® 2. Wire Inputs External Zones There are 4 external ZONEs and all 4 are to be supervised using a 2.2 K ohm End-Of-Line-Resistor (EOLR). Additionally, there is a supervised input on the 24 V output to be able to monitor whether the output power device is actually present.
  • Page 23 Clear of the TROUBLE (if it had been previously set as UNSUPERVISED) 3. The transition to an OFF NORMAL state (opposite of how it is defined) initiates an ALARM 4. The transition to an UNSUPERVISED state initiates a TROUBLE uplink.com...
  • Page 24 This initialized value is declared the NORMAL state. The OFF-NORMAL or ALARM or TROUBLE state will then be the opposite of the NORMAL state. For ultimate flexibility, the Outputs can be OPENED or CLOSED independently through the Uplink web portal. Any OUTPUT should first be removed from mapping to TROUBLE detections.
  • Page 25 All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator Figure 4: Example Connections Between the 4555 and the Equipment being monitored. Refer to Section 8 for specific UL wiring requirements and installation notes. uplink.com...

  • Page 26: Activating The 4555 Unit

    ͢ Click here to configure unit”. n. Click on Click here to configure unit. o. There will now be a page entitled “Send MT – Model 4555”. Fill in all of the options, then click on Send All. Existing Dealer 4555 Activation: For dealers/customers who already have an account with Uplink, go to the Uplink web site (www.uplink.com).

  • Page 27: Programming And Central Station Reporting

    ͢ Click here to configure unit”. Click on Click here to configure unit. There will now be a page entitled “Send MT – Model 4555”. Fill in all of the options, and then click on Send All. H. Programming and Central Station Reporting Programming requires entry of the telephone number of the monitoring central station’s alarm...
  • Page 28 6. Mapping of Events to Outputs (Default = #1 Any Zone Alarm, #2 Total Unit Failure) There are 14 Trouble states that be declared by the 4555. Each of these states can be programmed from the Dealer Web Site to activate either of the two Outputs. The 14 Trouble states are: •...

  • Page 29: Completing The Installation And Testing

    Verify that this event was correctly reported to the central station by the Uplink Gateway. If using one or more of the Outputs on the 4555, reconnect the Telco Line, then go back to the Dealer Web Site and use the Switch Output command to test each output. Make sure the controlled device properly detects the output’s change of state and responds as expected.

  • Page 30: Ul Compliance Section -Installation Recommendations

    UL Compliance rules for the type of UL certificate to be achieved. This applies to both the physical installation requirements and the unit’s programming requirements. 3. Power to the Model 4555 unit must be supplied from the enclosed 16.5 VAC – 45 VA UL Listed wall transformer.
  • Page 31 All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator 10. The Model 4555 unit must be programmed to send a Test signal to the central station a minimum of once every 6 hours. 11. All connections to the base terminal block must be made with stranded copper insulated wires...
  • Page 32 4555 ® 15. This product incorporates field-programmable software which can be changed over the GSM Wireless connection. In order for the product to comply with the requirements in the Standard for Control Units and Accessories for Fire Alarm Systems, UL 864, certain programming features or options must be limited to specific values.

  • Page 33: Specifications

    All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator 9. Specifications uplink.com...
  • Page 34 4555 ® uplink.com...

  • Page 35: Appendix A: Contact Id And Sia Event Codes - The Following Is A List Of Default Event Codes And Zones That Can Be Sent To The Central Station

    The 4555 is defaulted to send both the Alarm/Trouble condition and the Restoral condition for all of the events listed below. Reporting of zone numbers for individual events can be modified from the Dealer Web Site.
  • Page 36 4555 ® uplink.com...

  • Page 37: Appendix B: Web-Configurable Parameters For Ul 864 Compliance

    864. However, it may be possible to issue an MT command and change a configuration param- eter such that the 4555 is no longer compliant with UL 864. To prevent such an occurrence, this table of all web-based MT commands is provided, along with all the selectable options,...
  • Page 38 4555 ® uplink.com...
  • Page 39 All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator uplink.com...
  • Page 40 4555 ® uplink.com...
  • Page 41 All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator uplink.com...
  • Page 42 4555 ® uplink.com...
  • Page 43 All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator uplink.com...
  • Page 44 4555 ® uplink.com...
  • Page 45 All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator uplink.com...
  • Page 46 4555 ® uplink.com...
  • Page 47 All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator uplink.com...
  • Page 48 Appendix C: Web-programmable User parameters for the 4555. The 4555 is programmable via the web. The following parameters must be set up in order to use the device successfully. If the Default value is acceptable, then it need not be programmed, however, at a minimum the Central Station Phone Number and Account Number must be updated.
  • Page 49 All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator uplink.com...
  • Page 50 The material in this manual is subject to change without notice. Uplink reserves the right to make changes to any software or product to improve reliability, function or design. Uplink is a trademark of Uplink Security, LLC. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.
  • Page 51 All-In-One 4-Zone Fire Panel With Built-In Primary GSM Cellular Communicator uplink.com...
  • Page 52 4555 ® ® FOR SALES, PRODUCT INFORMATION & TECHNICAL SUPPORT Uplink 400 Interstate North Pkwy Suite 1350 Atlanta, GA 30339 1-(888) 9-UPLINK, 1-(888)-987-5465 Fax 1-(888)-542-9105 sales@uplink.com www.uplink.com...
