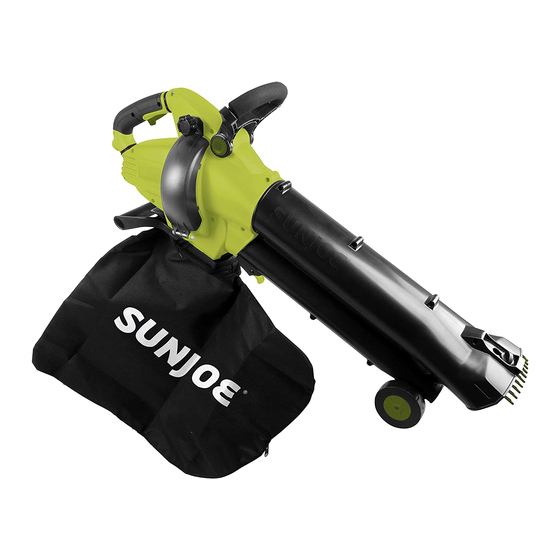

Electric blower/vacuum/mulcher 12-amp | 200 mph max
Hide thumbs Also See for SBJ702E:

Advertisement

Quick Links

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specific to
the use of this electric blower vac.
Failure to follow all warnings, and instructions may result in
electric shock, fire or serious injury.
m
WARNING!
This indicates a hazardous situation,
which, if not avoided, could result in death or serious injury.
m
CAUTION!
This indicates a hazardous situation,
which, if not avoided, could result in minor or moderate injury.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in death or serious injury.
General Safety
FOR HOUSEHOLD USE ONLY
Before using, be sure that everyone using this tool reads
and understands all safety instructions and other information
contained in this manual. Save this manual and review it
frequently prior to using this tool and when instructing
others on the proper operating procedures.
m
CAUTION!
Wear appropriate hearing protection during
use. After long periods of extended use, the noise generated
from this appliance may cause hearing loss if your ears are
not properly protected.
m
WARNING!
When using electric yard tools, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock and personal injury, including the
following:
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
© 2018 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
ELECTRIC BLOWER/VACUUM/MULCHER
R
12-AMP | 200 MPH MAX
Model SBJ702E
2. Replacement parts – When servicing this unit, use only
identical replacement parts. Replace or repair damaged
cords immediately.
3. Disconnect the tool – Disconnect the blower vac from
the power supply when it is not in use, before servicing
it, when changing accessories and when performing any
other maintenance task.
4 Avoid dangerous environments – Do not use the blower
vac in rain, damp or wet locations. Do not operate the
blower vac in gaseous or explosive atmospheres or use
the blower vac to pick up flammable or combustible
liquids. Motors in these tools normally spark, and the
sparks might ignite fumes.
5. Keep children, bystanders and pets away – All
spectators, including pets, should be kept a safe distance
away from the work area.
6. Use the right tool – Do not use the tool for any job except
that for which it is intended.
7. Extension cords – To prevent electric shock, use only
with an extension cord suitable for outdoor use.
8. Do not abuse the cord – Never carry the blower vac
by the cord or yank the cord to disconnect it from the
receptacle. Keep the cord away from heat, oil, and sharp
edges.
9. Avoid accidental starting – Do not carry the blower vac
with your finger on the switch. Make sure the switch is off
before plugging in the unit.
m
DANGER!
Do not manually place objects into the
vacuum tube while operating the unit as this can seriously
damage the unit and/or harm the operator. Keep both hands
on the handles while the power is on.
DO NOT ATTEMPT to remove material or hold material to be
vacuumed when the blower vac is on. Make sure the blower
vac is off when clearing jammed material from the vacuum
tube. Do not pick up the blower vac by the tube or attempt to
carry the unit by the tube.
m
CAUTION!
Moving parts will continue to run for
several seconds after turning off the machine.
10. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
11. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
1
Form No. SJ-SBJ702E-880E-M
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBJ702E and is the answer not in the manual?

Questions and answers

Summary of Contents for sunjoe SBJ702E

  • Page 1 12-AMP | 200 MPH MAX OPERATOR’S MANUAL Model SBJ702E A Division of Snow Joe , LLC ® Form No. SJ-SBJ702E-880E-M IMPORTANT! 2. Replacement parts – When servicing this unit, use only identical replacement parts. Replace or repair damaged cords immediately. Safety Instructions 3.
  • Page 2: Personal Safety

    12. Wear personal protective equipment – When using this • Service on the product must be performed by qualified tool, wear safety glasses with side shields or goggles to repair personnel only. Service or maintenance performed provide necessary eye protection. Wear ear defenders to by unqualified personnel could result in injury to the user or prevent hearing damage.
  • Page 3: Double-Insulated Appliances

    11. To prevent electric shock, use only with an extension cord not fit fully into the wall outlet, reverse the plug. If the plug suitable for outdoor use, such as SW-A, SOW-A, STW-A, still does not fit, contact a qualified electrician to install the proper wall outlet.
  • Page 4 Service Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards. WARNING! Take care not to expose this tool to rain and remove plug from mains supply immediately if the supply cord is damaged.
  • Page 5: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand Keep bystanders and children and follow all instructions in the a safe distance away.
  • Page 6: Technical Data

    Know Your Electric 3-in-1 Blower/Vac/Mulcher Read the owner’s manual and safety instructions carefully before operating the electric blower vac. Compare the illustration below to the electric blower vac in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 7: Carton Contents

    Unpacking 3. To adjust the length of the strap, push it from one end to form a loop above, and let out as needed, then pull the strap from the other side to tighten (Figs. 2 – 3). Carton Contents •...
  • Page 8: Operation

    Front Handle Adjustment 2. To release the bag, simply press the spring lever (Fig. 5). 1. Press the angle adjustment button on the front handle, and turn the front angle to a comfortable place (Fig. 7). Fig. 5 Fig. 7 Angle adjustment button Spring lever Front handle...
  • Page 9: Speed Control

    2. Turn the knob to make the knob handle vertical to lock the 2. To start the unit, press the ON/OFF switch (Fig. 13). rake. The rake is ready to use (Fig. 10). Fig. 13 Fig. 10 ON/OFF switch Blowing/ vacuuming tube Rake knob...
  • Page 10 Blower Mode Fig. 16 WARNING! Before operating with the blower/vac mode selector, make sure that the selector lever moves smoothly and is not obstructed by debris from previous use. • To use the unit in the blower mode, turn the blower/vac mode selector switch to BLOWING MODE.
  • Page 11: Operating Tips

    NOTE: The mulching intensity depends on the size of the leaf 2. To clean the impeller inside of the unit, turn the window material and its residual moisture. knob counterclockwise, and open the side window (Figs. 18 – 19). Operating Tips Fig.
  • Page 12: Maintenance

    Service and Support Cleaning 1. Keep the ventilation slots of the machine clean to prevent If your Sun Joe SBJ702E electric blower/vacuum/mulcher ® overheating of the machine. requires service or maintenance, please call the Snow Joe ® 2. Regularly clean the machine housing with a soft cloth,...
  • Page 13: Troubleshooting

    Troubleshooting Problem Possible Cause Remedy • • No power supply Check power supply (appliance cord, circuit breakers, fuses) The blower/ • • Plug not connected Connect the plug vacuum/mulcher fails to operate • • Extension cord damaged Replace extension cord No/low blowing •...
  • Page 14: Optional Accessories

    The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. Accessories Item Model Sun Joe SBJ702E ® SBJ702E-BAG replacement bag Snow Joe + Sun Joe SJTW-A 14-gauge ®...
  • Page 15 SNOW JOE + SUN JOE CUSTOMER PROMISE ® ® ABOVE ALL ELSE, Snow Joe + Sun Joe are dedicated to you, our customer. We strive to make your experience as pleasant ® ® as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us.
  • Page 16 snowjoe.com...
