Summary of Contents for Xoro PTL 700

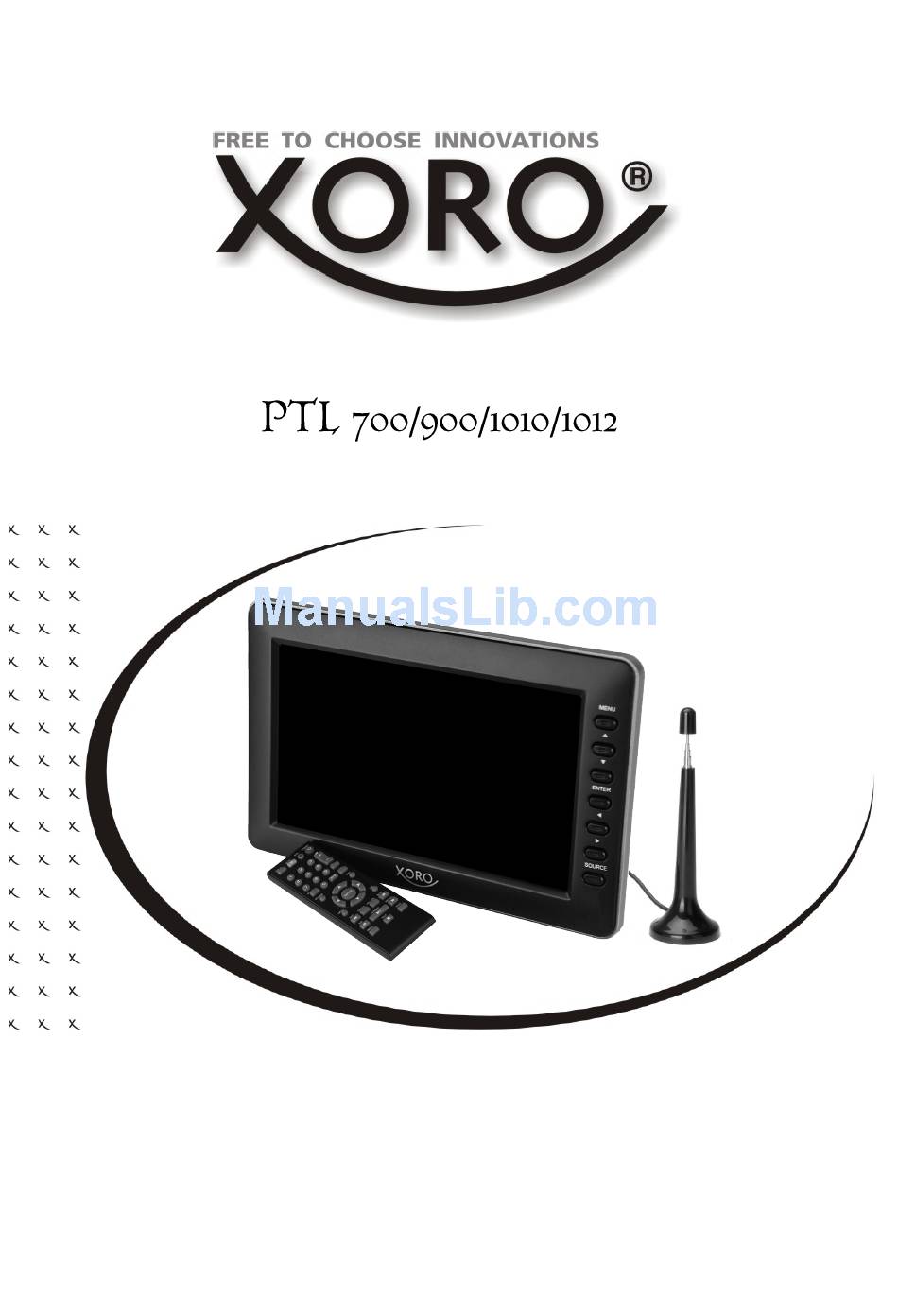

- Page 1 USER MANUAL (EN)
-
Page 3: Table Of Contents
CONTENT SAFETY INFORMATION Electrical Safety, Antenna, Pixelfault ............4 Power Supply, Case of Service ............5 Application, USB / MicroSD, Insert Batteries........6 Recycling Information ................7 EU- Declaration of Conformity ............7 FIRST STEPS Ports & Keys ..................8 Remote Control..................9 Initial Installation, Power Supply, Antenna, Audio/Videoinput ....10 Main Functions..................11 Getting Started ..................12 Daily Operation... -
Page 4: Safety Information
SAFETY INFORMATION The lightning flash with an arrowhead symbol within an equilateral triangle is inten- ded to alert the user of the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 5: Power Supply, Case Of Service
SAFETY INFORMATION Never operate the device permanently in 4: 3 mode. This could result in damage to the screen during prolonged use. Do not increase the volume when a quiet passage is being played. This could cause damage to the speakers when there is a loud passage. -
Page 6: Application, Usb / Microsd, Insert Batteries
SAFETY INFORMATION Application Reception of digital programs via antenna (DVB-T / T2). Play supported video, picture and music files. Connection of compatible mass storage devices. USB Port / MicroSD The TV may take some time to fully read and run the storage device. Do not remove the storage device until all recordings or playbacks have finished. -
Page 7: Recycling Information
Please do not dispose of batteries with household waste. EU-Declaration of Conformity With the CE mark declares XORO, a registered trademark of the MAS Elektronik AG that the device meets the guidelines 2014/53/EU The full text of the EU Declaration of Conformity is available under the following Internet address: http://www.xoro.de/downloads/... -
Page 8: First Steps
FIRST STEPS Ports & Keys Front view Back view Display Status LED Blinking Red device is charging Red LED on device is fully charged Green LED on device is in operating mode MENU Opens main menu ▲/▼ Toggles a channel up / down, navigates up / down ENTER OK /Confirm /... -
Page 9: Remote Control
FIRST STEPS Remote Control STANDBY To standby / switch on the device Starts an instant recording MUTE Mute SOURCE Choose source Number keys + / - Increase / decrease the volume Opens Mediaplayer/recordings Subtitle menu Open electronic program overview AUDIO Audiomenu MENU Opens main menu... -
Page 10: Initial Installation, Power Supply, Antenna, Audio/Videoinput
FIRST STEPS Installation Make sure that the device is switched off and disconnected from the mains during installation. Only when all connections have been made, switch on the device via the mains switch. Power Supply Use only the supplied AC adapter to power and charge the TV. Observe the information on the rating plate of the power supply unit. -
Page 11: Main Functions
FIRST STEPS Basic Functions The basic functions of the remote control are described below: Control Pad / OK Button Use the / /▲/▼ buttons on the remote control to navigate the menus or the program guide or station list. To confirm your selection press the OK button. Number Buttons You can directly select the desired station by entering the program slot using the number buttons 0-9. -
Page 12: Getting Started
INITIAL INSTALLATION Initial Installation When you start the device for the first time and/or restore the factory settings (Page 16), the device offers a first-time installation. Make sure your device is connected to an antenna during initial installati- on and has sufficient reception. In the first window, use the navigation buttons on the remote control to select the desired language of the menu interface and confirm your setting with the OK button. -
Page 13: Daily Operation
DAILY OPERATION Program List Press the OK button during the TV program list is displayed. With the navigation buttons ▲ / ▼ you can select a station within the program list and call it up with the OK button. The program list can be edited with the program editor (page 17). Favorites List Press the FAV button while watching TV, the favorite list is displayed. -
Page 14: Instant Recording, Reminder, Timerlist
DAILY OPERATION The device offers a recording function on connected USB 2.0 data media or on a MicroSD memory card (32 GB max.). Please read the notes on page 6 of this manual! Finished recordings can be played in the media player of the respective recording medium (page 19). Instant Recording While watching TV, press the REC button and recording will start. -
Page 15: Main Menu, Picture Settings, Sound Settings, Time Settings
DAILY OPERATION Main Menu Press the MENU button to call up the main menu of the device. Here you can configure the device according to your wishes. Use the navigation buttons ▲ ▼ to select and the OK button to confirm entries. -
Page 16: Functions, Subtitle, Lock
DAILY OPERATION Sleeptimer Here you can set a time slot in define minutes if the device is to be put into standby mode automatically, if none entries made. Save energy According to EU directives, electrical devices must automatically switch to standby mode after 3 hours, if no ent ries have been made in the meantime respectively. -
Page 17: Seeking Sender, Program Editor
DAILY OPERATION Sources Lock system If the function is active, the system is protected against modification with the system password. Set password In this menu you can change the default password of the device according to your wishes. Prog. Block If you have this feature you can activate / deactivate individual programs in the program list with the system password. -
Page 18: Signal Source
DAILY USE If you use the logical channel to use sor ting by your provider, enable this feature. Should you have problems with the sorter sorting and change your station list inde- pendently or the channel numbers are not continuous displayed, check if the LCN function is activated! Make sure that this function has been deactivated before the search, if you want to sort your stati-... -
Page 19: Multimedia Player
MULTIMEDIA PLAYER The device offers you a multimedia player. Connect a USB 2.0 mass storage or MicroSD memory card to your digital media to the USB input of the device. Press the SOURCE button on the remote control and select the signal source USB or MicroSD, de- pending on the medium you have connected to the device. -
Page 20: Trouble Shooting
TROUBLE SHOOTING Please read the following information to find out the possible cause of a problem before contacting our customer service. Problem Solution Device does not turn on Check whether the power adapter is properly connected to the power outlet. Check if the cable of the power supply is properly connected to the device. -
Page 21: Warranty
For a correct and frictionless completion of warranty or repairs you need a RMA No. You may obtain a RMA on the internet at www.xoro.de/service or by telephone. Please send the device in its original packing material, all standard accessories and a copy of the invoice, a description of defect and the RMA No.
