BCP SKY3865 Instruction Manual

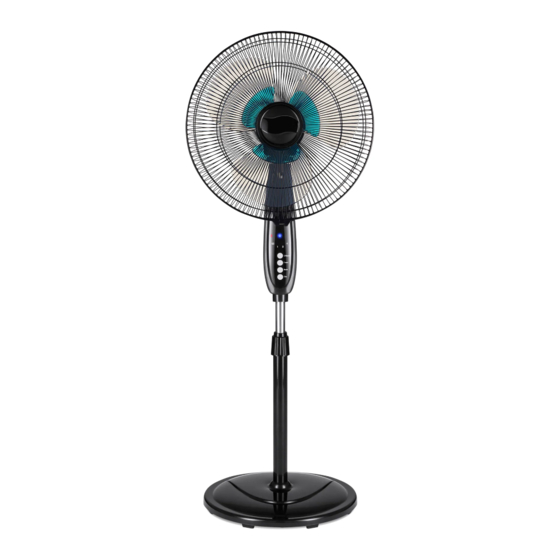

Double blade pedestal fan
Hide thumbs

Advertisement

Table of Contents

INSTRUCTION
MANUAL
Double Blade Pedestal Fan
SKY3865
Ver. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKY3865 and is the answer not in the manual?

Questions and answers

Related Manuals for BCP SKY3865

Summary of Contents for BCP SKY3865

  • Page 1 INSTRUCTION MANUAL Double Blade Pedestal Fan SKY3865 Ver. 2...
  • Page 2 Thank you for choosing us! Since 2002, Best Choice Products has been bringing customers high-quality products at the absolute lowest price. With everything ranging from instruments and toys to furniture and outdoor, we’ve got your everyday living essentials covered. We’re centered around a customer-first philosophy –...
  • Page 3 NOTICE Please retain these instructions for future reference. • The product is intended exclusively for non-commercial operation as a mobile fan. • The product must be placed on an even, horizontal surface with clearance on all sides. • The product is intended for indoor use only. •...

  • Page 4: Tools Required

    TOOLS REQUIRED PHILLIPS SCREWDRIVER 1 PERSON APPROXIMATELY ASSEMBLY 20 MIN. ASSEMBLY PARTS POLE BASE MOTOR HOUSING/ CONTROLS 1 PC 1 PC 1 PC FRONT GUARD REAR GUARD/ SMALL BLADES LARGE BLADES 1 PC 1 PC 1 PC REMOTE 1 PC Pg.

  • Page 5: Product Assembly

    PRODUCT ASSEMBLY Remove the bolt/washer from the NOTE: part A pole. Replace the bolt/washer Twist the pole to adjust height. to attach the pole to the part B base. BACK Slide the part C motor housing/controls onto the pole and secure it by tightening the knob on the back. Pg.
  • Page 6 PRODUCT ASSEMBLY Remove the spacer and fastener. NOTE: Twist fastener RIGHT to loosen and LEFT to tighten. Squeeze clip to remove large blades from part D rear guard. Pg. 6...
  • Page 7 PRODUCT ASSEMBLY Slide rear guard onto motor housing and secure it by replacing the spacer. NOTE: Align the nubs on the motor housing to the corresponding holes on the rear guard. BACK OF BLADE Slide on the large blades. Pg. 7...
  • Page 8 PRODUCT ASSEMBLY Slide on the part E small blades and secure it by replacing the fastener. NOTE: Insert nub on back of small blades to hole on large blades. Attach the part F front guard. Tighten the screw on the bottom to secure it to the rear guard.

  • Page 9: Control Panel Functions

    CONTROL PANEL FUNCTIONS SLEEP MODE WIND MODE SPEED STEADY MODE TIME INDICATOR LIGHTS POWER/SPEED TIMER FAN MODES OSCILLATE NOTE: Up to four of the time indicator lights may be on at the same time to display the total time (e.g. if the 4h and 2h lights are on, it indicates a total time of 6 hours).

  • Page 10: Adjusting Tilt

    ADJUSTING TILT • Push fan guard up and down to adjust tilt. CLEANING Pull the power cord from the outlet. Remove front guard. Wipe down blades with a soft cloth and mild detergent. Wipe down front/rear guards with a soft brush and mild detergent. Do not clean with gasoline, benzene or thinner, or other hazardous liquids/abrasives.
  • Page 11 Check out more great products: bestchoiceproducts.com...

  • Page 12: Changing The Fuse

    CHANGING THE FUSE The following should ONLY be conducted by a qualified professional: Pull the power cord from the outlet. Slide open the fuse access cover by pushing it towards the blades of the plug. Carefully remove the fuse. Push the fuse from the other side or turn the fuse holder over.
