Original Instruction Manual
RSDE1, RSDE2, RSDE2/A

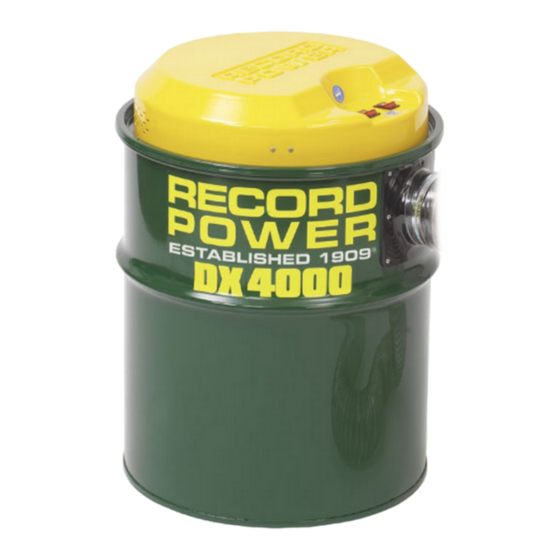

DX4000 & DX5000
High Filtration Dust Extractors
Version 3.1
September 2014
It is important to register your product as soon as possible in order to receive efficient after sales
support and be entitled to the full 5 year guarantee. Your statutory rights are not affected.
Kg
Always wear safety glasses when
using woodworking equipment.
To register this product please visit
www.recordpower.info
Please see back cover for contact details.
Important
i
For your safety read instructions carefully before
assembling or using this product.
Always read the instructions
provided before using
Save this manual for future reference.
woodworking equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSDE2/A and is the answer not in the manual?

Questions and answers

Related Manuals for Record Power RSDE2/A

Summary of Contents for Record Power RSDE2/A

  • Page 1 Original Instruction Manual RSDE1, RSDE2, RSDE2/A DX4000 & DX5000 High Filtration Dust Extractors Version 3.1 September 2014 To register this product please visit www.recordpower.info It is important to register your product as soon as possible in order to receive efficient after sales support and be entitled to the full 5 year guarantee.

  • Page 2: Table Of Contents

    Explanation of Symbols General Health & Safety Guidance Additional Health & Safety for High Filtration Dust Extractors Record Power Guarantee Assembly & Operation of RSDE1, RSDE2 & DX4000 Operation of the RSDE2/A Assembly & Operation of DX5000 Specifications Maintenance 10 Dust Extraction 11 Parts Diagrams &...

  • Page 3: Explanation Of Symbols

    1. Explanation of Symbols THE SYMBOLS AND THEIR MEANINGS SHOWN BELOW MAY BE USED THROUGHOUT THIS MANUAL. PLEASE ENSURE THAT YOU TAKE THE APPROPRIATE ACTION WHEREVER THE WARNINGS ARE USED. Mandatory Instructions Read and fully understand the instruction manual before attempting to use the machine. Indicates an instruction that requires particular attention Wear protective eyewear Use respiratory protective equipment...

  • Page 4: General Health & Safety Guidance

    2. General Health & Safety Guidance Ensure that you carefully read and fully understand the the machine, always ensure that it is securely fastened to the machine instructions in this manual before assembly, installation and using the fixings provided. use of this product. Keep these instructions in a safe place for •...
  • Page 5 2. General Health & Safety Guidance - cont. • When not in use, machines should be stored in a dry place, out of reach of hand positions where a sudden slip could cause your hand or fingers to move children. Do not allow persons unfamiliar with these instructions or with the into the machining area.

  • Page 6: Additional Health & Safety For High Filtration Dust Extractors

    Ensure that there is no debris between the base of the extractor and • All Record Power dust extractors are designed solely for use with the floor. wood dust and chippings. Do not use the machine to remove vapours, •...

  • Page 7: Record Power Guarantee

    Guarantee should be made directly to Record Power or its Authorised Distributor Record Power guarantees that for a period of 5 years from the date (for details of the Authorised Distributor in your country please see of purchase the components of qualifying Products (see clauses 1.2.1 your Product manual or check www.recordpower.info for details).

  • Page 8: Assembly & Operation Of Rsde1, Rsde2 & Dx4000

    5. Assembly & Operation of RSDE1, RSDE2 & DX4000 Please note: The dust filtration systems of RSDE1 and RSDE2 consist of a cartridge filter and outer disposable Fig. 5.1 paper filter bag to provide 0.5 micron filtration. The DX4000 and DX5000 feature additional cloth filters for improved filtration and extended filter life. PLEASE NOTE: The clamp which fixes the hood assembly to the drum body of your machine is fitted to protect the unit during transit and should not be used once the extractor is installed.

  • Page 9: Operation Of The Rsde2/A

    6. Operation of the RSDE2/A The RSDE2/A is fitted with an automatic switching function which allows the extractor to be started Fig. 6.1 automatically when a power tool is connected via the 3 pin socket in the head of the extractor.

  • Page 10: Specifications

    8. Specifications RSDE1 RSDE2 & RSDE2/A Capacity: 45 Litres Capacity: 50 litres Motor: 1kw Motor: 1kw Size: H620 x W530 x D360mm Size: H770 x W530 x D360mm Weight: 11kg Weight: 13.5kg Filtration: 0.5 micron Filtration: 0.5 micron Air Flow: 53 litres per second...

  • Page 11: Dust Extraction

    Record Power Extractors be switched off for 20 minutes every hour. 0.5 micron filtration Record Power offer a range of high quality dust extractors, we offer both drum and bag type extractors which filter down 0.5 micron providing CX2000 Compact Chip Extractor protection from harmful fine dusts.
  • Page 12 11. Parts Diagram & List - RSDE1 Ref. Number Description Quantity ZANA Hood ZAST Drum lid ZASU Body ZAND Inlet ZASE Round ferrite ACGN Cable gland nut ZASW Switch ZAPH 3M Cable and moulded plug (U.K.) ZAMS Suppressor capacitor ZAMI Cable gland ZANU Drum lid seal...
  • Page 13 11. Parts Diagram & List - RSDE2 & RSDE2-A Ref. Number Description Quantity Ref. Number Description Quantity CBKS Illuminated Switch 3 Pin Plug Socket (RSDE2-A only) ZASE Round Ferrite Circuit Board (RSDE2-A only) ZANA Hood ZAMS Suppressor ZAMT P Clip Suppressor Fixing ZAMI Cable Gland ACGN...
  • Page 14 11. Parts Diagram & List - DX4000 24 25 Ref. Number Description Quantity ZAPA Hood ZAPB Drum lid ZAPC Drum ZAPD Inlet ZAPU Cloth filter bag ACGN Cable gland nut CBKS Switch ZAPH Cable and moulded plug (U.K.) ZAMI Cable gland ZAMJ Cable tie base ZAMU...
  • Page 15 11. Parts Diagram & List - DX5000 23 24 Ref. Number Description Quantity Ref. Number Description Quantity Hood ZAVA Cartridge filter ZAPA 2 + 6 spare ZAPB Drum lid ZAVB Paper filter bag ZAQR Body ZAMV 100mm x 2m PVC hose, LH helix, per metre ZAPD Inlet DX100X...

  • Page 16: Electrical Connection & Wiring Diagrams

    12. Electrical Connection & Wiring Diagrams Machines supplied for use in the UK are fitted with a 3 pin plug conforming machine. If replacing the original fuse, always fit a fuse of equivalent rating to BS1363, fitted with a fuse conforming to BS1362 and appropriate to the to the original.
  • Page 17 12. Electrical Connection & Wiring Diagrams RSDE2/A...
  • Page 18 EU Declaration of Conformity Cert No: EU / RSDE1, RSDE2, DX4000 & DX5000 / 1 RECORD POWER LIMITED, Centenary House, 11 Midland Way, Barlborough Links, Chesterfield, Derbyshire S43 4XA declares that the machinery described:- Type: High Filtration Dust Extractor Model No: RSDE1, RSDE2, DX4000 & DX5000 Serial No .................
