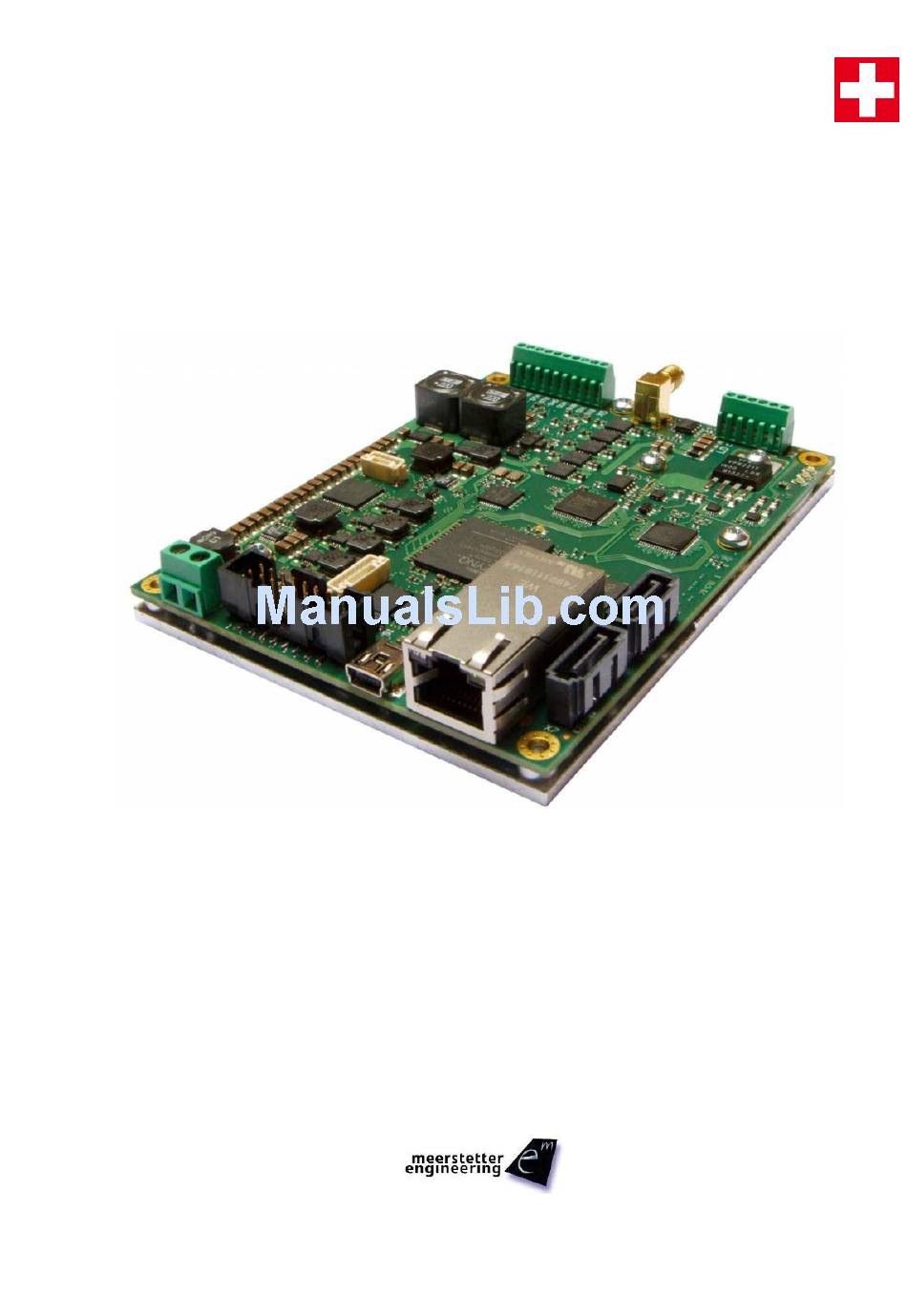

SWISS MADE
User Manual
LTC-Family
LTC-Family:
LTC-1141
LTC-1142
Meerstetter Engineering GmbH
Phone: +41 31 712 01 01
Schulhausgasse 12
Email: contact@meerstetter.ch
3113 Rubigen, Switzerland
Website: www.meerstetter.ch
Meerstetter Engineering GmbH (ME) reserves the right to make changes without further notice to the product described herein. Information furnished
by ME is believed to be accurate and reliable. However typical parameters can vary depending on the application and actual performance may vary
over time. All operating parameters must be validated by the customer under actual application conditions.
Advertisement
Table of Contents
Summary of Contents for Meerstetter Engineering LTC-1141
-
Page 1: User Manual
Website: www.meerstetter.ch Meerstetter Engineering GmbH (ME) reserves the right to make changes without further notice to the product described herein. Information furnished by ME is believed to be accurate and reliable. However typical parameters can vary depending on the application and actual performance may vary... -
Page 2: Table Of Contents
Table of Contents LTC Hardware Overview ............................. 3 LED Status ............................... 3 1.1.1 Power................................ 4 1.1.2 System Core ............................. 4 1.1.3 TEC................................4 1.1.4 LDD................................4 Mounting ..............................4 Software ................................. 5 Requirements ............................5 2.1.1 Operating System ............................. 5 Installation .............................. -
Page 3: Ltc Hardware Overview
This release of the user manual contains preliminary information and is not yet complete. 1 LTC Hardware Overview The LTC family controllers are laser diode drivers with an integrated TEC controller (based on TEC-1091). The core of the LTC controllers consists of a system on chip featuring high performance processing capabilities in combination with fast ADC, DAC and memory. -
Page 4: Power
1.1.1 Power H8 green steady Power supply OK H9 red steady Power supply failure H8 green & H9 red steady System on chip running & at least one power supply rail not ready 1.1.2 System Core H7 orange steady Programmable logic starting up H10 green steady Initializing H10 green fast blinking... -
Page 5: Software
2 Software The LTC-114x configuration software allows the setup and monitoring of the controller in a graphical way. 2.1 Requirements 2.1.1 Operating System The compatibility of the LTC configuration software has been tested with Microsoft Windows 7, 8 and 10. 2.2 Installation ✓... -
Page 6: Software Description
2.4 Software Description The LTC configuration software design corresponds to the hardware layout of the controller. Each subsystem is divided in a block. Status information is directly displayed in the main window. Information about subsystems and their configuration can be accessed by clicking on the corresponding field of each subsystem. -
Page 7: Changing Parameters
2.4.1 Changing Parameters Parameter values can be directly changed by clicking on the text field. An orange indicator is displayed, when a parameter is not yet stored and active on the controller. Parameters have to be written to the controller by pressing the enter key. -
Page 8: Functional Description
3.2 TEC Controller Please refer to the TEC-Family User Manual for information about the TEC controller functionality. 4 Support Please contact Meerstetter Engineering in case of questions. http://meerstetter.ch/company/techsupport Page 8 ( 8) Laser & TEC Controller User 12.04.16 SK...
