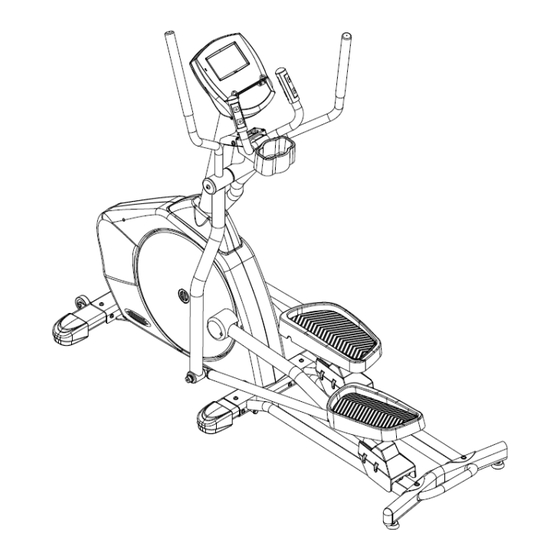

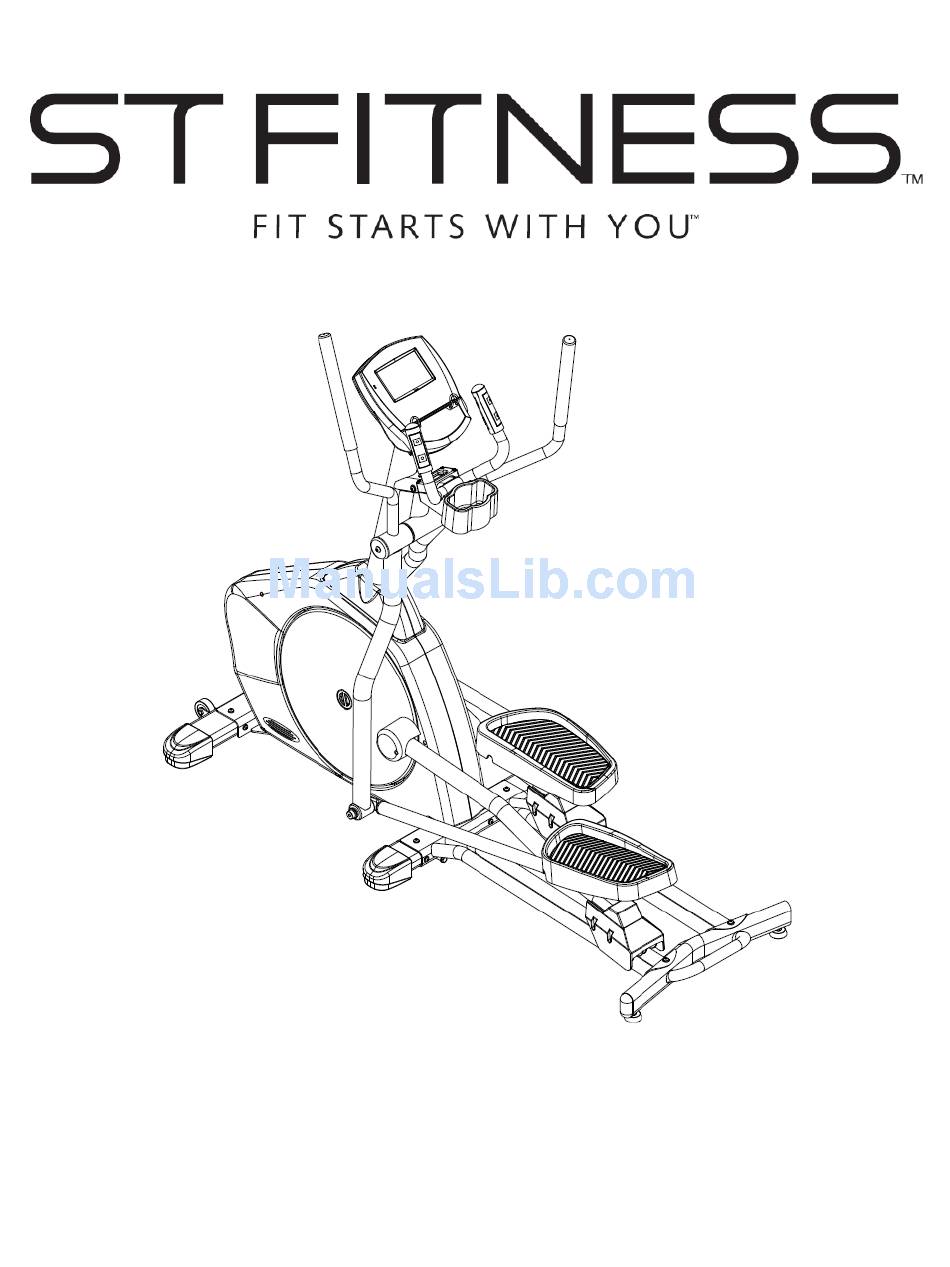

ST Fitness 8810 Owner's Manual & Assembly Instructions

Hide thumbs

page of 24

/ 24
Bookmarks

Quick Links

Download this manual

8810

SSEMBLY

MPORTANT

READ ALL ASSEMBLY INSTRUCTIONS AND SAFETY PRECAUTIONS BEFORE USING THIS PRODUCT. REFERENCE ALL

MPORTANT

SAFETY GUIDELINES AND WARNING LABELS. RETAIN PRODUCT LITERATURE FOR FUTURE REFERENCE.

AFETY

PROPERLY WARM UP AND STRETCH BEFORE EXERCISING. IF YOU FEEL PAIN OR DIZZINESS AT ANY TIME WHILE

EXERCISING , STOP IMMEDIATELY AND CONSULT YOUR PHYSICIAN.

SERIAL NO. __________________________________________ PURCHASE DATE:_______________________

Part No. 06160

LLIPTICAL

NSTRUCTIONS

RAINER

/ O

WNERS

ANUAL

Revision: C Date: 09/08

Need help?

Do you have a question about the 8810 and is the answer not in the manual?

Questions and answers

Summary of Contents for ST Fitness 8810

Page 1 8810 8810 LLIPTICAL RAINER LLIPTICAL RAINER SSEMBLY NSTRUCTIONS WNERS ANUAL SSEMBLY NSTRUCTIONS WNERS ANUAL MPORTANT MPORTANT READ ALL ASSEMBLY INSTRUCTIONS AND SAFETY PRECAUTIONS BEFORE USING THIS PRODUCT. REFERENCE ALL MPORTANT SAFETY GUIDELINES AND WARNING LABELS. RETAIN PRODUCT LITERATURE FOR FUTURE REFERENCE.
Page 2 ABLE OF ONTENTS 8810 E 8810 E LLIPTICAL RAINER LLIPTICAL RAINER EFERENCE NFORMATION Assembly Prep & Intro Parts Listing Hardware Chart Product Exploded View Product Assembly Instruction 6-11 Computer Operation 12-18 Troubleshooting Preventative Maintenance Warranty Terms Product Registration MPORTANT RECAUTIONS...
Page 3 & I SSEMBLY NTRO SSEMBLY REPARATION SSEMBLY REPARATION ♦ The product assembly process has been documented in easy to follow stages. Please read all assembly instructions carefully. Take time to review the manual and familiarize yourself with the entire assembly process before proceeding.
Page 4 ARTS EFERENCE 8810 P 8810 P ARTS ISTING ARTS ISTING Item Part # Description QTY. Item Part # Description QTY. ST01897 Curved Washer 19x8.5x1.5t Main Base Assembly ST02157 Phillips Screw M6x1.0x35L ST23635 Front Stabilizer Assembly ST02140 Truss Head Screw M5 x .8 x 10L...
Page 5 ARDWARE HART 8810 ARDWARE EFERENCE ARDWARE EFERENCE NOTE: Most of the listed assembly hardware has been packaged separately, but some hardware items have been preinstalled in the identified assembly parts. In these instances, simply remove and reinstall the hardware as assembly is required. Please reference the individual assembly...
Page 6 XPLODED ARTS 8810 ARTS ARTS 1-877-530-7782 USTOMER ERVICE USTOMER ERVICE...
Page 7 SSEMBLY NSTRUCTION SSEMBLY TAGE Attach Stabilizers DJUSTMENT EVELER Assembly Hardware Required: Cap Screw Qty. 4 Curved Washers Qty. 2 Cap Screw Qty. 4 Flat Washer Qty. 16 Cap Screw Qty. 6 Assembly Description: Securely fasten the Front Stabilizer Assembly (#2) to the Base Assembly (#1) using 4-Cap Screws (#16) and 4-Flat Washers (#32).
Page 8 SSEMBLY NSTRUCTION SSEMBLY STAGE Attach Mast Assembly Hardware Required: Cap Screw w/ Loctite Qty. 6 Curved Washer Qty. 6 Assembly Description: A) Slide the Mast Boot (#4) over the lower end of the Mast (#5). For easier assembly, tape or hold the boot up out of the way of the hardware mounting area.
Page 9 SSEMBLY NSTRUCTION SSEMBLY STAGE Attach Computer Assembly Hardware Required: Truss Head Screw Qty. 12 Phillips Screw M6 x 35L Qty. 4 Assembly Description: A) Remove the pre-installed hardware from the back of the Computer (#7). Install the supplied AA batteries in the battery pack on the back of the Computer (#7).
Page 10 SSEMBLY NSTRUCTION SSEMBLY STAGE Attach Pedal Arms Assembly Hardware Required: Hex Screw Qty. 2 Flat Washer Qty. 4 Nylon Nut Qty. 2 Assembly Description: A) Attach the Right Pedal Arm Assembly (#12) to the Right Roller Arm using 1-Hex Head Bolt (#23), 2-Flat Washers (#24), and 1- Nylon Nut (#25) following the orientation shown above.
Page 11 SSEMBLY NSTRUCTION SSEMBLY STAGE Attach Swing Arms CENTER PIVOT SHAFT Assembly Hardware Required: Shoulder Bolt Qty. 2 Flat Washer Qty. 2 Plastic Washer Qty. 2 Wave Washer Qty. 2 Cap Screw w/ Loctite Qty. 2 Pivot Cover Qty. 2 Safety Note: The Swing Arms will rotate freely on the Center Shaft until they have been attached to the corresponding Pedal Arm. Assembly Description: A) Slide the Left Swing Arm Assembly (#13) over the left end of the Center Pivot Shaft.
Page 12 SSEMBLY NSTRUCTION SSEMBLY STAGE Supplying Power Assembly Hardware Needed: Assembly Description: Note: This product requires AC voltage. Make sure bike is located near a wall outlet. (AC Adapter will have an approximate cord length of 5 feet). Assembly The Adapter converts AC voltage to a low DC output. The Caution: Adapter can be shorted if it is improperly grounded while plugging it into a wall outlet.
Page 13 OMPUTER PERATION OMPUTER NSTRUCTION OMPUTER NSTRUCTION BUTTON INPUT & DISPLAY FUNCTIONS NOTE: THESE ARE THE BASIC OPERATING FUNCTIONS OF EACH BUTTON. ACTUAL PROGRAMMING MAY REQUIRE A ACTIVATION SEQUENCE OF MORE THAN ONE BUTTON (REFERENCE PROGRAM DESCRIPTIONS) [A] QUICK START / PAUSE Activates & Stops Computer Functions. During a workout: 1) Pressing the button once will pause the workout program.
Page 14 OMPUTER PERATION OMPUTER NSTRUCTION OMPUTER NSTRUCTION DISPLAY FUNCTIONS / READINGS Computer display will accumulate total training time in 00:00 (minutes : Seconds). Computer will count TIME up to, or down from, a maximum value of 99:00. Preset target training time: after selecting a workout program, the user is prompted via scrolling mes sage in the lower display to “enter workout time”.
Page 15 OMPUTER PERATION OMPUTER NSTRUCTION OMPUTER NSTRUCTION 1) ACTIVATION (START UP) Start pedaling to activate the computer display. A beep will sound and the display will illuminate. 2) SET UP STEPS Once activated, the display will show “U1” and the message “SELECT USER”. Use the UP OR DOWN buttons to select either user ID 1 or user ID 2.
Page 16 OMPUTER PERATION RAINING ROGRAMS RAINING ROGRAMS ♦ ANUAL ROGRAM This is the basic training program and is the default program when the user selects the QUICK START feature. If the MANUAL program is chosen after user ID selection, the user is able set Target Functions (Workout Time &...
Page 17 Computer Operation RAINING ROGRAMS RAINING ROGRAMS ♦ – FAT BURN , CARDIO AND HR INTERVAL TRAINING PROGRAMS ARGET EART ODES This training is base on Zone Training. This type training requires an individual to exercise within a set percent age of their maximum heart rate. A users maximum heart rate is based on a basic formula; (220 BPM - Users Age = Maximum HR).
Page 18 RAINING HART RAINING RAINING USER PRO- RESISTANCE TOTAL TOTAL CALO- DATE TOTAL TIME HEART RATE GRAM LEVEL DISTANCE...
Page 19 RAINING HART RAINING RAINING USER PRO- RESISTANCE TOTAL TOTAL CALO- DATE TOTAL TIME HEART RATE GRAM LEVEL DISTANCE...
Page 20 ROUBLESHOOTING ROUBLESHOOTING ROUBLESHOOTING PROBLEM DESCRIPTION SUGGESTED SOLUTION 1.1 CHECK AC ADAPTER FOR PROPER VOLTAGE OUTPUT (9-12 VDC). 1. NO DISPLAY INSPECT PLUG-IN RECEPTACLE ON THE FRONT OF THE UNIT FOR DAMAGE. CHECK CABLE CONNECTIONS: MAKE SURE CONNECTIONS ARE SECURE AND IN THE CORRECT ORIENTATION. CHECK CABLE ASSEMBLIES FOR DAMAGE: PINCH POINTS &...
Page 21 REVENTATIVE AINTENANCE QUIPMENT AINTENANCE QUIPMENT AINTENANCE ♦ Use a dampened soft-cloth to wipe equipment free of perspiration after each use. Avoid getting excessive moisture on computer or electronic components. Do not use abrasive cleaners or petroleum-based solvents to clean equipment. ♦...
Page 22: Product Registration
IMITED ARRANTY General Terms & Conditions All Star Trac Health & Fitness, Inc. exercise products are warranted Exclusive Remedies to be free from defects in materials and workmanship under the terms of recommended use and warranty coverage. For any product that fails to conform under the terms of applied warranty, Star Trac Health &...
Page 23 RODUCT EGISTRATION Thank you for purchasing a Star Trac Health & Fitness, Inc. product. Our products are designed and manufactured to the highest quality standards. We are committed to our customers satisfaction and we will do everything we can under the con- ditions of your product warranty to keep you secure in your product purchase.
Page 24 STAMP & F & F & F EALTH EALTH EALTH ITNESS ITNESS ITNESS 1844 N 1844 N 1844 N ELSON ELSON UITE UITE ELSON UITE , 80501 , 80501 , 80501 ONGMONT OLORADO ONGMONT ONGMONT OLORADO OLORADO FOLD LINE & T LOSED OR EGISTRATION IN A EPARATE...
