SECOLink GSV4M Owners And Wiring Manual page 2

Universal GSM / GPRS communicator
GSV4M – GSM / GPRS communicator is designed to be used with other manufacturers' intruder alarm systems. The communicator expands
the functionality of other manufacturers' intruder alarm systems by giving the options to report to the receiver of central monitoring station via
GPRS, to send a notification via SMS or phone call.
trigger the outputs to turn on an LED or activate an input on the host panel
It is possible to connect GSV4M to control the panel in few different ways:
Connection to the PSTN dialer of control panel. By simulating an analog telephone line GSV4M enables the control panel with PSTN dialer to
report to CMS or the user. Compatible with control panels that communicate using the Contact ID format.
Connection to the control panel keybus. GSV4M analyses the control panel keybus, and when it is necessary, sends a report to CMS or
notification to the user.
Connection to control panel PGM outputs. In case of alarm, the control panel output triggers GSV4M input. The communicator acts as
programmed and sends the report to CMS or notification to the user.

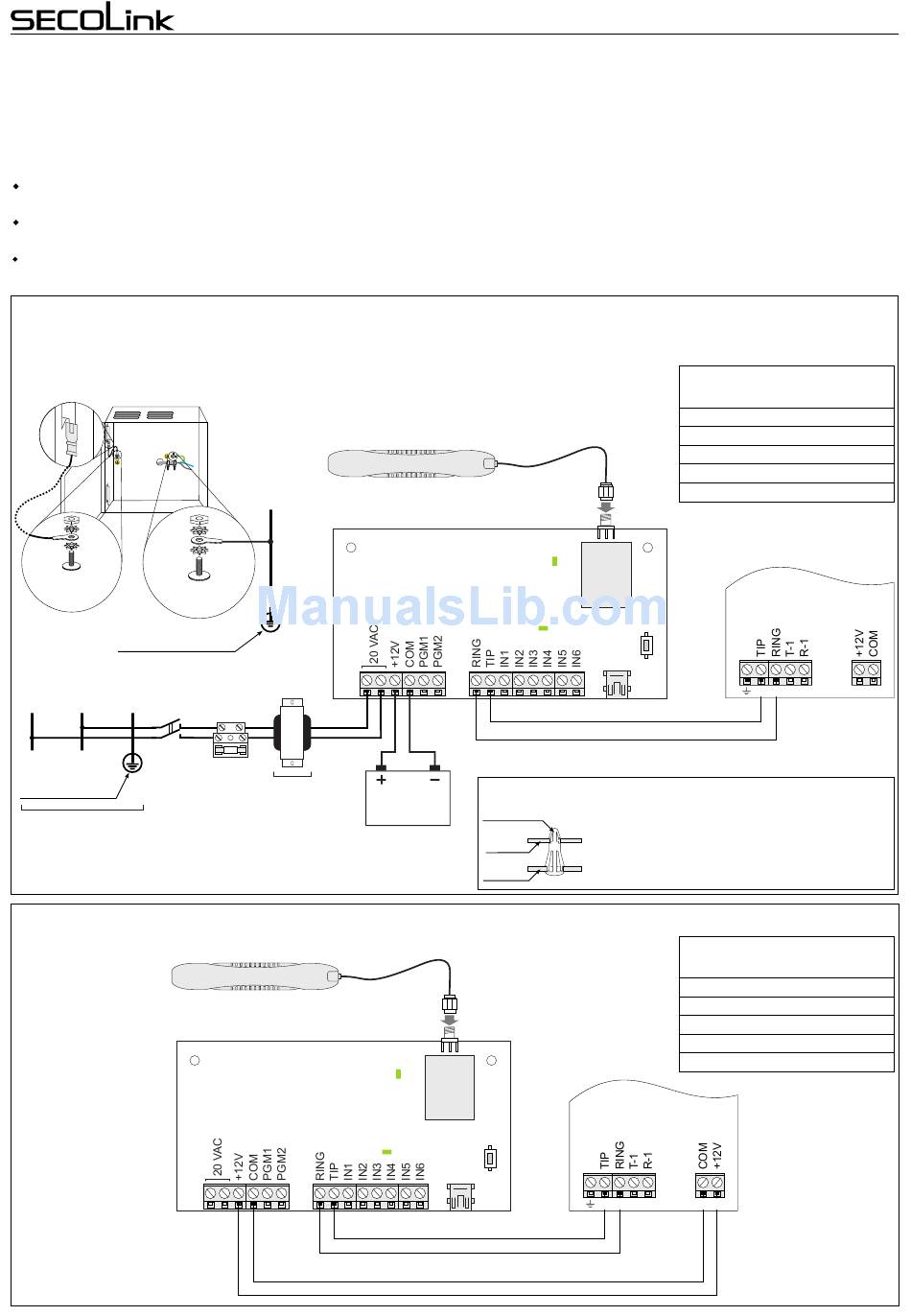

Connection to PSTN dialer of control panel. The communicator is powered from independent power supply
GSM/GPRS communicator GSV4M is powered from an independent power supply. The independent power supply that contains a fuse block, power
transformer and 12V 7Ah battery together with the communicator have to be placed in a grounded metal housing.
Grounding
Grounding
place
Main Protective
Earthing terminal
Live Neutral Protective
wire wire Earth wire
L N PE
Main Protective
Earthing terminal
Primary winding: 230V AC 50Hz
Secondary winding:
Power supply
distribution board
Connection to PSTN dialer of control panel. The communicator is powered from control panel power supply
GSV4M
2
The communicator has two open collector outputs capable of a maximum of 50mA. User can
Protective
Earth wire
PE
GSV4M
place
Fuse
250mA
AC power transformer:
~
~ 20V AC 50Hz
GSV4M communicator
(for example, to trigger a key-switch zone and arm / disarm the system).
12V battery
7Ah/20HR
Plastic stud
GSV4M
Cabinet
S1
Control panel PSTN dialer
Reporting:
Format:
Phone number for dialling:
Phone line monitoring:
Dial tone search:
S1
TIP
RING
Mounting communicator in cabinet
Communicator has to be fastened in cabinet by
using plastic studs. Communicator mounting holes
should correspond to cabinet's rear wall holes. Do
not forget to fix the plastic studs in the rear holes
before fastening the cabinet on a wall.
Control panel PSTN dialer
Reporting:
Format:
Phone number for dialling:
Phone line monitoring:
Dial tone search:
Control panel
TIP RING T-1 R-1 COM +12V
GSV4M
Wiring manual
programming
Enabled
Contact ID
12345
Disabled
Disabled
Control panel
TIP RING T-1 R-1 +12V COM
programming
Enabled
Contact ID
12345
Disabled
Disabled
