User's Guide to the
Product: Optical Power Meter
Type: FHP12 series
Manufacturer: Grandway
Origin: shanghai
Application: maintenance and test of telecommunication line,cable
manufacturer , test of FTTx
Description

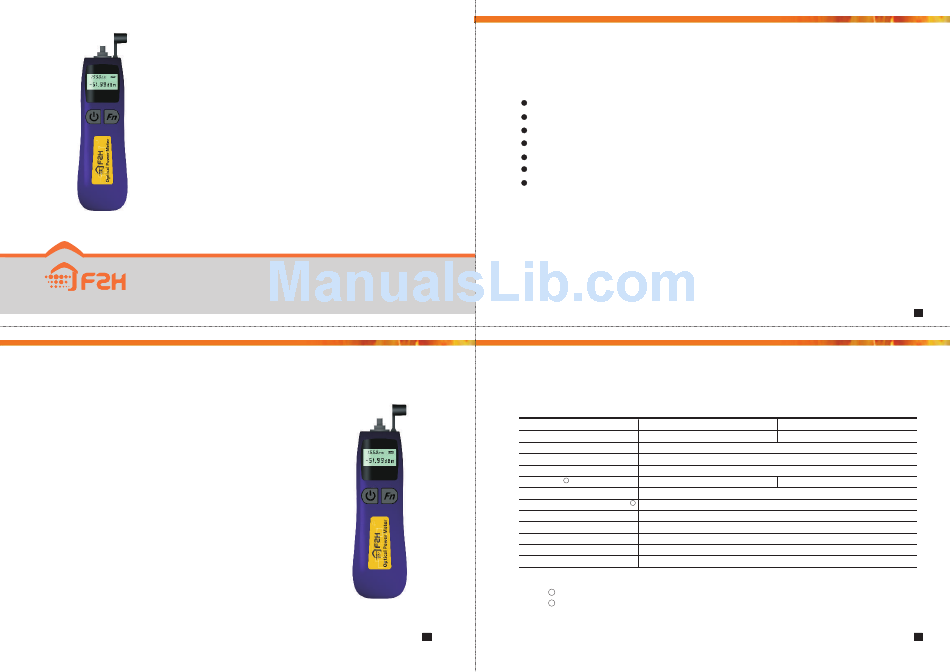

FHP12 Pen type optical power meter has compact structure and
s t a b l e p e r f o r m a n c e , e n s u r e h i g h m e a s u r i n g p r e c i s i o n o f
850nm,1300nm,1310nm,1490nm,1550nm and 1625nm wavelengths.
Use together with GS series optical source could accurately measure
the loss of fiber, cable and other passive optical device.
FHP12
Mini Optical Power Meter
www.grandway.com.cn
WWW. GRANDWAY.COM.CN
1
Features
Imported sensor head .
2.5mm universal interface(support FC/SC/ST connectors).
Low power consumption ,continously work more than 80 hours .
Linear optical power and logarithmic power display.
Power remains indication. Relative value measurement function.
Compact and portable design.
Specification
Type
FHP12-A
Display Range
+10~-70dBm @1550nm
Resolution(dB)
Calibrated Wavelength(nm)
Sensor Type
Accuracy
1
0.35dB ±1nW
Working Wavelength(nm)
Continuous Working Hours
2
About 80 hours(stand-by time: About 1600hours)
Power Source
Working Temp
Storage Temp
Accessory
2 pieces of AAA batteries, Quick guide, Packing box, Carrying case
Dimension
Note:
With1550nm mode, under 23℃±3℃ test condition
1
New battery, under23℃±3℃ test condition
2
WWW. GRANDWAY.COM.CN
WWW. GRANDWAY.COM.CN
FHP12-B
+26~-50dBm @1550nm
0.01
850/1300/1310/1550/1490/1625
InGaAs
0.35dB ±10nW
800~1700
Operates with two AAA batteries
℃
-0~+40
; <90%RH
℃
-20~+70
; <90%RH
L120mm*W33mm*H30mm / About70g
2
3
