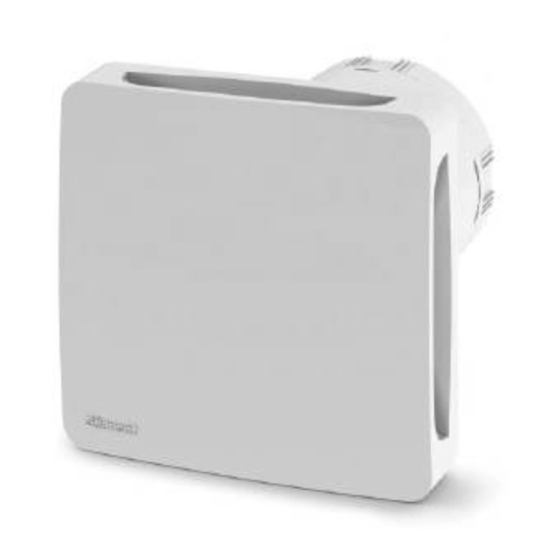

DOMUS Ventillation GTF100LV-PC Installation Instructions & Owner's Manual

V E N T I L A T I O N

Range:

GTF100LV-S Standard
GTF100LV-PC Pull-cord switch
GTF100LV-T Overrun timer
GTF100LV-H Humidistat and optional overrun timer
GTF100LV-HPC Humidistat and optional overrun timer and pull-cord switch override
*All of the above are available with integrated backdraught shutters. Add 'BS' to the end of the codes above to
specify backdraught shutters.

Operation:

Overrun timer adjustment – models fitted with overrun timers only
Before making any adjustments, isolate the fan from the power supply. Remove the front cover and the inner cover.
Locate the 'jumper' on the relevant set of pins to achieve the desired run-on time (see Diagram 5).
Humidity adjustment – humidistat models only
All STF humidistat fans automatically sense a rapid change in humidity and adjust accordingly. The humidity control
does not require manual adjustment. Humidistat fans, when energised for the first time, will run and time out as part
of the stabilising process.

Performance:

24 l/s at 0 Pa – 27 Pa at 0 l/s

Rating:

230V 50Hz 4W
This product is double insulated and does not require an earth conductor.
Maximum room temperature 40ºC.
