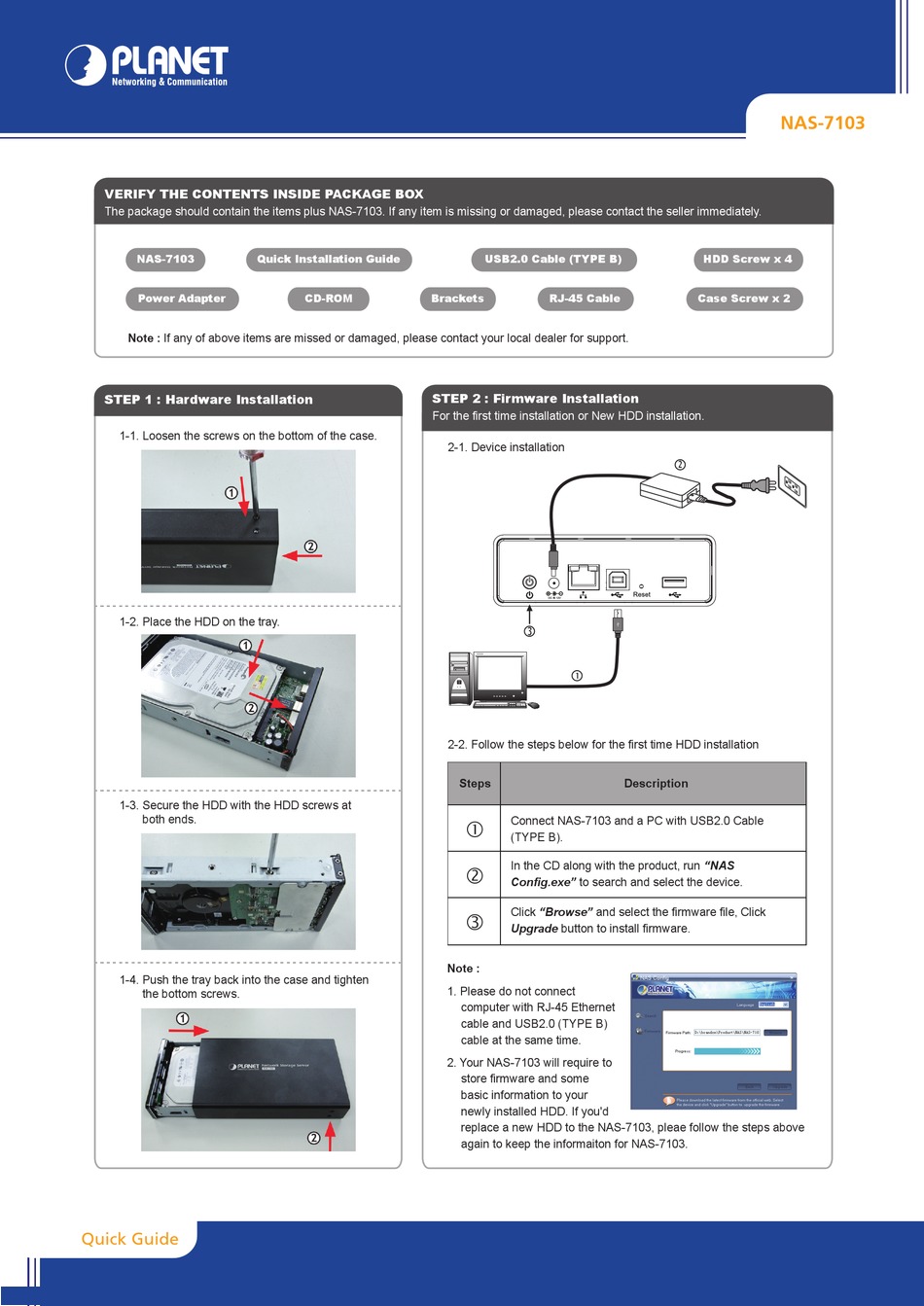

Planet NAS-7103 Installation Manual

VERIFY THE CONTENTS INSIDE PACKAGE BOX
The package should contain the items plus NAS-7103. If any item is missing or damaged, please contact the seller immediately.
NAS-7103
Power Adapter
Note : If any of above items are missed or damaged, please contact your local dealer for support.
STEP 1 : Hardware Installation
1-1. Loosen the screws on the bottom of the case.
1-2. Place the HDD on the tray.
1-3. Secure the HDD with the HDD screws at
both ends.
1-4. Push the tray back into the case and tighten
the bottom screws.

Quick Guide

Quick Installation Guide
CD-ROM Brackets
USB2.0 Cable (TYPE B)
RJ-45 Cable
STEP 2 : Firmware Installation
For the first time installation or New HDD installation.
2-1. Device installation


2-2. Follow the steps below for the first time HDD installation
Steps
Connect NAS-7103 and a PC with USB2.0 Cable

(TYPE B).
In the CD along with the product, run "NAS

Config.exe" to search and select the device.
Click "Browse" and select the firmware file, Click

Upgrade button to install firmware.
Note :
1. Please do not connect
computer with RJ-45 Ethernet
cable and USB2.0 (TYPE B)
cable at the same time.
2. Your NAS-7103 will require to
store firmware and some
basic information to your
newly installed HDD. If you'd
replace a new HDD to the NAS-7103, pleae follow the steps above
again to keep the informaiton for NAS-7103.
NAS-7103
HDD Screw x 4
Case Screw x 2

Description
