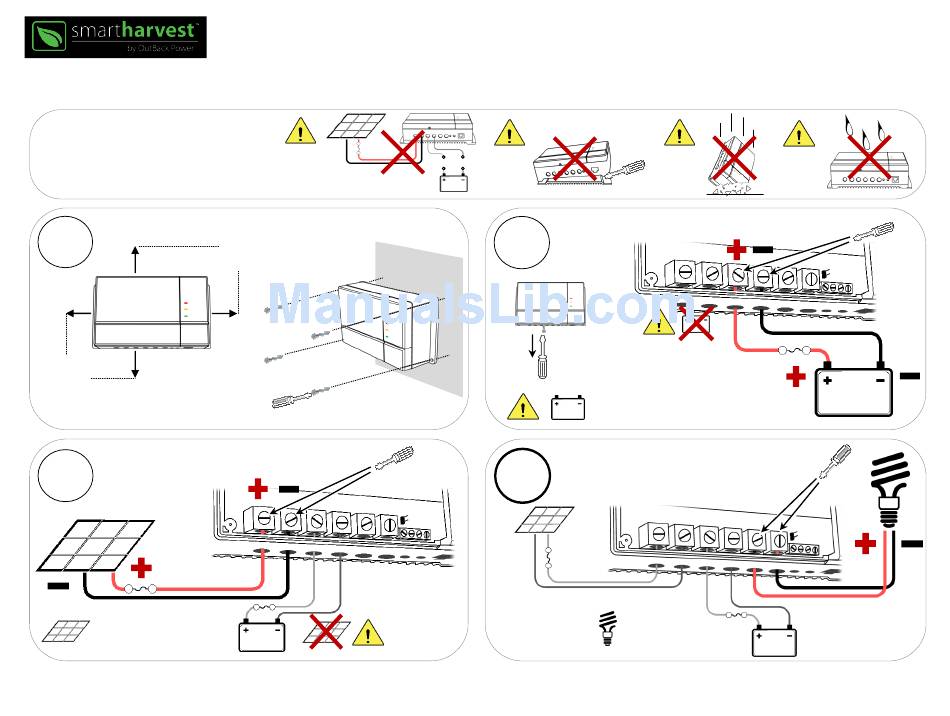

NOTE:
Follow instructions in order.
Charge batteries at least once a week.
Use reducers to connect larger wires
to terminals.
1
Clearance and orientation
15 cm
15 cm
(6")
15 cm (6") clearance
3
Install PV wires
< 20 amps
For more information on this product, visit www.smartharvestbyoutback.com
Do not disconnect
battery while PV is active
Mount on wall with 4 screws
(6")
No PV here

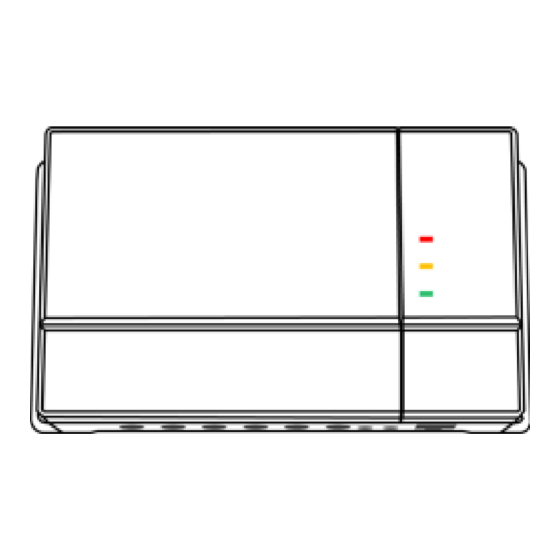

MPPT Charge Controller/Load Manager
Do not
Do not
open
drop
2
Remove
Install battery wires
wiring
cover
No battery here
= 12/24 volts only
Install load wires
4
0.25 amps <
< 20 amps
SCCM20-100
Owner's Manual
Do not
get wet
1
Advertisement
Summary of Contents for Smartharvest SCCM20-100
- Page 1 SCCM20-100 MPPT Charge Controller/Load Manager Owner’s Manual NOTE: Follow instructions in order. Charge batteries at least once a week. Use reducers to connect larger wires Do not disconnect Do not Do not Do not to terminals. battery while PV is active...
- Page 2 SCCM20-100 Owner’s Manual Battery Indicators Selection (blink Jumper (on) (Warning) flash) (blink YELLOW Jumper inserted at factory (on) (Battery) flash) Jumper Removed: Flooded (blink Battery Charging GREEN (on) (PV) flash) Jumper Inserted: VRLA Battery Charging Disconnect Battery < 20% Critical...
- Page 3 SCCM20-100 Owner’s Manual Symbols Caution: Risk of Electric Shock Caution: Hot Surface Caution: Equipment Damage When disposing, keep this product Double or reinforced insulation; separate from household waste; Refer to operating instructions Grounding is unnecessary recycle this product Features LED Indicators...
- Page 4 SCCM20-100 Owner’s Manual Specifications Section Name 12 Vdc 24 Vdc Section Name 12 Vdc 24 Vdc Controller Type MPPT Minimum Load Size 0.25 Adc Loads Wattage (maximum) 300 W 600 W Maximum Output Current 20 Adc (range) Internal Protection Battery Reversal, PV Reversal...
