Giant NeosGPS Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

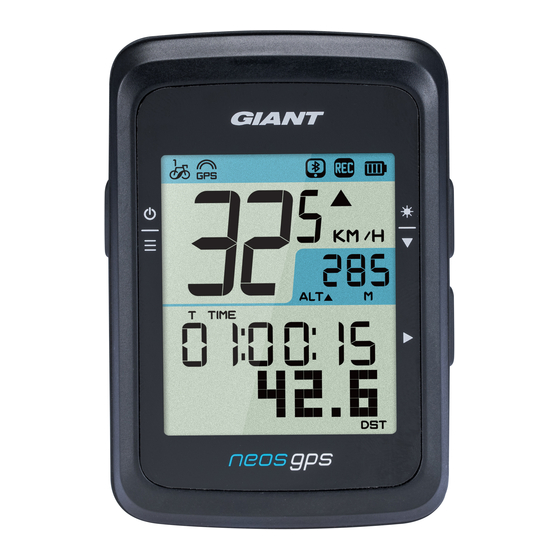

NeosGPS
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NeosGPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Giant NeosGPS

Summary of Contents for Giant NeosGPS

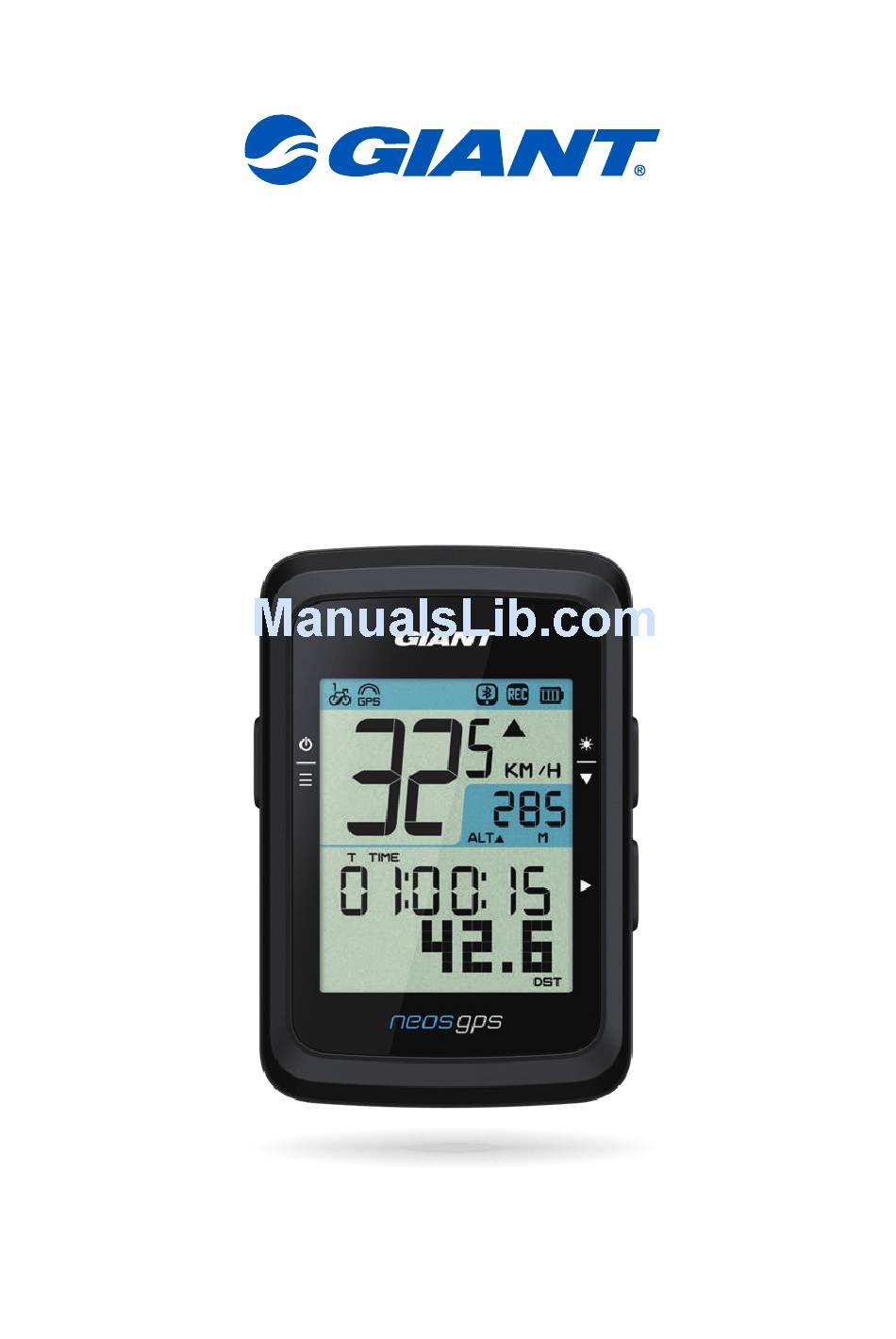

  • Page 1 NeosGPS Operation Manual...

  • Page 2: Table Of Contents

    Sensor (optional)........19 Step 1: Charging your Install Smart Heart Rate Monitor NeosGPS..........5 Belt (optional) ........20 Step 2: Turn On NeosGPS.... 5 Wheel Diameter and Step 3: Initial Settings....5 Circumference........21 Step 4: Connecting to NeosGPS Basic Maintenance ... 22 Satellite Signal ........

  • Page 3: Getting Started

    Getting Started This section explains the basic setup procedure before using your NeosGPS. NeosGPS Button Introduction Backlight/Page ( Power/OK ( • Press and hold to turn the backlight • Press to turn on the device. on/off. • Press and hold to turn the device off.

  • Page 4: Accessories

    Accessories NeosGPS comes with the following accessories: • Bicycle mount • USB charging cable Optional accessories include: • GIANT HEART RATE SENSOR(410000075) • RideSync/Garmin & Gopro Mount • RideSync/Garmin & Gopro Mount for for 31.8mm Round Bars (410000072) Contact SLR Aero Handlebars (410000073)

  • Page 5: Step 1: Charging Your Neosgps

    Step 1: Charging your NeosGPS Remove the USB cable from the packaging and connect your NeosGPS to your computer for auto charging. Please charge it for at least 4 hours. Remove the USB cable once it is fully charged. fully charged.

  • Page 6: Step 4: Connecting To Satellite Signal

    Step 4: Connecting to Satellite Signal Once the NeosGPS is powered on it will start searching for satellite signals automatically. It may take 30 to 60 seconds to receive satellite signals. Please acquire GPS positioning before using it for the rst time.

  • Page 7: Sync Records To The Giant Neostrack App

    Start Using the Giant Mobile App 1. Download the Giant Mobile App. Scan the QR Code at the bottom of the page to download the Giant NeosTrack APP or search for and download it in the Google Play/App Store. 2. Register with the Giant NeosTrack APP.
  • Page 8 Bluetooth Pairing With the Giant NeosTrack App NeosGPS can sync wirelessly with a Bluetooth connection. Please pair NeosGPS with the NeosTrack App before any sync to enable correct records synchronization. a. Enable the "Bluetooth" function b. Press the Power key to enable c.
  • Page 9 1. Check this website to see if there is a newer version. www.giant-bicycles.com/download 2. Connect to the USB port of a computer, save les in NeosGPS folder. 3. Unplug the USB cable once the operation is completed and the NeosGPS will start updating automatically. Identify Whether Your NeosGPS is the Latest Version 1.

  • Page 10: Setup

    3. Press to select 12h or 24h, press to validate the selection made. 4. The daylight saving time page of the NeosGPS display, press to select the desired number, press to validate the selection made and proceed to the next one. Repeat the above steps to complete the setting.

  • Page 11: Altitude Calibration

    3. Press to select BIKE1 or BIKE2, press to validate the selection made. 4. The wheel diameter page of the NeosGPS will display, press to select the desired number, press to validate the selection made and proceed to the next one. Repeat the above steps to complete the setting.

  • Page 12: Enable Gps

    6. Once all settings have been made, press to exit the setup page. Note: • Keep away from other Bluetooth sensors when pairing. • After successful pairing, the NeosGPS smart sensor will auto connect to the device once it is awoken. Setup...

  • Page 13: Delete Records

    Note: • NeosGPS may log up to 120 hours of biking in the smart recording mode and up to 30 hours of biking by entry-per-second mode. • When you start riding or press to start recording, the number of hours left for recording display in cells at the center of the page.

  • Page 14: Advanced Settings

    Giant Advanced Settings After NeosGPS is paired with the Giant NeosTrack App, you can change the stopwatch information and correct the altitude. Custom Page Information You may change the stopwatch information page, set up MHR (Max Heart Rate) and LTHR (Lactate Threshold Heart Rate), enable/disable smart pause, and data recording frequency according to your training objectives.

  • Page 15: Altitude Calibration

    Open NeosGPS. b. Enable the Bluetooth function of your cell phone. c. In the Giant NeosTrack App, click through Setup > User Setup > Device Management. d. Press the "+" key and select Bluetooth 4.0. e. Select the device you want to pair with then click the "+" key.

  • Page 16: Smart Noti Cations

    Turn on NeosGPS. b. Enable the Bluetooth function of your cell phone. c. In the Giant NeosTrack App, click through Setup > User Setup > Device Management. d. Press the "+" key and select Bluetooth 4.0. e. Select the device you want to pair with then click the "+" key.

  • Page 17: Appendix

    Appendix Speci cations NeosGPS Item Instructions Stopwatch Information 2” code break HTN LCD Display Dimensions 71 x 46.2 x 16.5 mm Weight Operating Temperature -10°C~50°C Battery Charging 0°C~40°C Temperature Battery Lithium battery Battery Service Time In open sky for 16 hours...

  • Page 18: Install Neosgps

    Install NeosGPS Mount NeosGPS to a Bicycle Mount Use a Circular/Flat Tube Headlight Stopwatch Base to Install NeosGPS (optional) Appendix...

  • Page 19: Install Smart Speed/Cadence Sensor (Optional)

    Install Smart Speed/Cadence Sensor (optional) Appendix...

  • Page 20: Install Smart Heart Rate Monitor Belt (Optional)

    • DO NOT wear your heart rate monitor over clothing; wear it directly on your body instead. • Position the sensor in the middle of your body (wear it below the chest). Point the Giant logo shown on the sensor upward; secure the elastic band to prevent it from falling o during exercise.

  • Page 21: Wheel Diameter And Circumference

    Wheel Diameter and Circumference The wheel diameter is indicated on both sides of the tire. Wheel Diameter Length (mm) Wheel Diameter Length (mm) Appendix...

  • Page 22: Neosgps Basic Maintenance

    NeosGPS Basic Maintenance Good maintenance can reduce the risk of damage. • DO NOT drop this device or subject it to heavy impacts. • DO NOT expose this device to extreme cold/hot or high humidity environments. • The screen surface is prone to being scratched. Please use a non-adhesive general purpose screen protector to protect it from minor scratches.

  • Page 23: Digital Information

    Digital Information Some data will display only after being paired with a Bluetooth sensor and connected to the device. Time: Current GPS satellite time. Ride Time: Time elapsed since the beginning of this ride. Trip Time: Total time spent on current trip (stops included). Distance: Distance traveled over current ride.

  • Page 24: Declaration Of The Presence Condition Of The Restricted Substances Marking

    限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱： GPS Bike Recorder, 型號（型式）：NeosGPS Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 單元Ｕnit 鉛Lead 汞Mercury 鎘Cadmium Hexavalent Polybrominated Polybrominated chromium biphenyls...
