Summary of Contents for Marashall AR-DM51-B

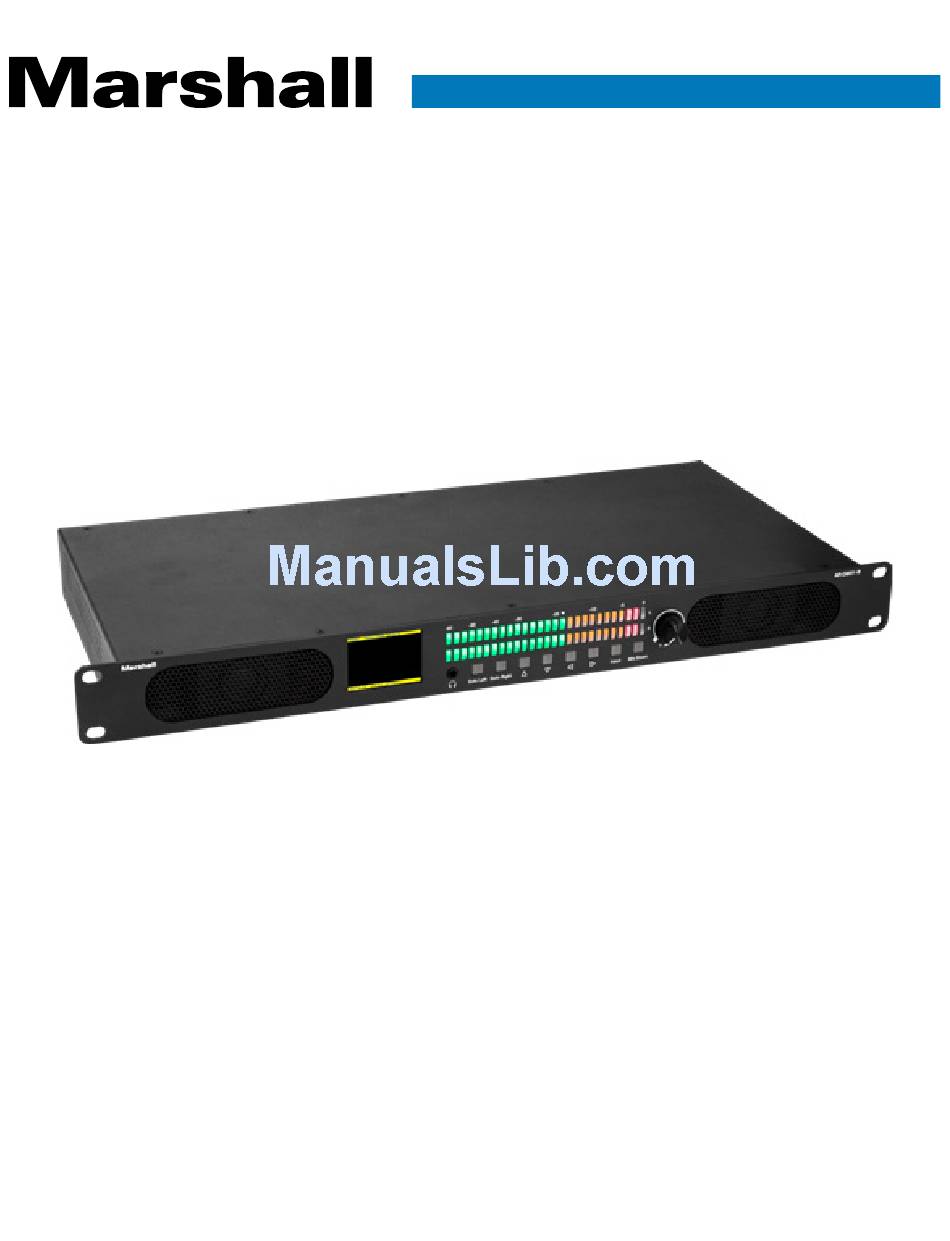

- Page 1 B r o a d c a s t A / V D i v i s i o n AR-DM51-B Digital Audio Monitor User Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction 2. Features 3. Package Contents 4. Front Panel 5. Control Buttons 6. Rear Panel 7. Specifications 8. Operation 9. Software 9.1. Connecting by Ethernet 9.2. Connecting by Serial Link 9.3. Using the Remote Control Application Warranty... -
Page 3: Introduction
The Marshall AR-DM51-B Digital Audio Monitor emphasizes a straight-forward, high-quality design and simplicity of operation. The AR-DM51-B exceeds the capabilities of many larger 2RU designs, and is equally at home in production fly packs, news vans, remote OB vans, and equipment rooms. -
Page 4: Package Contents
3. Package Contents Please ensure the following are included: • One AR-DM51-B Main Chassis • One 12-Volt Universal Power supply (120/240V – 50/60Hz) Additionally, free control software is available for download on the Marshall website. Visit www. marshall-usa.com for more information.) 4. -
Page 5: Control Buttons
AR-DM51-B Manual 5. Control Buttons 1. Solo Left & Solo Right Press one of these to isolate the left or right channel only. Note: Sound will come out of both speakers when a solo channel is selected but will originate from a single source. -
Page 6: Rear Panel
6. Rear Panel 9 10 1. Power Switch 2. 12-Volt DC Power Input XLR 4-pin 3. RS-232 Serial Control 9-pin D-Sub Port 4. Ethernet Control RJ-45 Port 5. HDMI Input 6. SDI Input and Loop Out 7. Analog Balanced XLR Inputs (2 channels) 8. -
Page 7: Specifications
AR-DM51-B Manual 7. Specifications Model Name AR-DM51-B Technical HDMI 2.0 x 1 Video Inputs 3G SDI x 1 with looping output HDMI Up to 4K2K@60fps (4:4:4 sampled 8-bits) Video Formats Supported SDI up to 1080p50, 59.94,60 (4:2:2 sampled 10-bits) HDMI HDCP HDCP 2.2 and 1.4 Supported... -
Page 8: Operation
8. Operation Controls on the AR-DM51-B are designed to be extremely straight-forward. To start, simply press the Input button to select the desired source, then adjust the volume knob to the desired listening level. Metering Type The default audio metering type is PPM (Peak Program Meter). The metering type can be switched to VU (averaging) using the remote control software (available from the Marshall website at: www.marshall-usa.com/) -
Page 9: Software
9. Software A free application is available for download from the Marshall Electronics website at: www.marshall- usa.com/. The AR-DM51-B may be operated and configured from a Windows® computer either by an Ethernet or Serial (RS-232) link. Download and unzip and extract the file “xxxx.exe” to a folder or to the desktop. Double-click the file and it will open immediately and appear similar to this: www.marshall-usa.com... -
Page 10: Connecting By Ethernet
9.1 Connecting by Ethernet To control the AR-DM51-B using an Ethernet connection, first select the “Telnet” radio button in the upper left corner, then select “Static IP” if you wish to enter IP parameters manually. Select “DHCP” if the IP address will be automatically assigned from a network router or DNS server. -
Page 11: Connecting By Serial Link
USB. The most common connector type will be a 9-pin DSub similar to the one on the back of the AR-DM51-B. When that is the case, a successful connection can be made using a “Null Modem Cable” or making a cable like this:... -
Page 12: Using The Remote Control Application
Also, there are controls for the front panel video display Brightness, Contrast, and Color Saturation. When a firmware update is issued for the AR-DM51-B, the Firmware Update button will initiate the update process. Updates may be performed over Ethernet or RS-232 serial link. Please follow the latest instructions included with the update as procedures may change with the update. -
Page 13: Warranty
Warranty Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty.
