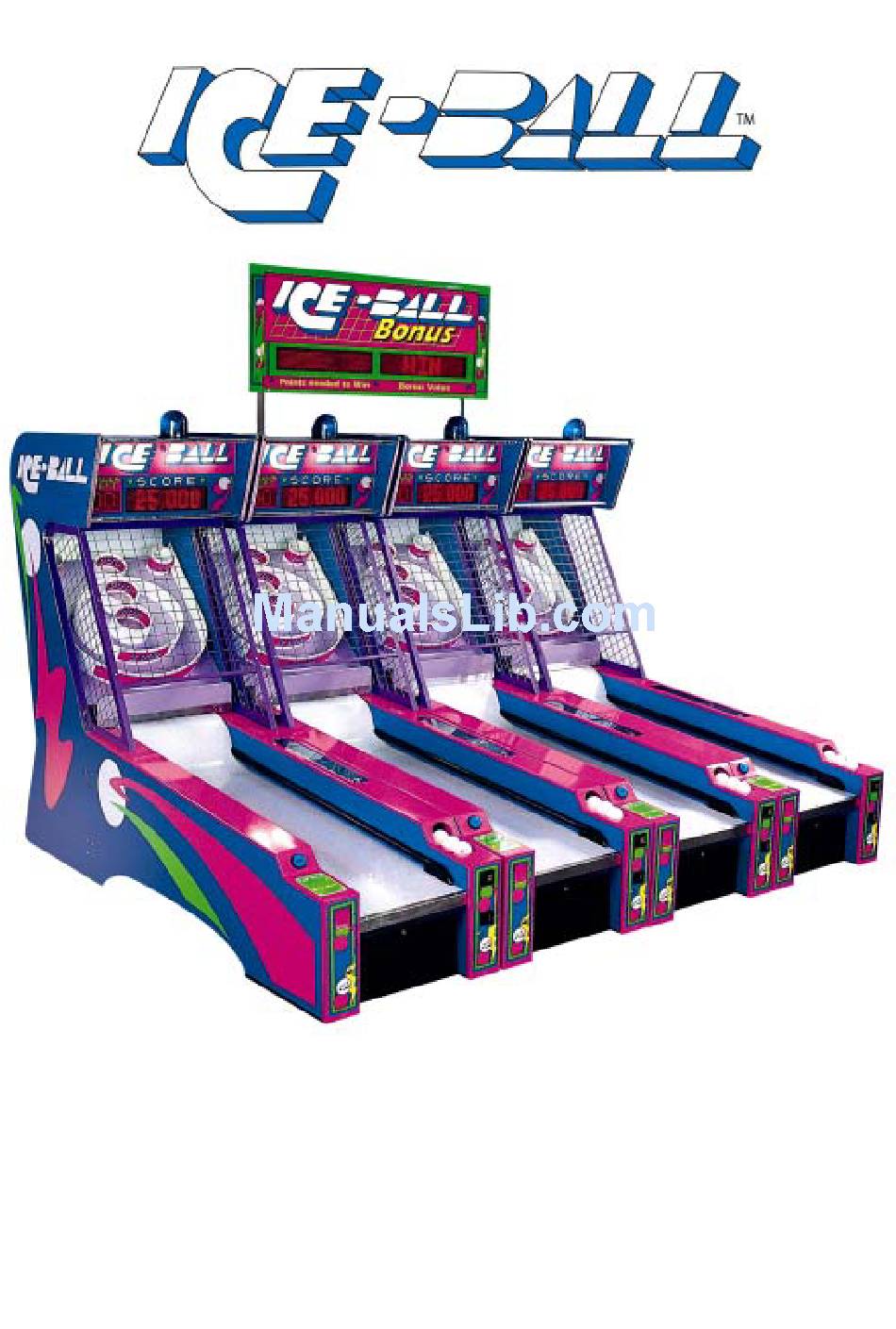

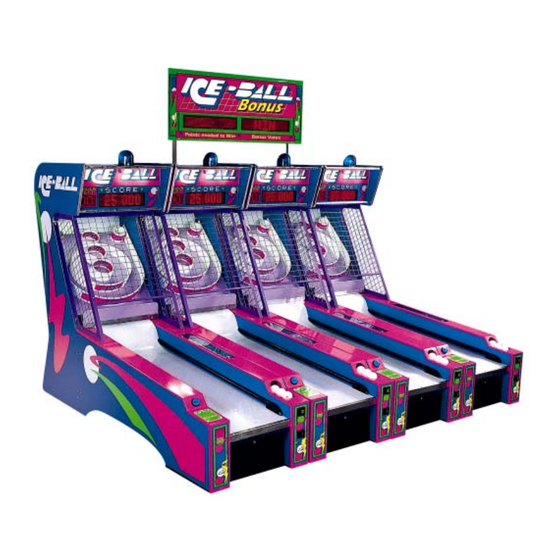

- Page 1 OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 SERVICE: 1–716–759–0360 FAX: 1–716–759–0884 E–MAIL: service@icegame.com WEBSITE: icegame.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION · GAME FEATURES · GAME PLAY ASSEMBLY · BEFORE YOU BEGIN · TOOLS NEEDED · INSTALLATION · SETTING A.C. LINE VOLTAGES · A.C. LINE VOLTAGE ADJUSTMENTS SET–UP / TESTING · SAFETY PRECAUTIONS · PROGRAMMING YOUR GAME ·... -
Page 3: Introduction
“Balls per game”. This feature allows the operator to control how many balls the game will normally Thank you for your purchase of the new ICE BALL" Alley deliver. This amount is adjustable from 1 to 20 balls per Roller game from I.C.E. -
Page 4: Assembly
ASSEMBLY Slide the front cabinet into position. Insert the large Allen BEFORE YOU BEGIN key into the holes on the sides of the front cabinet and rotate the Allen key 180° to lock the cabinet halves WARNING: WHEN INSTALLING THIS GAME, together. -
Page 5: Setting A.c. Line Voltages
ASSEMBLY • Snap the fuse holder assembly back into the SETTING A.C. LINE power module. VOLTAGES • Plug the power cord back into the receptacle in the power module, and into the wall outlet. The game comes with 4 available line voltage settings as described below. -
Page 6: Set-Up / Testing
SET–UP / GAME TESTING SAFETY PRECAUTIONS PROGRAMMING BUTTON (PGM / SW1) IMPORTANT: FAILURE TO FOLLOW THESE DIRECTIONS COULD CAUSE SERIOUS DAMAGE TO YOU OR YOUR GAME. This button is used to enter and exit the programming mode. Use this button to change game settings or to WARNING: WHEN INSTALLING THIS GAME, remotely change settings on the optional Jackpot Marquee. - Page 7 SET–UP / GAME TESTING TEST BUTTON MODE 00 (TEST / SW5) (VOLUME) This button is used for factory burn–in of the game This option is used to change the relative sound volume of electronics. It is also very helpful to be sure all game the game.
- Page 8 SET–UP / GAME TESTING MODE 06 MODE 08 (CREDIT BONUS) (EXTENDED PLAY POINTS) This option is used to create “Bonus Credits”. The way this When this mode is selected, the game will dispense option works is as follows: if a “3” is set, for every 3 coins additional balls when a pre–determined score is reached.
- Page 9 SET–UP / GAME TESTING MODE 12 MODE 16 (POINTS PER TICKET) (DEFAULT HIGH SCORE) This option adjusts the points needed to dispense a ticket. This mode sets the INITIAL high score. This value is the Setting a value of 30 will dispense 1 ticket for every 3,000 value displayed when the game is first powered up.* points scored.
-
Page 10: Testing
SET–UP / GAME TESTING If you wish, you can set values in the 100’s range (100, MODE 19 200, etc.) or in the 10’s range (10, 20, etc.). If you wish to (THEME PLAY ON) lower the value, use the following guide. Set a “0”... -
Page 11: Quick Troubleshooting
QUICK TROUBLESHOOTING GAME WILL NOT TAKE OR ADD MONEY CORRECTLY Micro switch not working or returning properly. Check and repair or replace as necessary. Game programming set–up incorrectly. Refer to service manual for proper settings. Bad harnessing or connector. Check w/ohm meter and repair if necessary. Bad Main P.C. - Page 12 QUICK TROUBLESHOOTING NO FLUORESCENT LIGHTING Bad connectors or harnessing. Check w/ohm meter and repair as necessary. Bad ballast transformer. Replace ballast transformer. Bad bulb. Replace bulb. No A.C. power to game. Check main fuses in power module. GAME WILL NOT RETAIN HIGH SCORE WHEN GAME TURNED OFF AND THEN BACK ON Programming set incorrectly.
-
Page 13: Repair
If light bulbs are suspected, swap them with one that is known to work to narrow the problem down to the bulb or The ICE BALL" game has been designed with MODULAR P.C. Board. repair in mind. The coin drawer and ticket drawer can be slid out and removed in their entirety to be worked on in another area if desired. - Page 14 GAME REPAIR Carefully scribe a mark when removing the solenoid to be ELECTRONIC REPAIR sure the replacement is properly located. Remove the hardware that secures the solenoid to the mounting plate. When re–assembling, be sure to use the same size cotter DISPLAY ASSEMBLY pin to retain the clevis pin, as this pin is needed to hold the spring to the solenoid assembly.
- Page 15 GAME REPAIR BALL RETURN SENSOR MAINTENANCE Turn off game power. Open cash drawer at least 6 inches. Maintenance is easy as the game requires very little Slide ball release cover from right hand side of game. service under normal use. To get the best out of the game, please perform the following as indicated: Sensor assembly is located at the rear of the ball return channel where the 2 cabinets meet.
-
Page 16: Electrical / Electronic Repair
PARTS LISTINGS MECHANICAL PARTS GRAPHICS & DECALS AR1001 Ball Rail AR7001 Display Panel AR1002 Ball Return Tray AR7002 Programming Decal AR1003 Rail Support Spacer AR7003 Coin Door Decal AR1004 Ball Release Lever Spring AR7004 Ticket Door Decal AR1005 Cash Box AR7008 Instruction Panel AR1007... - Page 18 Warranty I.C.E warrants all components in the ICE BALL" game to be free of defects in materials and workmanship for a period of ninety days from the date of purchase. This warranty does not cover items damaged due to normal wear and tear, subjected to abuse, improperly assembled by the end user, modified, repaired, or operated in a fashion other than that described in the service manual.
