Bimba STP-10-EIP Quick Start Manual

STP-10-EIP Quick Start Guide

Requirements

To begin, make sure you have the following equipment:
• A compatible Bimba DC stepper motor.
• A small flat blade screwdriver for tightening the connectors (included).
• A personal computer running Microsoft Windows 98, NT, Me, 2000, XP, Vista, 7, or 8.
• Bimba IQ Stepper software (available at www.bimba.com).
®
• A CAT5 network cable (not included).
• For more detailed information, please download and read the Bimba STP-10 Hardware Manual, available at www.bimba.com.

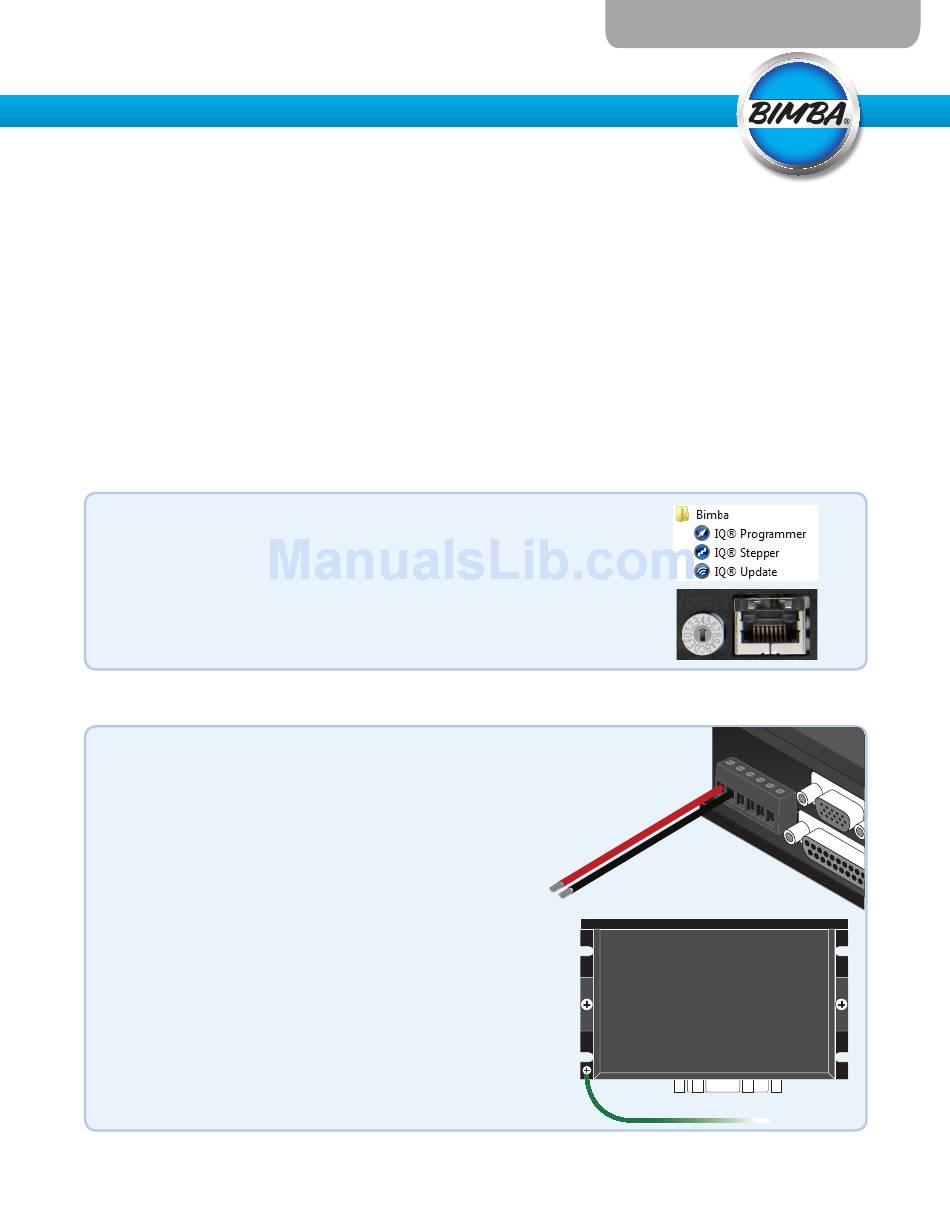

Step 1

a) Download and install the Bimba IQ
b) Launch the software by clicking:
Start / Programs / Bimba / IQ
c) Connect the drive to your PC using a standard CAT5 cable.
d) Select an appropriate IP address using the rotary switch. For more
information about network configurations and IP addressing, please
consult the Bimba STP-10 Hardware manual.

Step 2

a) Wire the drive to the DC power source.
(do not apply power until all connections to the drive have been made)
Note, the STP-10-EIP accepts DC voltages from 24-48Vdc.
If using an external fuse, we recommend the following:
STP-10-EIP: 3AG, 7 amp (Littlefuse 313007P)
See the STP-10 Hardware Manual for more information about
power supply and fuse selection.
b) Ensure a proper earth ground connection by using the screw on the
left side of the chassis.
Stepper software.
®
Stepper
®
Quick Start Guide
Connection Panel
